ME30A2403 Series

Manufacturer: SL POWER / Advanced Energy

Catalog

AC/DC DESKTOP ADAPTER 24V 32W

Part	Voltage - Input [Max]	Voltage - Input [Min]	No Load Power Consumption	Input Connector	Voltage - Output	Efficiency	Region Utilized	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Output Connector [diameter]	Output Connector [x]	Output Connector	Approval Agency	Current - Output (Max) [Max]	Applications	Cord Length	Cord Length	Input Type	Power (Watts)	Polarization	Form	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
SL POWER / Advanced Energy ME30A2403F01	264 VAC	90 VAC	100 mW	IEC 320-C14	24 V	Level VI	International	-20 ░C	50 °C	95.5 mm	54 mm	3.76 in	31 mm	1.22 in	2.13 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	CE	1.33 A	Medical	57 in	1.45 m	Cord (Sold Separately)	32 W	Positive Center	Desktop (Class I)
SL POWER / Advanced Energy ME30A2403N01	264 VAC	90 VAC	100 mW	IEC 320-C8	24 V	Level VI	International	-20 ░C	50 °C	95.5 mm	54 mm	3.76 in	31 mm	1.22 in	2.13 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	CE	1.33 A	Medical	57 in	1.45 m	Cord (Sold Separately)	32 W	Positive Center	Desktop (Class II)

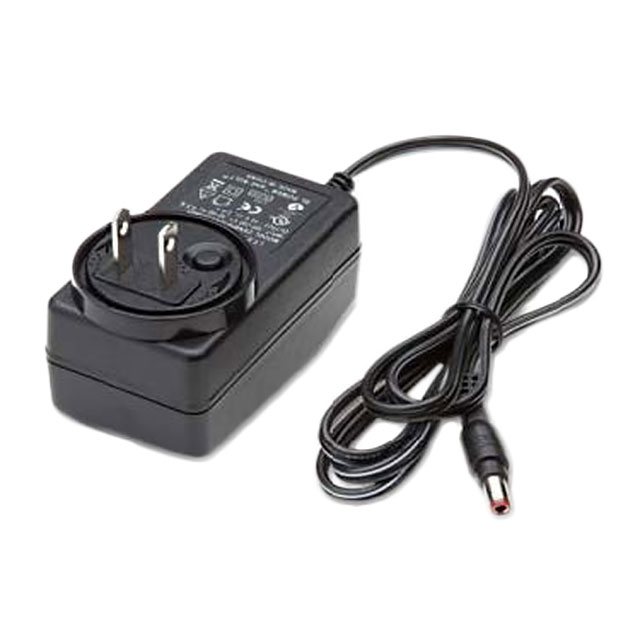

SL POWER / Advanced Energy ME30A2403B01	264 VAC	90 VAC	100 mW	NEMA 1-15P Multi-Blade	24 V	Level VI	North America	-20 ░C	50 °C			96 mm		33.6 mm	55 mm	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	CE	1.33 A	Medical	57 in	1.45 m	Fixed Blade Multi-Blade	32 W	Positive Center	Wall Mount	3.78 in	2.17 "	1.32 in
SL POWER / Advanced Energy ME30A2403Q01	264 VAC	90 VAC	100 mW	IEC 320-C18	24 V	Level VI	International	-20 ░C	70 °C	95.5 mm	54 mm	3.76 in	31 mm	1.22 in	2.13 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	CE	1.33 A	Medical	57 in	1.45 m	Cord (Sold Separately)	30 Watts	Positive Center	Desktop (Class II)
