TR9CE3000 Series

Catalog

AC/DC DESKTOP ADAPTER 12V 36W

Part	Power (Watts)	Input Type	Input Connector	Voltage - Output	Output Connector [diameter]	Output Connector [x]	Output Connector	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Approval Agency	Current - Output (Max) [Max]	No Load Power Consumption	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Region Utilized	Form	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Efficiency	Cord Length	Cord Length

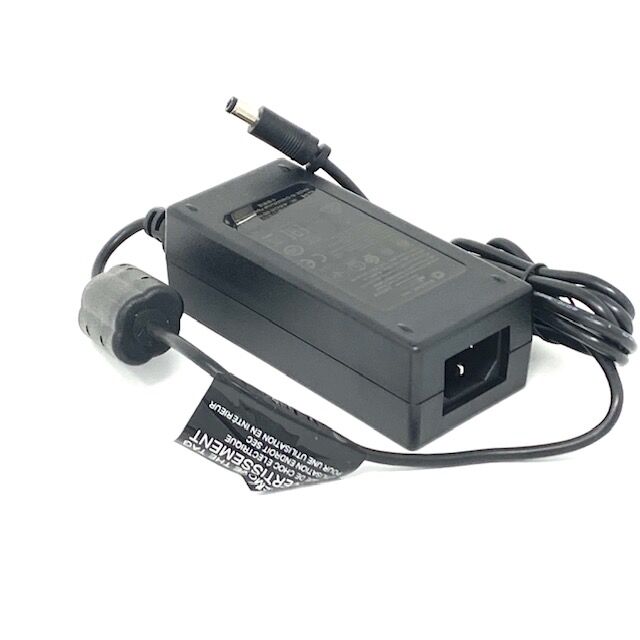

GlobTek, Inc. TR9CE3000L9PCIMR6B	36 W	Cord (Sold Separately)	IEC 320-C14	12 V	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	-10 °C	Positive Center	CB CCC CE EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	3 A	75 mW	Household Appliances ITE (Commercial) Medical	1.4 "	1.97 in	113.3 mm	50 mm	4.46 in	35.5 mm	International	Desktop (Class I)	264 VAC	90 VAC	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	CoC Tier 2 Level VI	1.2 m	47.2 in

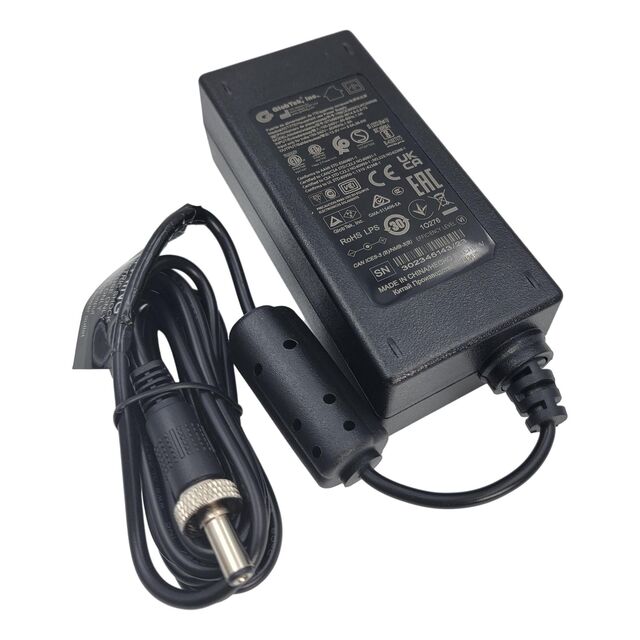

GlobTek, Inc. TR9CE3000CLWCIMR6B	36 W	Cord (Sold Separately)	IEC 320-C14	12 V	2.1 mm 5.5 mm	10 mm	Barrel Plug Locking	40 °C	-10 °C	Positive Center	CB CCC CE cETLus EAC ETL IEC LPS PSE RCM S-Mark UKCA Ukraine UL VCCI WEEE	3 A	75 mW	Household Appliances ITE (Commercial) Medical	1.4 "	1.97 in	113.3 mm	50 mm	4.46 in	35.5 mm	International	Desktop (Class I)	264 VAC	90 VAC	60335-1 60601-1 60950-1 62368-1	CoC Tier 2 Level V	1.83 m	72 in
