001031 Series
Manufacturer: Molex
Beta
⌘K
CONN HEADER VERT 5POS
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Insulation Material | Contact Shape | Insulation Color | Contact Length - Mating | Contact Length - Mating | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Fastening Type | Number of Positions | Contact Material | Contact Length - Post | Contact Length - Post | Contact Type | Material Flammability Rating | Termination | Number of Positions Loaded | Mounting Type | Shrouding | Insulation Height | Insulation Height | Connector Type | Overall Contact Length | Overall Contact Length | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

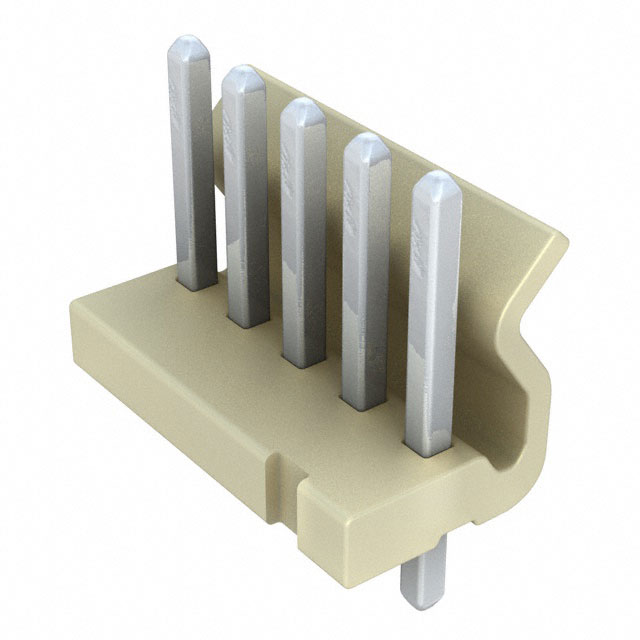

 Molex | 200 µin | 5.08 µm | Automotive General Purpose Industrial Medical Telecommunications | Nylon 6/6 Polyamide (PA66) | Square | Natural | 0.419 in | 10.65 mm | Board to Cable/Wire | 5.08 µm | 200 µin | 1 | Friction Lock | 5 | Brass | 0.142 in | 3.6 mm | Male Pin | UL94 V-2 | Solder | All | Through Hole | Shrouded - 1 Wall | 0.508 in | 12.9 mm | Header | 0.687 in | 17.45 mm | Tin |

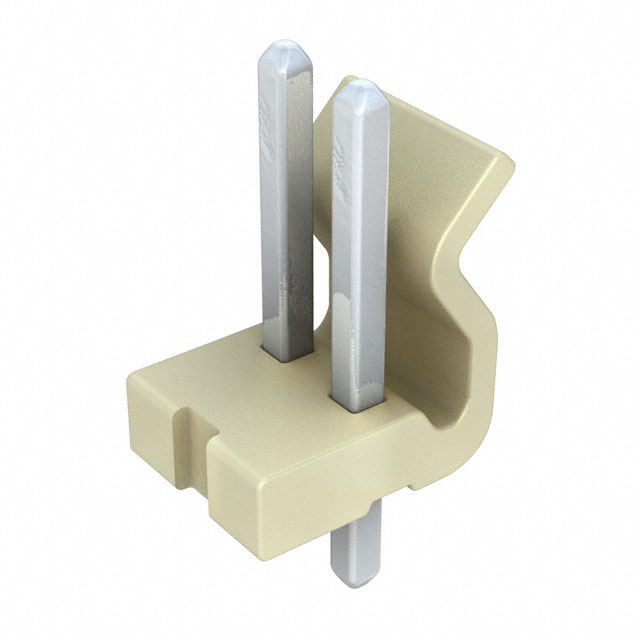

 Molex | 200 µin | 5.08 µm | Automotive General Purpose Industrial Medical Telecommunications | Nylon 6/6 Polyamide (PA66) | Square | Natural | 0.419 in | 10.65 mm | Board to Cable/Wire | 5.08 µm | 200 µin | 1 | Friction Lock | 2 | Brass | 0.142 in | 3.6 mm | Male Pin | UL94 V-2 | Solder | All | Through Hole | Shrouded - 1 Wall | 0.508 in | 12.9 mm | Header | 0.687 in | 17.45 mm | Tin |

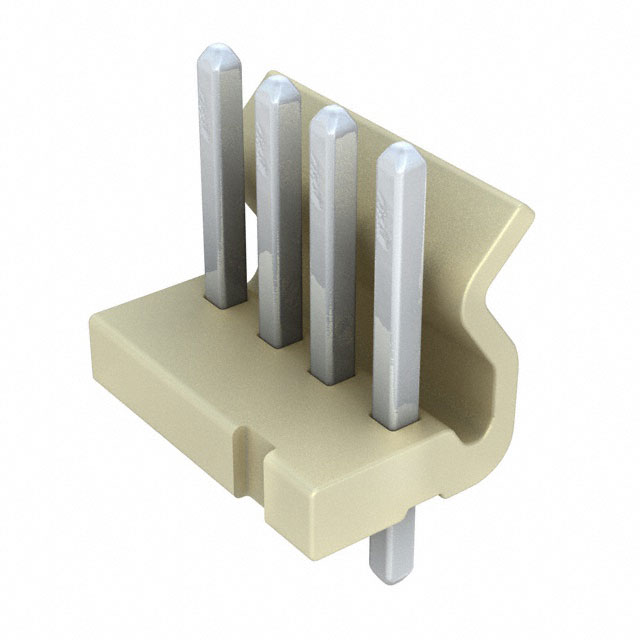

 Molex | 200 µin | 5.08 µm | Automotive General Purpose Industrial Medical Telecommunications | Nylon 6/6 Polyamide (PA66) | Square | Natural | 0.419 in | 10.65 mm | Board to Cable/Wire | 5.08 µm | 200 µin | 1 | Friction Lock | 4 | Brass | 0.142 in | 3.6 mm | Male Pin | UL94 V-2 | Solder | All | Through Hole | Shrouded - 1 Wall | 0.508 in | 12.9 mm | Header | 0.687 in | 17.45 mm | Tin |
