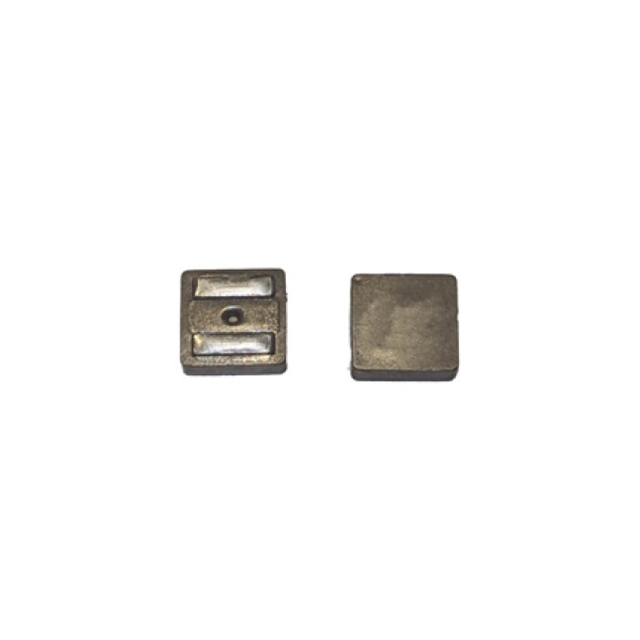

EXL1V0402 Series

Catalog

FIXED IND 3.3UH 5.5A 38.3MOHM SM

Part	Inductance Frequency - Test	Frequency - Self Resonant	Shielding	Mounting Type	Tolerance	Inductance	Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Core	Package / Case	Current - Saturation (Isat)
Eaton - Electronics Division EXL1V0402-3R3-R	100 kHz	26 MHz	Shielded	Surface Mount	20 %	3.3 µH	Molded	125 °C	-40 C	0.173 in	4.4 mm	4.4 mm	0.173 in	5.5 Amps	38.3 mOhm	2.1 mm	0.083 in	Iron Powder	Nonstandard	4.4 A
Eaton - Electronics Division EXL1V0402-1R0-R	100 kHz	56 MHz	Shielded	Surface Mount	20 %	1 µH	Molded	125 °C	-40 C	0.173 in	4.4 mm	4.4 mm	0.173 in	11 A	11.7 mOhm	2.1 mm	0.083 in	Iron Powder	Nonstandard	8 A
