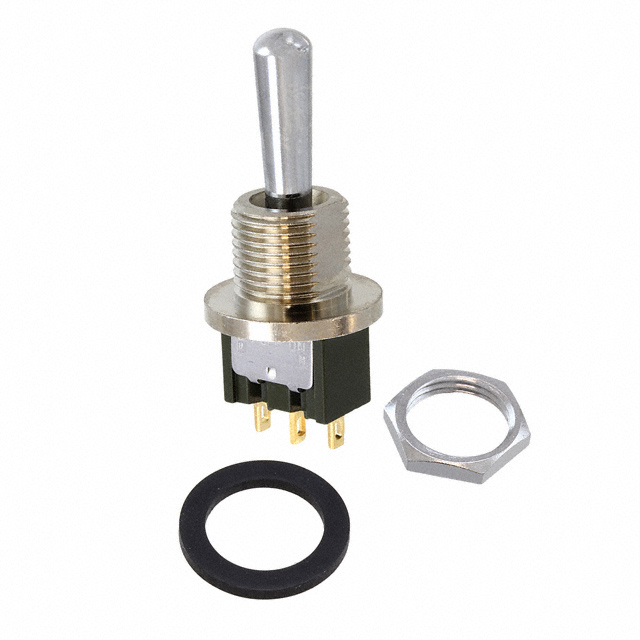

M2018B2 Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Panel Cutout Dimensions [diameter]	Termination Style	Mounting Type	Voltage Rating - AC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Features	Switch Function	Bushing Thread	Voltage Rating - DC	Illumination	Current Rating (Amps)	Actuator Length [x]	Actuator Type	Ingress Protection
NKK Switches M2018B2B1W01	25000 Steps	Brass Chrome Plated	12.5 mm	Solder Lug	Panel Mount	125 V	SPDT	85 °C	-30 ░C	Epoxy Sealed Terminals	Mom-Off-Mom	M12 x 1	30 V	Non-Illuminated	3 A 6 A	17.5 mm	Standard Round

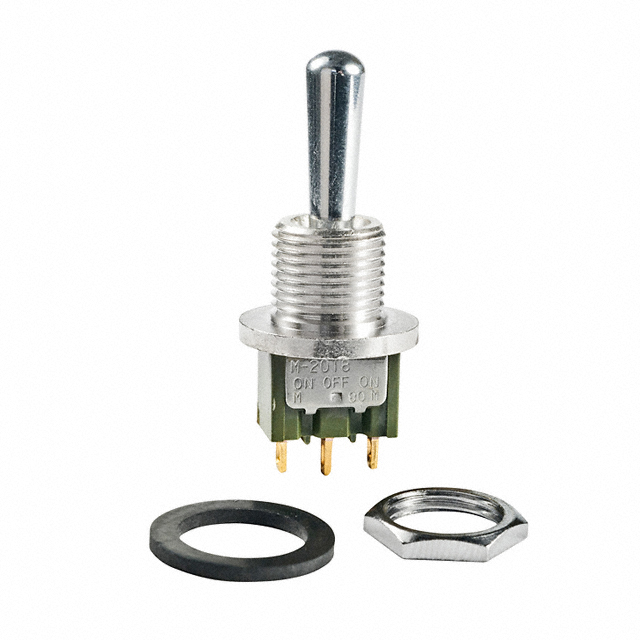

NKK Switches M2018B2B3G01	50000 Cycles	Brass Chrome Plated	12.5 mm	Solder Lug	Panel Mount	28 V	SPDT	85 °C	-30 ░C	Epoxy Sealed Terminals	Mom-Off-Mom	M12 x 1	28 V	Non-Illuminated	0.4 VA	17.5 mm	Standard Round	IP67 - Dust Tight Waterproof

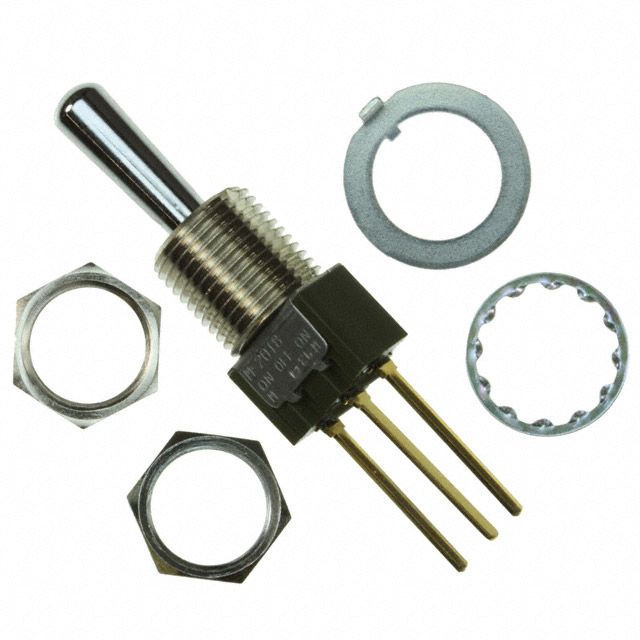

NKK Switches M2018B2B1G06	50000 Cycles	Brass Chrome Plated	12.5 mm	Wire Wrap	Panel Mount	28 V	SPDT	85 °C	-30 ░C	Epoxy Sealed Terminals	Mom-Off-Mom	M12 x 1	28 V	Non-Illuminated	0.4 VA	17.5 mm	Standard Round
NKK Switches M2018B2B3W01-VF	25000 Steps	Brass Chrome Plated	12.5 mm	Solder Lug	Panel Mount	125 V	SPDT	85 °C	-30 ░C	Green Cap	Mom-Off-Mom	M12 x 1	30 V	Non-Illuminated	3 A 6 A	18.5 mm	Standard Round with Cap	IP67 - Dust Tight Waterproof
NKK Switches M2018B2B1W01-VB	25000 Steps	Brass Chrome Plated	12.5 mm	Solder Lug	Panel Mount	125 V	SPDT	85 °C	-30 ░C	White Cap	Mom-Off-Mom	M12 x 1	30 V	Non-Illuminated	3 A 6 A	17.5 mm	Standard Round with Cap
NKK Switches M2018B2B3A01	25000 Steps	Brass Chrome Plated	12.5 mm	Solder Lug	Panel Mount	125 V	SPDT	85 °C	-30 ░C	Epoxy Sealed Terminals	Mom-Off-Mom	M12 x 1	30 V	Non-Illuminated	3 A 6 A	17.5 mm	Standard Round	IP67 - Dust Tight Waterproof
NKK Switches M2018B2B3W01-VB	25000 Steps	Brass Chrome Plated	12.5 mm	Solder Lug	Panel Mount	125 V	SPDT	85 °C	-30 ░C	White Cap	Mom-Off-Mom	M12 x 1	30 V	Non-Illuminated	3 A 6 A	18.5 mm	Standard Round with Cap	IP67 - Dust Tight Waterproof
NKK Switches M2018B2B1W03-AT401H	25000 Steps	Brass Chrome Plated	12.5 mm	PC Pin	Panel Mount	125 V	SPDT	85 °C	-30 ░C		Mom-Off-Mom	M12 x 1	30 V	Non-Illuminated	3 A 6 A	17.5 mm	Standard Round

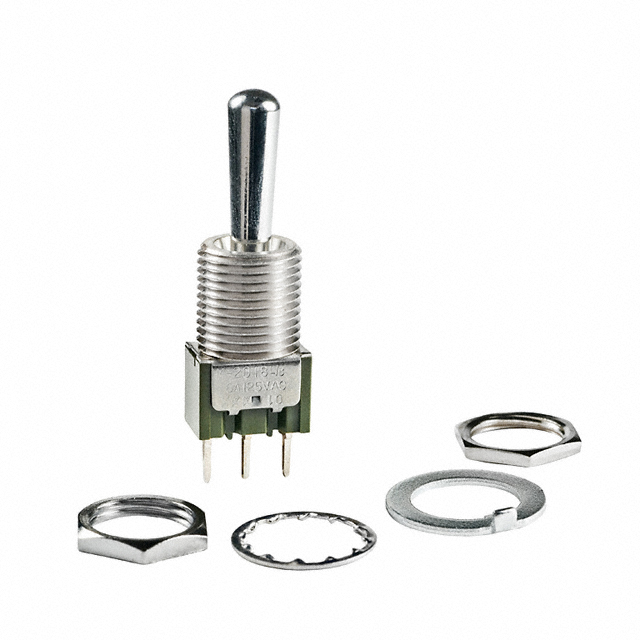

NKK Switches M2018B2B1W03	25000 Steps	Brass Chrome Plated	12.5 mm	PC Pin	Panel Mount	125 V	SPDT	85 °C	-30 ░C	Epoxy Sealed Terminals	Mom-Off-Mom	M12 x 1	30 V	Non-Illuminated	3 A 6 A	17.5 mm	Standard Round
NKK Switches M2018B2B1W01-VA	25000 Steps	Brass Chrome Plated	12.5 mm	Solder Lug	Panel Mount	125 V	SPDT	85 °C	-30 ░C	Black Cap	Mom-Off-Mom	M12 x 1	30 V	Non-Illuminated	3 A 6 A	17.5 mm	Standard Round with Cap
