054104 Series

Manufacturer: Molex

Catalog

CONN FPC CONNECTOR SKT 45 POS 0.5MM SOLDER RA SMD EASY-ON™ T/R

Part	Locking Feature	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Housing Color	Termination	Current Rating (Amps)	Number of Positions	Actuator Color	Operating Temperature [Max]	Operating Temperature [Min]	Features	Cable End Type	Housing Material	Actuator Material	FFC, FCB Thickness	Voltage Rating	Connector/Contact Type	Material Flammability Rating	Flat Flex Type	Mating Cycles	Contact Material	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness

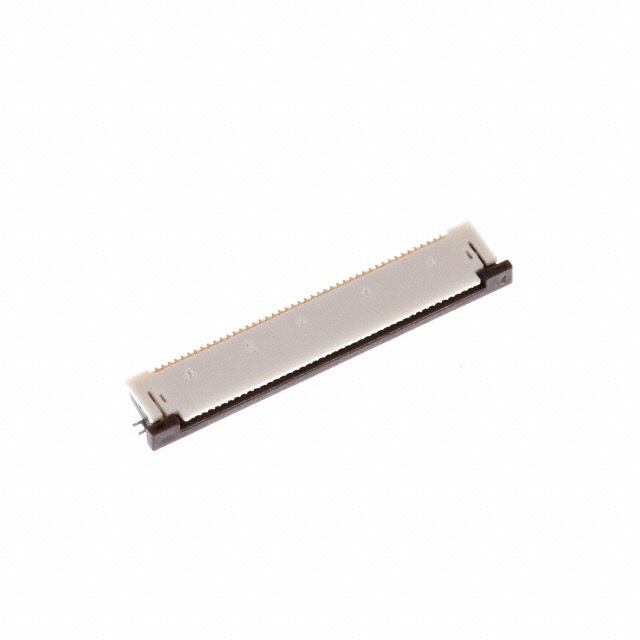

Molex 0541044531	Slide Lock	Gold	0.5 mm	0.02 in	Surface Mount Right Angle	White	Solder	0.5 A	45	Brown	85 °C	-20 C	Solder Retention Zero Insertion Force (ZIF)	Straight Tapered	Glass Filled Nylon 4/6 Polyamide (PA46)	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	50 V	Contacts Top	UL94 V-0	FFC FPC	20	Phosphor Bronze	0.079 in	2 mm

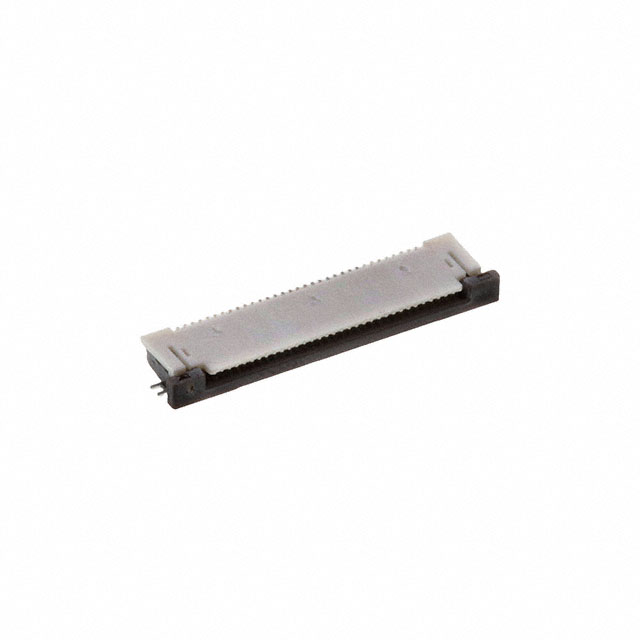

Molex 0541043333	Slide Lock	Tin Bismuth	0.5 mm	0.02 in	Surface Mount Right Angle	White	Solder	0.5 A	33	Brown	85 °C	-40 °C	Solder Retention Zero Insertion Force (ZIF)	Straight Tapered	Polyamide (PA) Nylon Glass Filled	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	50 V	Contacts Top	UL94 V-0	FFC FPC	20	Phosphor Bronze	0.079 in	2 mm	39.4 Áin	1 Ám
Molex 0541043331	Slide Lock	Gold	0.5 mm	0.02 in	Surface Mount Right Angle	White	Solder	0.5 A	33	Brown	85 °C	-20 C	Solder Retention Zero Insertion Force (ZIF)	Straight Tapered	Glass Filled Nylon 4/6 Polyamide (PA46)	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	50 V	Contacts Top	UL94 V-0	FFC FPC	20	Phosphor Bronze	0.079 in	2 mm

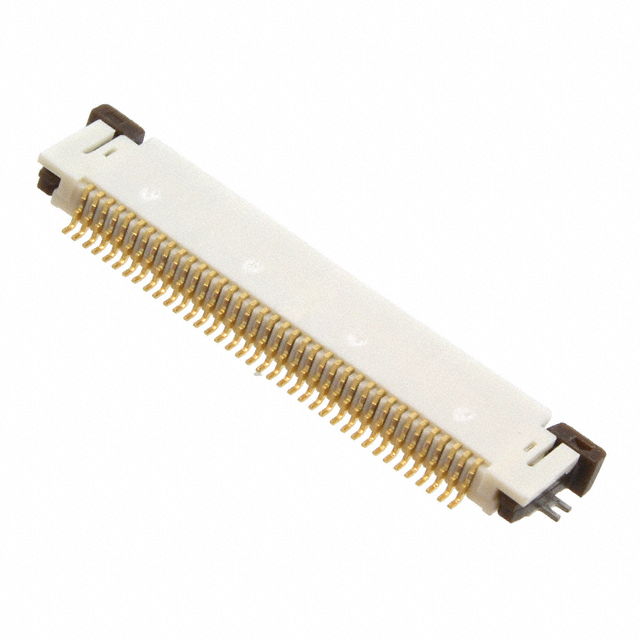

Molex 0541043831	Slide Lock	Gold	0.5 mm	0.02 in	Surface Mount Right Angle	White	Solder	0.5 A	38	Brown	85 °C	-20 C	Solder Retention Zero Insertion Force (ZIF)	Straight Tapered	Glass Filled Nylon 4/6 Polyamide (PA46)	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	50 V	Contacts Top	UL94 V-0	FFC FPC	20	Phosphor Bronze	0.079 in	2 mm
Molex 0541043233	Slide Lock	Tin Bismuth	0.5 mm	0.02 in	Surface Mount Right Angle	White	Solder	0.5 A		Brown	85 °C	-40 °C	Solder Retention Zero Insertion Force (ZIF)	Straight Tapered	Polyamide (PA) Nylon Glass Filled	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	50 V	Contacts Top	UL94 V-0	FFC FPC	20	Phosphor Bronze	0.079 in	2 mm	39.4 Áin	1 Ám

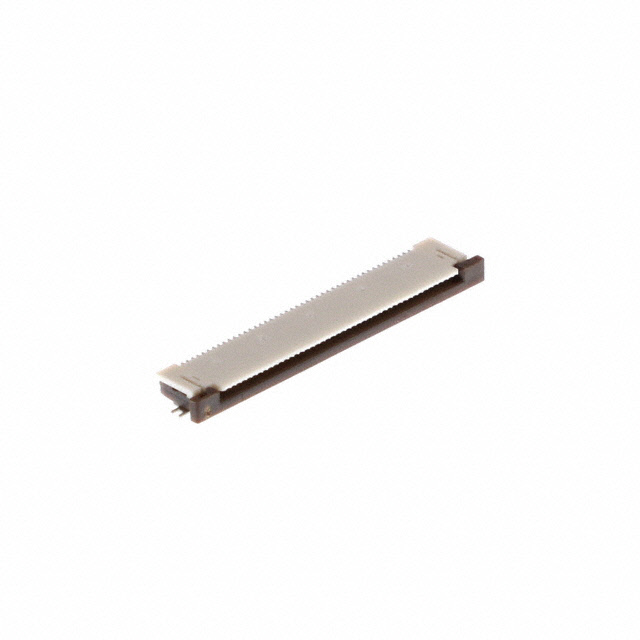

Molex 0541044596	Slide Lock	Tin Bismuth	0.5 mm	0.02 in	Surface Mount Right Angle		Solder	0.5 A	45		85 °C	-20 C	Solder Retention Zero Insertion Force (ZIF)	Straight Tapered	Polyamide (PA46) Nylon 4/6	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	50 V	Contacts Top	UL94 V-0	FFC FPC	20	Phosphor Bronze	0.079 in	2 mm

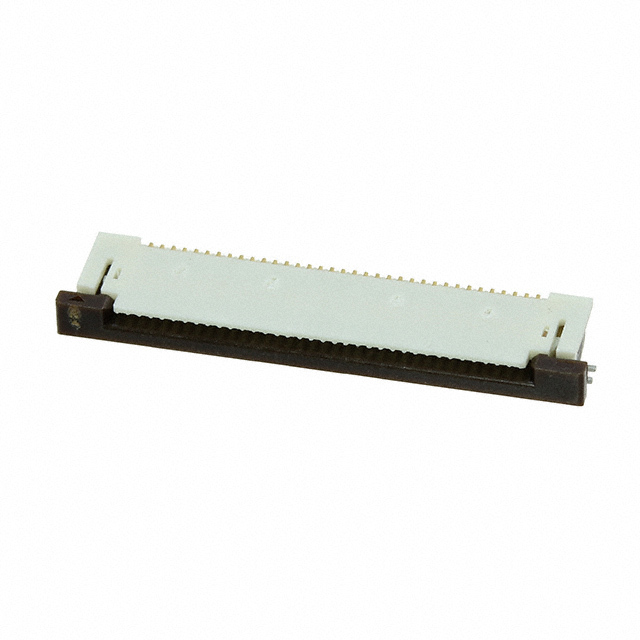

Molex 0541043531	Slide Lock	Gold	0.5 mm	0.02 in	Surface Mount Right Angle	White	Solder	0.5 A	35	Brown	85 °C	-20 C	Solder Retention Zero Insertion Force (ZIF)	Straight Tapered	Glass Filled Nylon 4/6 Polyamide (PA46)	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	50 V	Contacts Top	UL94 V-0	FFC FPC	20	Phosphor Bronze	0.079 in	2 mm

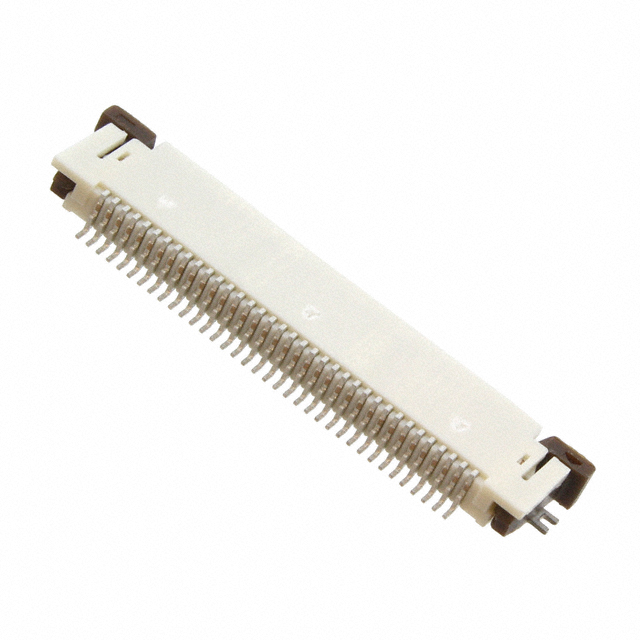

Molex 0541043696	Slide Lock	Tin Bismuth	0.5 mm	0.02 in	Surface Mount Right Angle		Solder	0.5 A	36		85 °C	-20 C	Solder Retention Zero Insertion Force (ZIF)	Straight Tapered	Polyamide (PA46) Nylon 4/6	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	50 V	Contacts Top	UL94 V-0	FFC FPC	20	Phosphor Bronze	0.079 in	2 mm

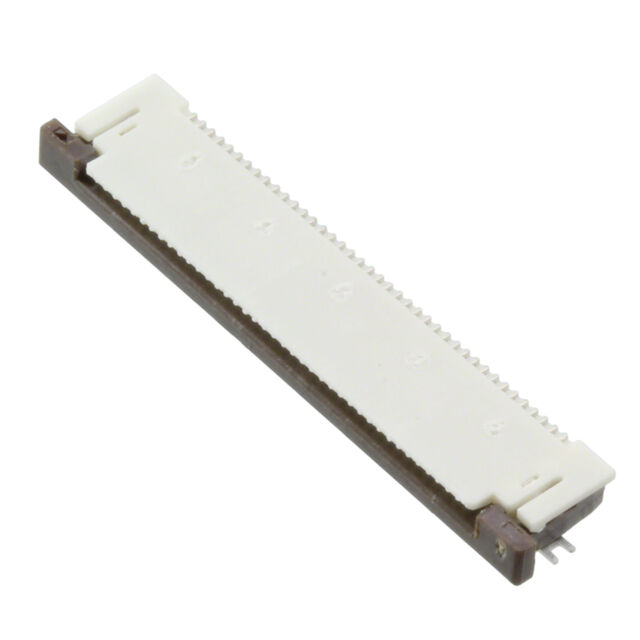

Molex 0541044033	Slide Lock	Tin Bismuth	0.5 mm	0.02 in	Surface Mount Right Angle	White	Solder	0.5 A	40	Brown	85 °C	-40 °C	Solder Retention Zero Insertion Force (ZIF)	Straight Tapered	Polyamide (PA) Nylon Glass Filled	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	50 V	Contacts Top	UL94 V-0	FFC FPC	20	Phosphor Bronze	0.079 in	2 mm	39.4 Áin	1 Ám

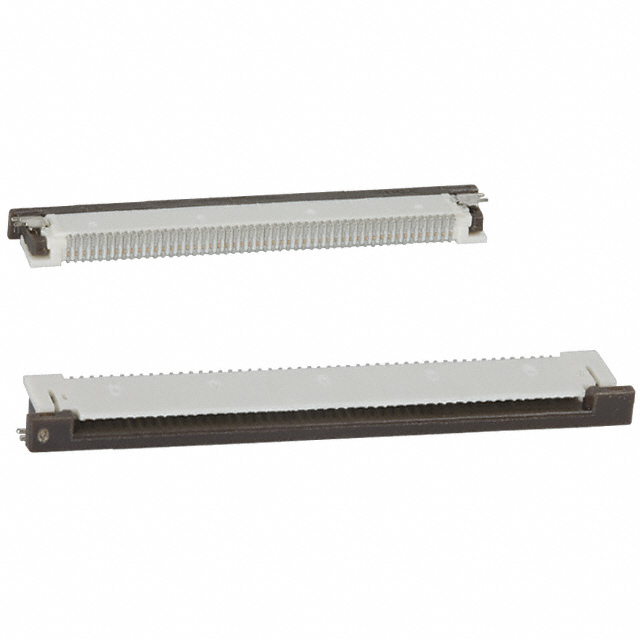

Molex 0541045096	Slide Lock	Tin Bismuth	0.5 mm	0.02 in	Surface Mount Right Angle		Solder	0.5 A	50		85 °C	-20 C	Solder Retention Zero Insertion Force (ZIF)	Straight Tapered	Polyamide (PA46) Nylon 4/6	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	50 V	Contacts Top	UL94 V-0	FFC FPC	20	Phosphor Bronze	0.079 in	2 mm
