087834 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 40POS 2.54MM

Part	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Length - Mating	Contact Length - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Insulation Material	Connector Type	Insulation Color	Shrouding	Contact Shape	Contact Finish - Mating	Insulation Height	Insulation Height	Applications	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Fastening Type	Pitch - Mating	Pitch - Mating	Termination	Number of Positions Loaded	Number of Positions	Number of Rows	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions
Molex 0878344019	12.45 mm	0.49 "	Through Hole	6.1 mm	0.24 in	0.135 in	3.43 mm	Copper Alloy	Polybutylene Terephthalate (PBT)	Header	Black	Shrouded - 4 Wall	Square	Gold	0.365 in	9.27 mm	Automotive General Purpose Lighting Medical Telecommunications	Tin	5.11 µin	0.13 µm	Board to Cable/Wire	Keying Slot	2.54 mm	0.1 in	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Solder	All	40	2	Male Pin	74.8 Áin	1.9 Ám
Molex 0878341041	12.45 mm	0.49 "	Through Hole	6.1 mm	0.24 in	0.135 in	3.43 mm	Copper Alloy	Nylon Polyamide (PA)	Header	Natural	Shrouded - 4 Wall	Square	Gold	0.365 in	9.27 mm	Automotive General Purpose Lighting Medical Telecommunications	Tin	5.11 µin	0.13 µm	Board to Cable/Wire	Keying Slot	2.54 mm	0.1 in	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Solder	All	10	2	Male Pin		98.4 µin	2.5 µm

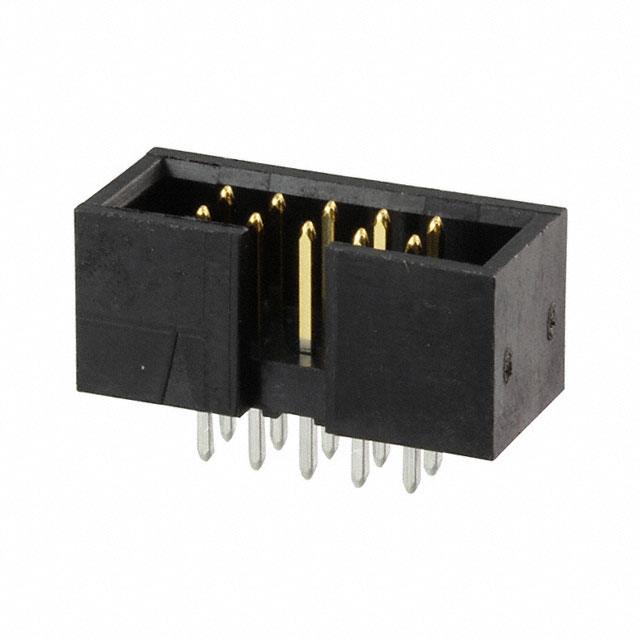

Molex 0878341019	12.45 mm	0.49 "	Through Hole	6.1 mm	0.24 in	0.135 in	3.43 mm	Copper Alloy	Polybutylene Terephthalate (PBT)	Header	Black	Shrouded - 4 Wall	Square	Gold	0.365 in	9.27 mm	Automotive General Purpose Lighting Medical Telecommunications	Tin	5.11 µin	0.13 µm	Board to Cable/Wire	Keying Slot	2.54 mm	0.1 in	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Solder	All	10	2	Male Pin	74.8 Áin	1.9 Ám
Molex 0878345019	12.45 mm	0.49 "	Through Hole	6.1 mm	0.24 in	0.135 in	3.43 mm	Copper Alloy	Polybutylene Terephthalate (PBT)	Header	Black	Shrouded - 4 Wall	Square	Gold	0.365 in	9.27 mm	Automotive General Purpose Lighting Medical Telecommunications	Tin	5.11 µin	0.13 µm	Board to Cable/Wire	Keying Slot	2.54 mm	0.1 in	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Solder	All	50	2	Male Pin	74.8 Áin	1.9 Ám

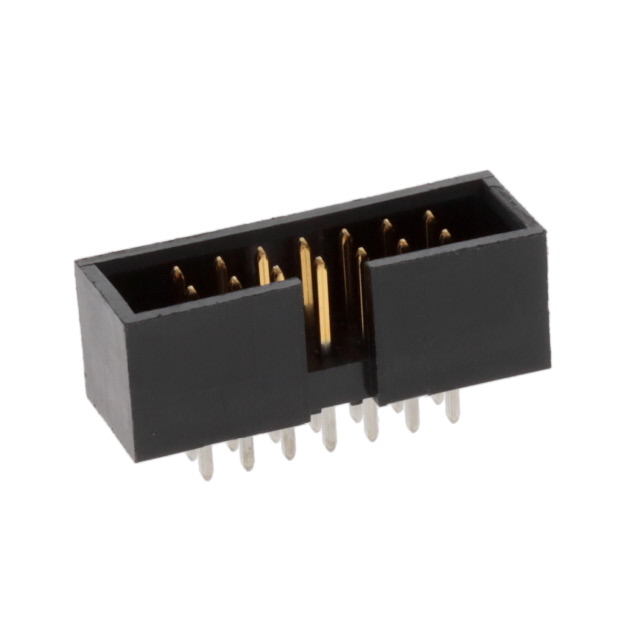

Molex 0878341419	12.45 mm	0.49 "	Through Hole	6.1 mm	0.24 in	0.135 in	3.43 mm	Copper Alloy	Polybutylene Terephthalate (PBT)	Header	Black	Shrouded - 4 Wall	Square	Gold	0.365 in	9.27 mm	Automotive General Purpose Lighting Medical Telecommunications	Tin	5.11 µin	0.13 µm	Board to Cable/Wire	Keying Slot	2.54 mm	0.1 in	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Solder	All	14	2	Male Pin	74.8 Áin	1.9 Ám
Molex 0878341811	12.45 mm	0.49 "	Through Hole	6.1 mm	0.24 in	0.135 in	3.43 mm	Copper Alloy	Glass Filled Nylon 4/6 Polyamide (PA46)	Header	Beige	Shrouded - 4 Wall	Square	Gold	0.365 in	9.27 mm	Automotive General Purpose Lighting Medical Telecommunications	Tin	5.11 µin	0.13 µm	Board to Cable/Wire	Board Guide Keying Slot	2.54 mm	0.1 in	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Solder	All	18	2	Male Pin		98.4 µin	2.5 µm
Molex 0878341641	12.45 mm	0.49 "	Through Hole	6.1 mm	0.24 in	0.135 in	3.43 mm	Copper Alloy	Nylon Polyamide (PA)	Header	Natural	Shrouded - 4 Wall	Square	Gold	0.365 in	9.27 mm	Automotive General Purpose Lighting Medical Telecommunications	Tin	5.11 µin	0.13 µm	Board to Cable/Wire	Keying Slot	2.54 mm	0.1 in	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Solder	All		2	Male Pin		98.4 µin	2.5 µm	16
Molex 0878341619	12.45 mm	0.49 "	Through Hole	6.1 mm	0.24 in	0.135 in	3.43 mm	Copper Alloy	Polybutylene Terephthalate (PBT)	Header	Black	Shrouded - 4 Wall	Square	Gold	0.365 in	9.27 mm	Automotive General Purpose Lighting Medical Telecommunications	Tin	5.11 µin	0.13 µm	Board to Cable/Wire	Keying Slot	2.54 mm	0.1 in	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Solder	All		2	Male Pin	74.8 Áin	1.9 Ám		16

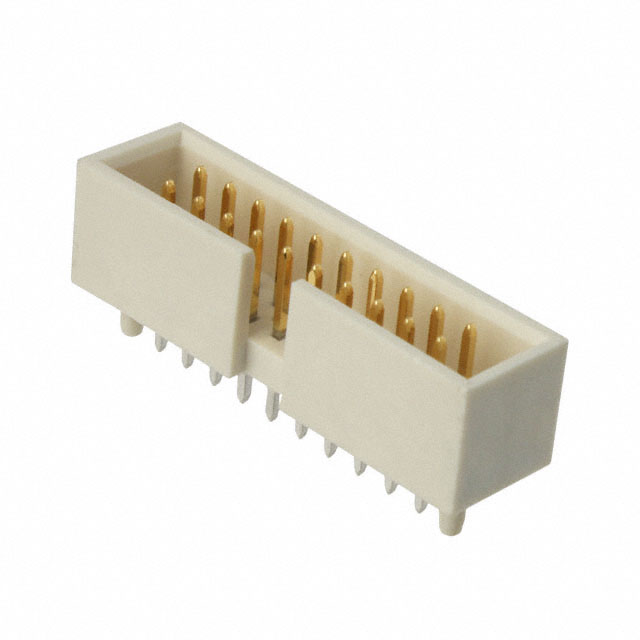

Molex 0878342011	12.45 mm	0.49 "	Through Hole	6.1 mm	0.24 in	0.135 in	3.43 mm	Copper Alloy	Glass Filled Nylon 4/6 Polyamide (PA46)	Header	Beige	Shrouded - 4 Wall	Square	Gold	0.365 in	9.27 mm	Automotive General Purpose Lighting Medical Telecommunications	Tin	5.11 µin	0.13 µm	Board to Cable/Wire	Board Guide Keying Slot	2.54 mm	0.1 in	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Solder	All	20	2	Male Pin		98.4 µin	2.5 µm
Molex 0878340411	12.45 mm	0.49 "	Through Hole	6.1 mm	0.24 in	0.135 in	3.43 mm	Copper Alloy	Glass Filled Nylon 4/6 Polyamide (PA46)	Header	Beige	Shrouded - 4 Wall	Square	Gold	0.365 in	9.27 mm	Automotive General Purpose Lighting Medical Telecommunications	Tin	5.11 µin	0.13 µm	Board to Cable/Wire	Board Guide Keying Slot	2.54 mm	0.1 in	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Solder	All	4	2	Male Pin		98.4 µin	2.5 µm
