A81F1C-P Series
Manufacturer: ODU
Beta
⌘K

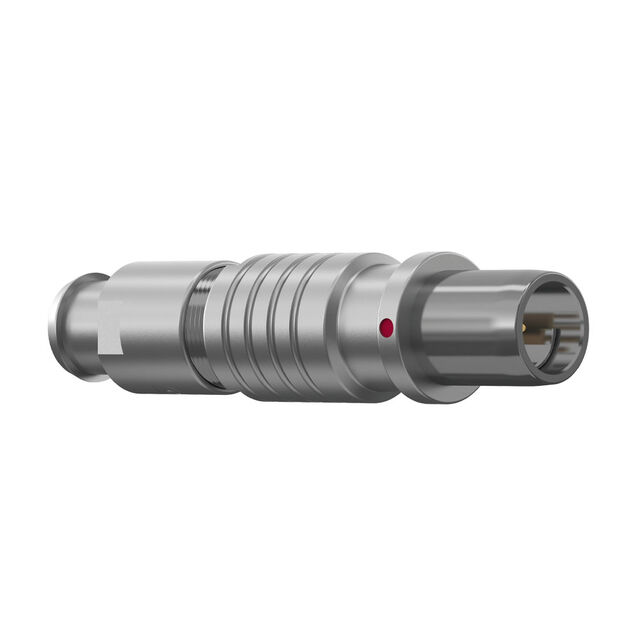

ODU MINI-SNAP PLUG, STY 8, SZ 1,
| Part | Shielding | Shell Material | Backshell Material, Plating | Current Rating (Amps) | Contact Material | Number of Positions | Mounting Type | Orientation [custom] | Cable Opening [Min] | Cable Opening [Max] | Connector Type | Fastening Type | Shell Finish | Material Flammability Rating | Primary Material | Features | Applications | Contact Finish - Mating | Ingress Protection | Insert Material | Shell Size - Insert | Voltage Rating | Color | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Unshielded | Brass | Brass Chrome over Nickel | 12 Amps | Brass | 2 | Free Hanging (In-Line) | 1 | 0.079 in 2 mm | 0.098 in 2.5 mm | Plug Male Pins | Push-Pull | Chrome over Nickel | UL94 V-0 | Metal | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | Gold | IP50 - Dust Protected | Polyetheretherketone (PEEK) | 1 | 550 VDC | Silver | 120 °C | -40 C |
