ED750 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

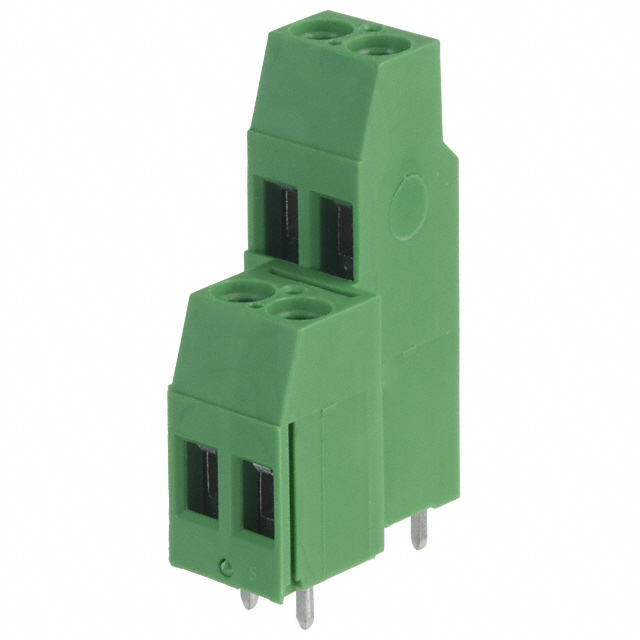

TERM BLK 2POS SIDE ENTRY 5MM PCB
| Part | Housing Material | Screw Thread | Contact Material - Plating | Torque - Screw | Torque - Screw | Clamp Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Positions Per Level | Mounting Type | Current | Number of Levels | Mating Orientation | Wire Termination | Wire Gauge [Max] | Wire Gauge [Min] | Color | Pitch | Pitch | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Polyamide (PA) Nylon | M3 | Brass | 4.4 Lb-In | 0.5 Nm | Copper | -30 ░C | 105 ░C | 2 | Through Hole | 20 A | 2 | Horizontal with Board | Screw - Rising Cage Clamp | 30 AWG | 12 AWG | Green | 0.197 in | 5 mm | 300 VDC |
