PFS35 Series

Catalog

THICK FILM RESISTORS - SMD PFS35 0.27 OHM 1% 100PPM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Tolerance	Temperature Coefficient	Supplier Device Package	Package / Case	Power (Watts)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Resistance	Number of Terminations [custom]	Composition

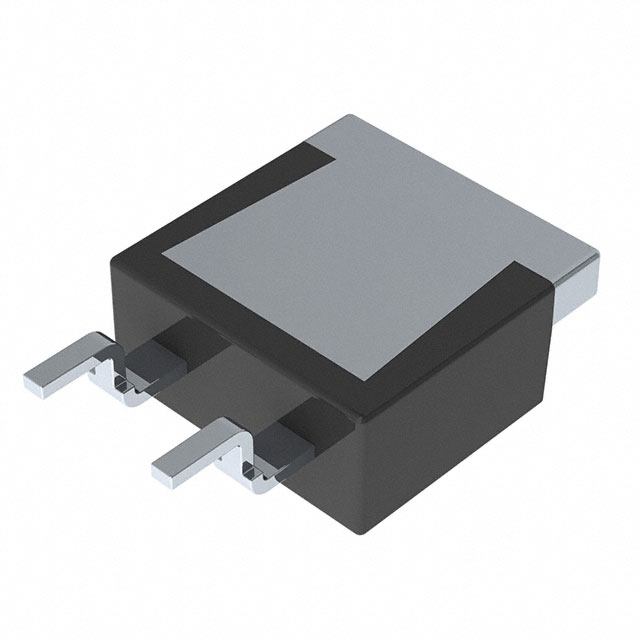

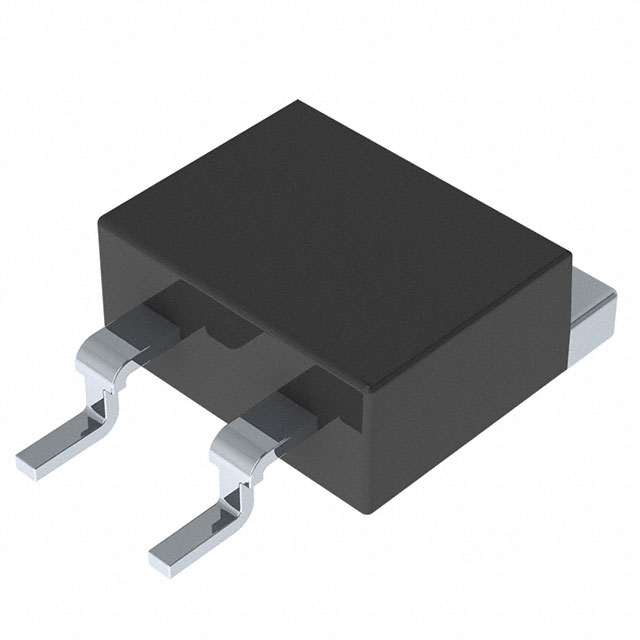

Bourns Inc. PFS35-0R27F1	155 C	-55 C	Current Sense Pulse Withstanding	1 %	100 ppm/°C	DPak in TO-263 Housing	Non-Standard DPAK	35 W	0.185 "	4.7 mm	10.1 mm	10.3 mm	0.398 in	0.406 in	270 mOhms	2	Thin Film
Bourns Inc. PFS35-5R1F1	155 C	-55 C	Current Sense Pulse Withstanding	1 %	100 ppm/°C	DPak in TO-263 Housing	Non-Standard DPAK	35 W	0.185 "	4.7 mm	10.1 mm	10.3 mm	0.398 in	0.406 in	5.1 Ohms	2	Thick Film
Bourns Inc. PFS35-1RF1	155 C	-55 C	Current Sense Pulse Withstanding	1 %	100 ppm/°C	DPak in TO-263 Housing	Non-Standard DPAK	35 W	0.185 "	4.7 mm	10.1 mm	10.3 mm	0.398 in	0.406 in	1 Ohms	2	Thick Film Thin Film
Bourns Inc. PFS35-15RF1	155 C	-55 C	Current Sense Pulse Withstanding	1 %	50 ppm/░C	DPak in TO-263 Housing	Non-Standard DPAK	35 W	0.185 "	4.7 mm	10.1 mm	10.3 mm	0.398 in	0.406 in	15 Ohms	2	Thick Film
Bourns Inc. PFS35-27RF1	155 C	-55 C	Current Sense Pulse Withstanding	1 %	50 ppm/░C	DPak in TO-263 Housing	Non-Standard DPAK	35 W	0.185 "	4.7 mm	10.1 mm	10.3 mm	0.398 in	0.406 in	27 Ohms	2	Thin Film
