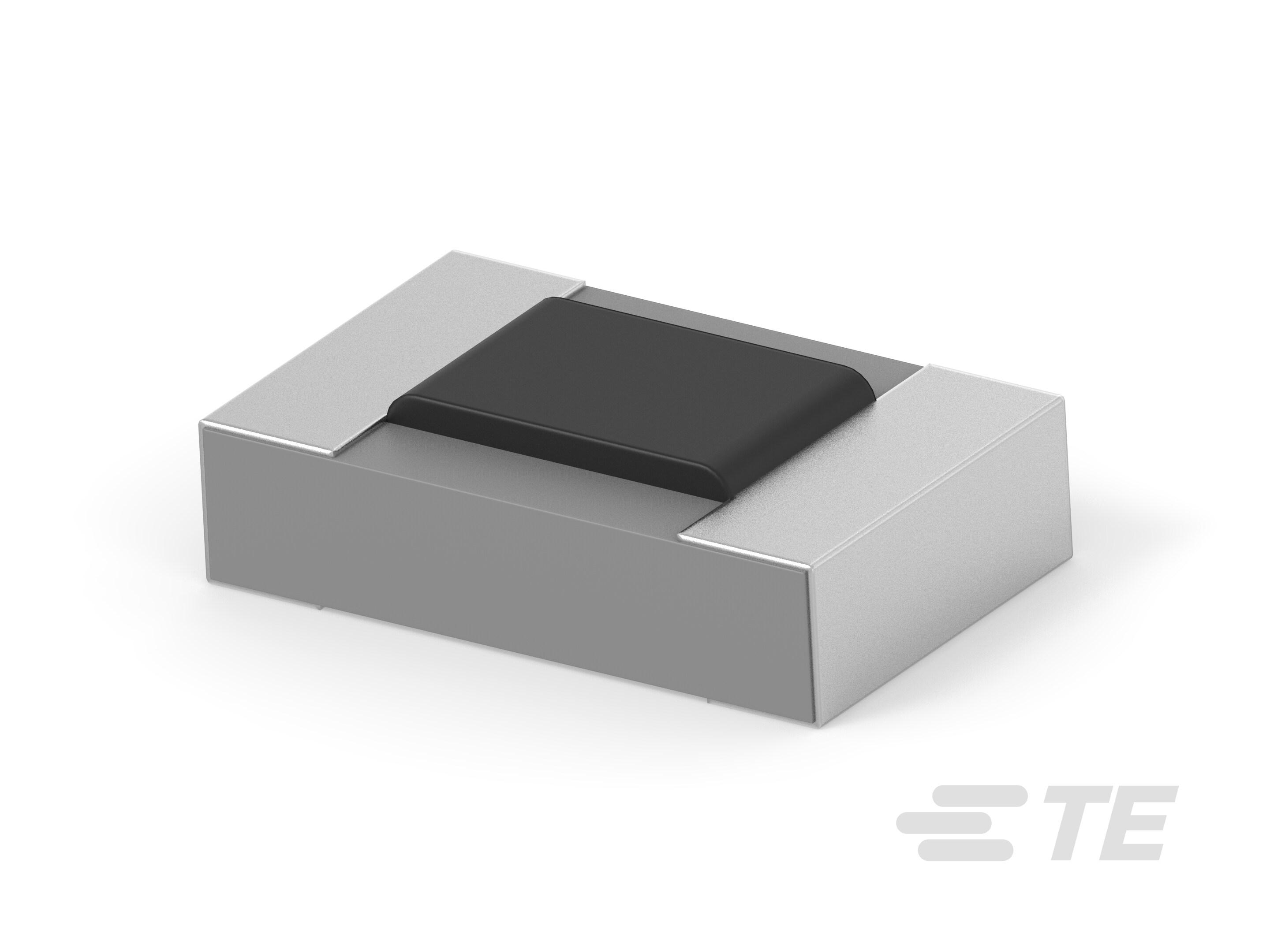

NEOHM TCT Series

Catalog

RES SMD 12KOHM 0%/-10% 1/8W 1206

Part	Tolerance [Min]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance	Number of Terminations [custom]	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Composition	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Power (Watts)
TE Connectivity AMP Connectors TCR1206N12K	-10 %	1206 (3216 Metric)	0.026 in	0.65 mm	12 kOhms	2	200 ppm/°C	-55 C	125 °C	Thick Film	1206	0.063 "	0.126 "	3.2 mm	1.6 mm	0.125 W	0.125 W
TE Connectivity AMP Connectors TCR1206N22K	-10 %	1206 (3216 Metric)	0.026 in	0.65 mm	22 kOhms	2	200 ppm/°C	-55 C	125 °C	Thick Film	1206	0.063 "	0.126 "	3.2 mm	1.6 mm	0.125 W	0.125 W
TE Connectivity AMP Connectors TCR0805N200K	-10 %	0805	0.026 in	0.65 mm	200000 Ohms	2	200 ppm/°C	-55 C	125 °C	Thick Film	0805	0.049 "	0.079 in	2 mm	1.25 mm	0.1 W	0.1 W
TE Connectivity AMP Connectors TCR0805N1M5	-10 %	0805	0.026 in	0.65 mm	1.5 MOhms	2	200 ppm/°C	-55 C	125 °C	Thick Film	0805	0.049 "	0.079 in	2 mm	1.25 mm	0.1 W	0.1 W
TE Connectivity AMP Connectors TCR1206N13K	-10 %	1206 (3216 Metric)	0.026 in	0.65 mm	13 kOhms	2	200 ppm/°C	-55 C	125 °C	Thick Film	1206	0.063 "	0.126 "	3.2 mm	1.6 mm	0.125 W	0.125 W
TE Connectivity AMP Connectors TCR0805N240K	-10 %	0805	0.026 in	0.65 mm	240 kOhms	2	200 ppm/°C	-55 C	125 °C	Thick Film	0805	0.049 "	0.079 in	2 mm	1.25 mm	0.1 W	0.1 W
TE Connectivity AMP Connectors TCR0805N910K	-10 %	0805	0.026 in	0.65 mm	910 kOhms	2	200 ppm/°C	-55 C	125 °C	Thick Film	0805	0.049 "	0.079 in	2 mm	1.25 mm	0.1 W	0.1 W
