6288 Series
Manufacturer: KYOCERA AVX
Beta
⌘K
FFC / FPC BOARD CONNECTOR, 0.5 MM, 50 CONTACTS, RECEPTACLE, 6288 SERIES, SURFACE MOUNT, BOTTOM
| Part | Current Rating (Amps) | Locking Feature | Connector/Contact Type | FFC, FCB Thickness | Voltage Rating | Cable End Type | Number of Positions | Pitch | Pitch | Features | Contact Finish | Mounting Type | Termination | Height Above Board | Height Above Board | Housing Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Flat Flex Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

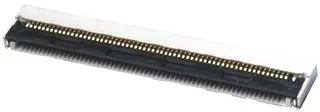

 KYOCERA AVX | 400 mA | Flip Lock | Contacts Bottom | 0.3 mm | 50 V | Tabbed | 50 | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | Gold | Right Angle Surface Mount | Solder | 2 mm | 0.079 in | Plastic | Copper Alloy | -40 C | 105 ░C | FFC FPC |

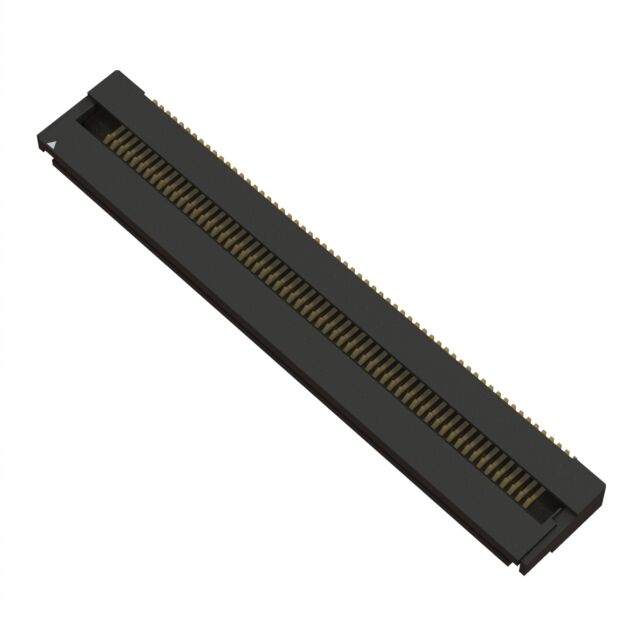

 KYOCERA AVX | 0.5 A | Flip Lock | Contacts Bottom | 0.3 mm | 50 V | Tabbed | 60 | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | Gold | Right Angle Surface Mount | Solder | 2 mm | 0.079 in | Thermoplastic | Copper Alloy | -40 C | 125 °C | FFC FPC |
 KYOCERA AVX | 0.5 A | Flip Lock | Contacts Bottom | 0.3 mm | 50 V | Tabbed | 22 | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | Gold | Right Angle Surface Mount | Solder | 2 mm | 0.079 in | Thermoplastic | Copper Alloy | -40 C | 125 °C | FFC FPC |

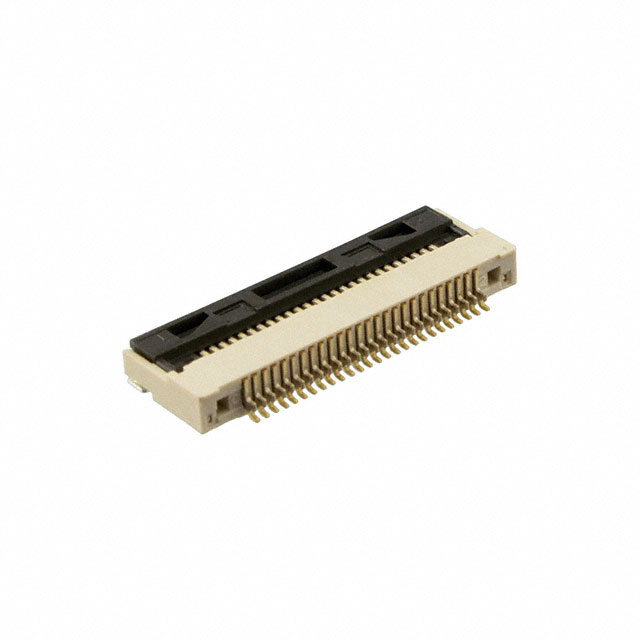

 KYOCERA AVX | 400 mA | Flip Lock | Contacts Bottom | 0.3 mm | 50 V | Tabbed | 26 | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | Gold | Right Angle Surface Mount | Solder | 2 mm | 0.079 in | Plastic | Copper Alloy | -40 C | 105 ░C | FFC FPC |
 KYOCERA AVX | Flip Lock | Contacts Bottom | 0.3 mm | 50 V | Tabbed | 14 | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | Gold | Right Angle Surface Mount | Solder | 2 mm | 0.079 in | Plastic | Copper Alloy | -40 C | 105 ░C | FFC FPC | |

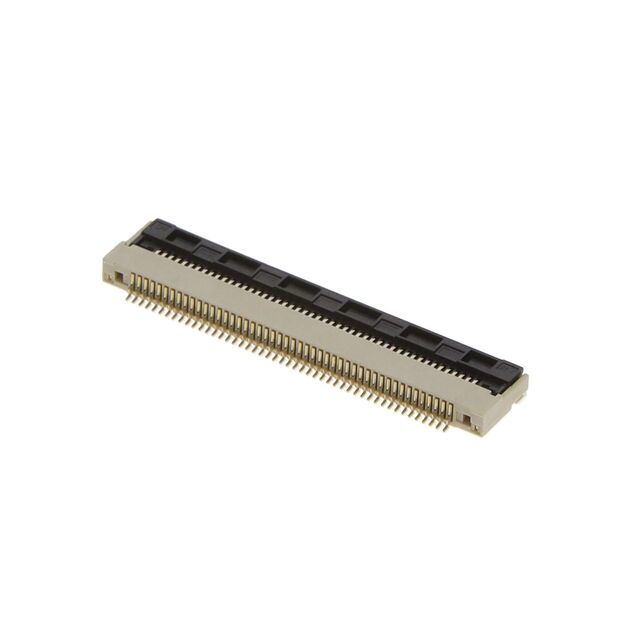

 KYOCERA AVX | 0.5 A | Flip Lock | Contacts Bottom | 0.3 mm | 50 V | Tabbed | 48 | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | Gold | Right Angle Surface Mount | Solder | 2 mm | 0.079 in | Thermoplastic | Copper Alloy | -40 C | 125 °C | FFC FPC |

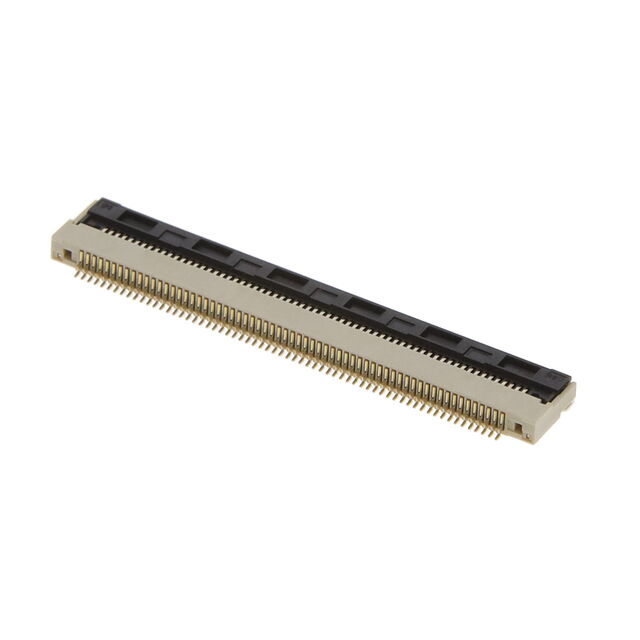

 KYOCERA AVX | 0.5 A | Flip Lock | Contacts Bottom | 0.3 mm | 50 V | Tabbed | 64 | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | Gold | Right Angle Surface Mount | Solder | 2 mm | 0.079 in | Thermoplastic | Copper Alloy | -40 C | 125 °C | FFC FPC |
