CBM-6015 Series

Catalog

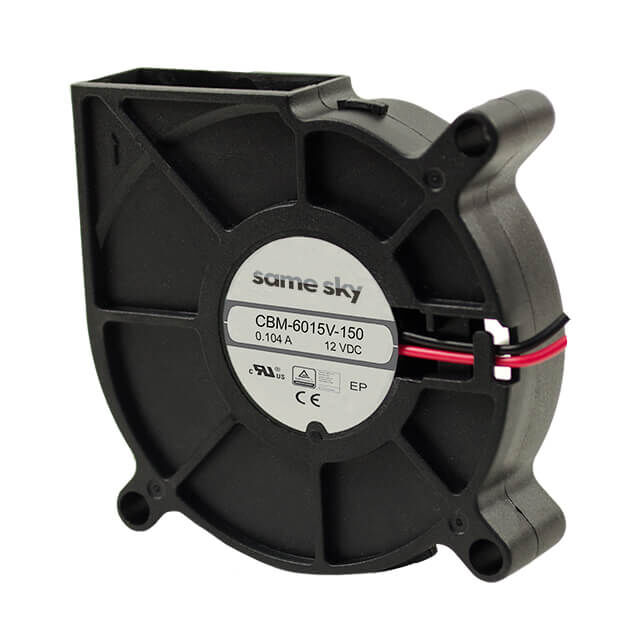

FAN BLOWER 60X15MM 12VDC WIRE

Part	Termination	Noise	Features	Operating Temperature [Max]	Operating Temperature [Min]	Fan Type	Approval Agency	Weight	Weight	Air Flow	Air Flow	Power (Watts)	Voltage - Rated	Static Pressure	Static Pressure	Width [y]	RPM	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Current Rating (Amps)
Same Sky (Formerly CUI Devices) CBM-6015V-150	2 Wire Leads	40.2 dB(A)	Auto Restart	70 °C	-10 °C	Blower	CE cURus TUV	35.83 g	0.079 lb	0.16 m³/min	5.7 CFM	1.25 W	12 VDC	109.6 Pa	0.44 in H2O	15 mm	5000 RPM	60 mm	Square/Rounded	60 mm
Same Sky (Formerly CUI Devices) CBM-6015V-150	2 Wire Leads	40.2 dB(A)	Auto Restart	70 °C	-10 °C	Blower	CE cURus TUV	35.83 g	0.079 lb	0.16 m³/min	5.7 CFM	1.25 W	12 VDC	109.6 Pa	0.44 in H2O	15 mm	5000 RPM	60 mm	Square/Rounded	60 mm	4.5 V	13.8 VDC	Polybutylene Terephthalate (PBT)	70000 Hrs	0.104 A
Same Sky (Formerly CUI Devices) CBM-6015V-144	2 Wire Leads	36 dB	Auto Restart	70 °C	-10 °C	Blower	CE cURus TUV	35.83 g	0.079 lb	0.143 m³/min	5.1 CFM		12 VDC	82.2 Pa	0.33 in H2O	15 mm	4400 RPM	60 mm	Square/Rounded	60 mm	4.5 V	13.8 VDC	Polybutylene Terephthalate (PBT)	70000 Hrs	78 mA
Same Sky (Formerly CUI Devices) CBM-6015V-144	2 Wire Leads	36 dB	Auto Restart	70 °C	-10 °C	Blower	CE cURus TUV	35.83 g	0.079 lb	0.143 m³/min	5.1 CFM		12 VDC	82.2 Pa	0.33 in H2O	15 mm	4400 RPM	60 mm	Square/Rounded	60 mm	4.5 V	13.8 VDC	Polybutylene Terephthalate (PBT)	70000 Hrs	78 mA
