SN65LVDS31-EP Series

400-Mbps LVDS quad high speed differential driver

Catalog

400-Mbps LVDS quad high speed differential driver

Part	Protocol	Package / Case	Package / Case [x]	Package / Case [y]	Supplier Device Package	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Secondary Attributes	Primary Attributes	Supplied Contents	Function	Utilized IC / Part
Texas Instruments SN65LVDS31DRG4	LVDS	16-SOIC	0.154 in	3.9 mm	16-SOIC	4	0	3.6 V	3 V	400 Mbps	Surface Mount	Driver	85 °C	-40 °C

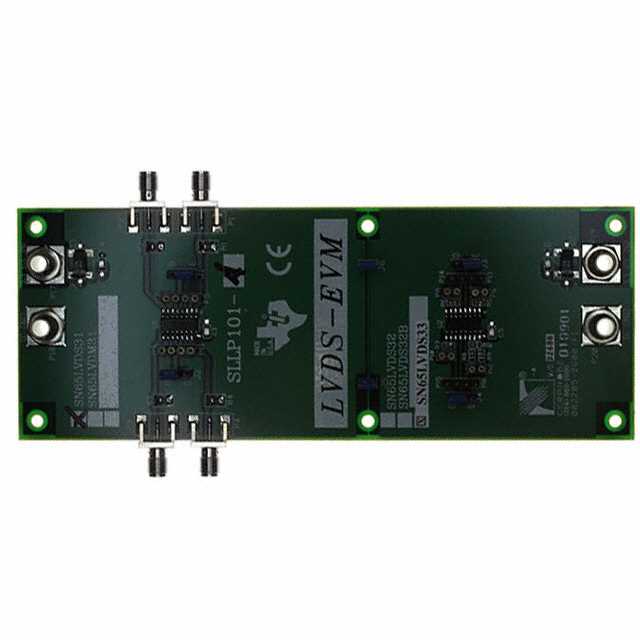

Texas Instruments SN65LVDS31-33EVM												Interface			4 Female Banana Jacks 4 SMA Connectors	1	Board(s)	LVDS	SN65LVDS31 SN65LVDS33
Texas Instruments SN65LVDS31DR	LVDS	16-SOIC	0.154 in	3.9 mm	16-SOIC	4	0	3.6 V	3 V	400 Mbps	Surface Mount	Driver	85 °C	-40 °C

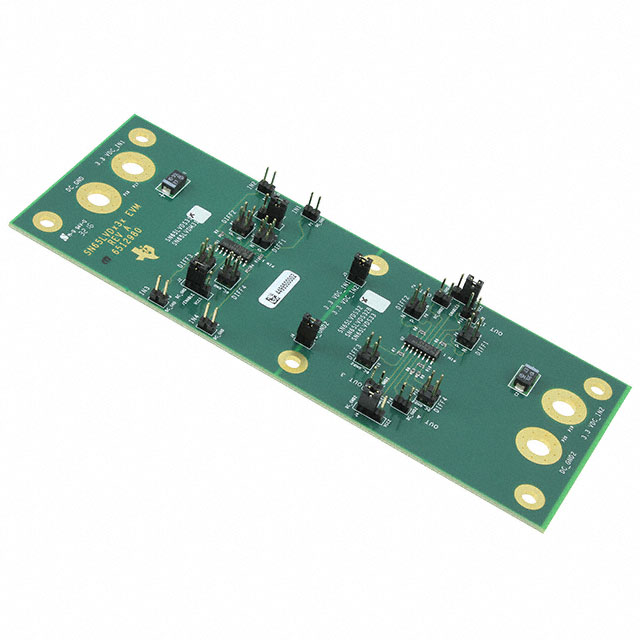

Texas Instruments SN65LVDS31-32EVM												Interface					Board(s)	LVDS Serial to Parallel	SN65LVDS31 SN65LVDS32
Texas Instruments SN65LVDS31D	LVDS	16-SOIC	0.154 in	3.9 mm	16-SOIC	4	0	3.6 V	3 V	400 Mbps	Surface Mount	Driver	85 °C	-40 °C

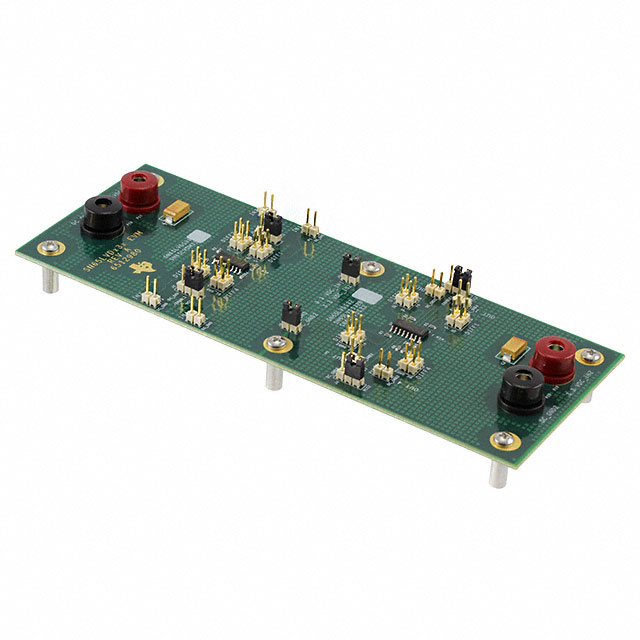

Texas Instruments SN65LVDS31-32BEVM												Interface					Board(s)	LVDS Serial to Parallel	SN65LVDS31 SN65LVDS32B
Texas Instruments SN65LVDS31PWR	LVDS	16-TSSOP	0.173 in	4.4 mm	16-TSSOP	4	0	3.6 V	3 V	400 Mbps	Surface Mount	Driver	85 °C	-40 °C
Texas Instruments SN65LVDS31PW	LVDS	16-TSSOP	0.173 in	4.4 mm	16-TSSOP	4	0	3.6 V	3 V	400 Mbps	Surface Mount	Driver	85 °C	-40 °C
Texas Instruments SN65LVDS31MDREP	LVDS	16-SOIC	0.154 in	3.9 mm	16-SOIC	4	0	3.6 V	3 V	400 Mbps	Surface Mount	Driver	125 °C	-55 °C

Catalog

400-Mbps LVDS quad high speed differential driver

Key Features

• Meet or Exceed the Requirements of ANSI TIA/EIA-644 StandardLow-Voltage Differential Signaling With Typical Output Voltage of 350 mV and 100-Ω LoadTypical Output Voltage Rise and Fall Times of 500 ps (400 Mbps)Typical Propagation Delay Times of 1.7 nsOperate From a Single 3.3-V SupplyPower Dissipation 25 mW Typical Per Driver at 200 MHzDriver at High-Impedance When Disabled or With VCC= 0Bus-Terminal ESD Protection Exceeds 8 kVLow-Voltage TTL (LVTTL) Logic Input LevelsPin Compatible With AM26LS31, MC3487, and µA9638Cold Sparing for Space and High-Reliability Applications Requiring RedundancyMeet or Exceed the Requirements of ANSI TIA/EIA-644 StandardLow-Voltage Differential Signaling With Typical Output Voltage of 350 mV and 100-Ω LoadTypical Output Voltage Rise and Fall Times of 500 ps (400 Mbps)Typical Propagation Delay Times of 1.7 nsOperate From a Single 3.3-V SupplyPower Dissipation 25 mW Typical Per Driver at 200 MHzDriver at High-Impedance When Disabled or With VCC= 0Bus-Terminal ESD Protection Exceeds 8 kVLow-Voltage TTL (LVTTL) Logic Input LevelsPin Compatible With AM26LS31, MC3487, and µA9638Cold Sparing for Space and High-Reliability Applications Requiring Redundancy

Description

The SN65LVDS31 is a differential line driver that implements the electrical characteristics of low-voltage differential signaling (LVDS). This signaling technique lowers the output voltage levels of 5-V differential standard levels (such as TIA/EIA-422B) to reduce the power, increase the switching speeds, and allow operation with a 3.3-V supply rail. This driver will deliver a minimum differential output voltage magnitude of 247 mV into a 100-Ω load when enabled. The intended application of this device and signaling technique is both point-to-point and multidrop (one driver and multiple receivers) data transmission over controlled impedance media of approximately 100 Ω. The transmission media may be printed-circuit board traces, backplanes, or cables. The ultimate rate and distance of data transfer is dependent upon the attenuation characteristics of the media and the noise coupling to the environment. The SN65LVDS31 is characterized for operation from –55°C to 125°C. The SN65LVDS31 is a differential line driver that implements the electrical characteristics of low-voltage differential signaling (LVDS). This signaling technique lowers the output voltage levels of 5-V differential standard levels (such as TIA/EIA-422B) to reduce the power, increase the switching speeds, and allow operation with a 3.3-V supply rail. This driver will deliver a minimum differential output voltage magnitude of 247 mV into a 100-Ω load when enabled. The intended application of this device and signaling technique is both point-to-point and multidrop (one driver and multiple receivers) data transmission over controlled impedance media of approximately 100 Ω. The transmission media may be printed-circuit board traces, backplanes, or cables. The ultimate rate and distance of data transfer is dependent upon the attenuation characteristics of the media and the noise coupling to the environment. The SN65LVDS31 is characterized for operation from –55°C to 125°C.
