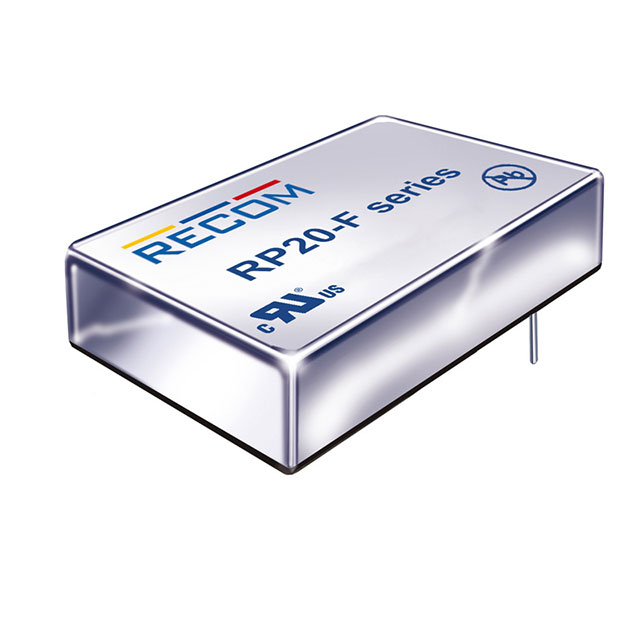

RP20-F Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 20W DC/DC 1.6KV REG 2:1 18-36VIN 12VOUT

...

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Number of Outputs	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Isolation	Efficiency	Package / Case	Size / Dimension	Power (Watts)	Voltage - Output 1	Current - Output (Max) [Max]	Type	Applications	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
Recom Power RP20-2412SF-HC	OCP OVP SCP UVLO	85 °C	-40 C	Active High Enable	1	Through Hole	18 V	36 V	1.6 kV	87 %	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	20 W	12 V	1.67 A	Isolated Module	ITE (Commercial)
Recom Power RP20-4812DF	OCP OVP SCP UVLO	85 °C	-40 C	Active High Enable	2	Through Hole	36 V	75 V	1.6 kV	88 %	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	20 W	12 V		Isolated Module	ITE (Commercial)	833 mA	833 mA	-12 V
Recom Power RP20-1215DF	OCP OVP SCP UVLO	85 °C	-40 C	Active High Enable	2	Through Hole	9 V	18 V	1.6 kV	86 %	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	20 W	15 V		Isolated Module	ITE (Commercial)	667 mA	667 mA	-15 V
Recom Power RP20-1215SF	OCP OVP SCP UVLO	85 °C	-40 C	Active High Enable	1	Through Hole	9 V	18 V	1.6 kV	85 %	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	20 W	15 V	1.33 A	Isolated Module	ITE (Commercial)
Recom Power RP20-1215SF/N-HC	OCP OVP Remote On/Off SCP	85 °C	-40 C	Active Low Enable	1	Through Hole	9 V	18 V	1.6 kV	85 %	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	20 W	15 V	1.33 A	Isolated Module	ITE (Commercial)
Recom Power RP20-2415SF/N-HC	OCP OVP Remote On/Off SCP	85 °C	-40 C	Active Low Enable	1	Through Hole	18 V	36 V	1.6 kV	87 %	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	20 W	15 V	1.33 A	Isolated Module	ITE (Commercial)
Recom Power RP20-4812SF/N	OCP OVP Remote On/Off SCP	85 °C	-40 C	Active Low Enable	1	Through Hole	36 V	75 V	1.6 kV	88 %	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	20 W	12 V	1.67 A	Isolated Module	ITE (Commercial)
Recom Power RP20-1205SF/N	OCP OVP Remote On/Off SCP	85 °C	-40 C	Active Low Enable	1	Through Hole	9 V	18 V	1.6 kV	87 %	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	20 W	5 V	4 A	Isolated Module	ITE (Commercial)
Recom Power RP20-1215DF/N-HC	OCP OVP Remote On/Off SCP	85 °C	-40 C	Active Low Enable	2	Through Hole	9 V	18 V	1.6 kV	86 %	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	20 W	15 V		Isolated Module	ITE (Commercial)	667 mA	667 mA	-15 V
Recom Power RP20-4812SF-HC	OCP OVP SCP UVLO	85 °C	-40 C	Active High Enable	1	Through Hole	36 V	75 V	1.6 kV	88 %	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	20 W	12 V	1.67 A	Isolated Module	ITE (Commercial)
