TE750 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

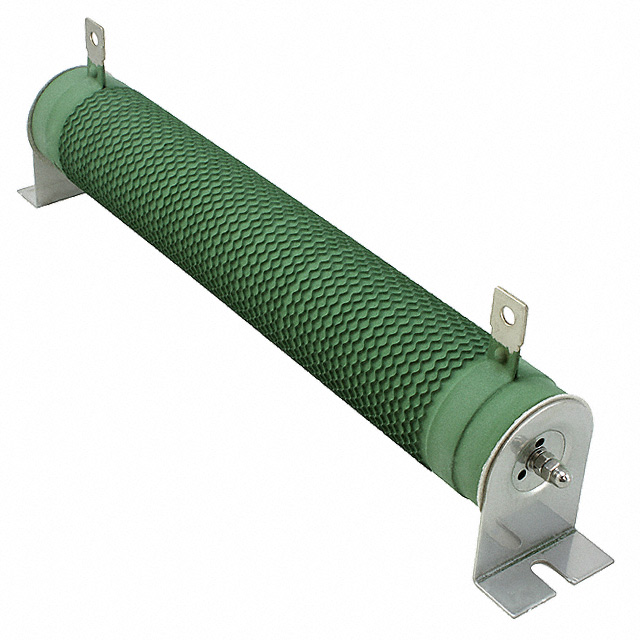

RES CHAS MNT 6.8 OHM 5% 750W
| Part | Coating, Housing Type | Composition | Features | Package / Case | Resistance | Mounting Feature | Tolerance | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Temperature Coefficient | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Silicone Coated | Wirewound | Flame Proof Safety | Radial Tubular | 6.8 Ohms | Brackets | 5 % | 750 W | 155 C | -55 C | 440 ppm/°C | 1.969 in | 12.441 in | 50 mm | 316 mm | Solder Lugs |
TE Connectivity AMP Connectors | Silicone Coated | Wirewound | Flame Proof Safety | Radial Tubular | 330 Ohms | Brackets | 5 % | 750 W | 155 C | -55 C | 440 ppm/°C | 1.969 in | 12.441 in | 50 mm | 316 mm | Solder Lugs |
TE Connectivity AMP Connectors | Silicone Coated | Wirewound | Flame Proof Safety | Radial Tubular | 82 Ohms | Brackets | 5 % | 750 W | 155 C | -55 C | 440 ppm/°C | 1.969 in | 12.441 in | 50 mm | 316 mm | Solder Lugs |
TE Connectivity AMP Connectors | Silicone Coated | Wirewound | Flame Proof Safety | Radial Tubular | 3.9 Ohms | Brackets | 5 % | 750 W | 155 C | -55 C | 440 ppm/°C | 1.969 in | 12.441 in | 50 mm | 316 mm | Solder Lugs |
TE Connectivity AMP Connectors | Silicone Coated | Wirewound | Flame Proof Safety | Radial Tubular | 390 Ohms | Brackets | 5 % | 750 W | 155 C | -55 C | 440 ppm/°C | 1.969 in | 12.441 in | 50 mm | 316 mm | Solder Lugs |
TE Connectivity AMP Connectors | Silicone Coated | Wirewound | Flame Proof Safety | Radial Tubular | 56 Ohms | Brackets | 5 % | 750 W | 155 C | -55 C | 440 ppm/°C | 1.969 in | 12.441 in | 50 mm | 316 mm | Solder Lugs |
TE Connectivity AMP Connectors | Silicone Coated | Wirewound | Flame Proof Safety | Radial Tubular | 68 Ohms | Brackets | 5 % | 750 W | 155 C | -55 C | 440 ppm/°C | 1.969 in | 12.441 in | 50 mm | 316 mm | Solder Lugs |
TE Connectivity AMP Connectors | Silicone Coated | Wirewound | Flame Proof Safety | Radial Tubular | 3.3 Ohms | Brackets | 5 % | 750 W | 155 C | -55 C | 440 ppm/°C | 1.969 in | 12.441 in | 50 mm | 316 mm | Solder Lugs |
TE Connectivity AMP Connectors | Silicone Coated | Wirewound | Flame Proof Safety | Radial Tubular | 270 Ohms | Brackets | 5 % | 750 W | 155 C | -55 C | 440 ppm/°C | 1.969 in | 12.441 in | 50 mm | 316 mm | Solder Lugs |
TE Connectivity AMP Connectors | Silicone Coated | Wirewound | Flame Proof Safety | Radial Tubular | 1500 Ohms | Brackets | 5 % | 750 W | 155 C | -55 C | 440 ppm/°C | 1.969 in | 12.441 in | 50 mm | 316 mm | Solder Lugs |
