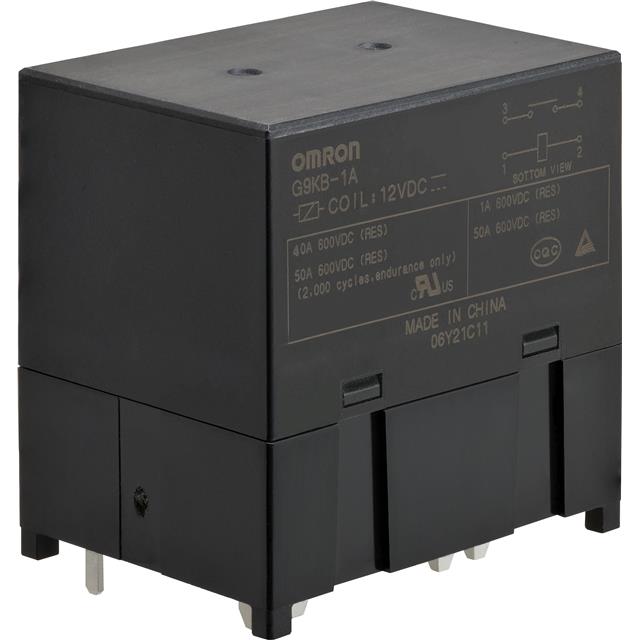

G9KB-1 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 50A 12V
| Part | Load - Max Switching | Must Release Voltage | Approval Agency | Coil Resistance | Contact Material | Coil Insulation | Operate Time | Coil Voltage | Seal Rating | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Contact Rating (Current) | Must Operate Voltage | Coil Current | Switching Voltage [Max] | Mounting Type | Coil Type | Release Time | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 30000 VA 30000 W | 1.2 VDC 3.84 VDC | CQC CQC cULus TUV cURus TUV | 51 Ohms | Silver (Ag) Silver Alloy Cadmium Free | Class F | 30 ms | 12 VDC | Sealed - Flux Protection | General Purpose | 85 °C | -40 C | SPST-NO (1 Form A) | 50 A | 9 VDC | 235.3 mA | 600 VDC | Through Hole | Non Latching | 10 ms | PC Pin |
Omron Electronics Inc-EMC Div | 30000 VA 30000 W | 2.4 VDC 7.68 VDC | CQC CQC cULus TUV cURus TUV | 206 Ohms | Silver (Ag) Silver Alloy Cadmium Free | Class F | 30 ms | 24 VDC | Sealed - Flux Protection | General Purpose | 85 °C | -40 C | SPST-NO (1 Form A) | 50 A | 18 VDC | 116.5 mA | 600 VDC | Through Hole | Non Latching | 10 ms | PC Pin |
