T600121804 Series
Manufacturer: Powerex Inc.
Beta
⌘K

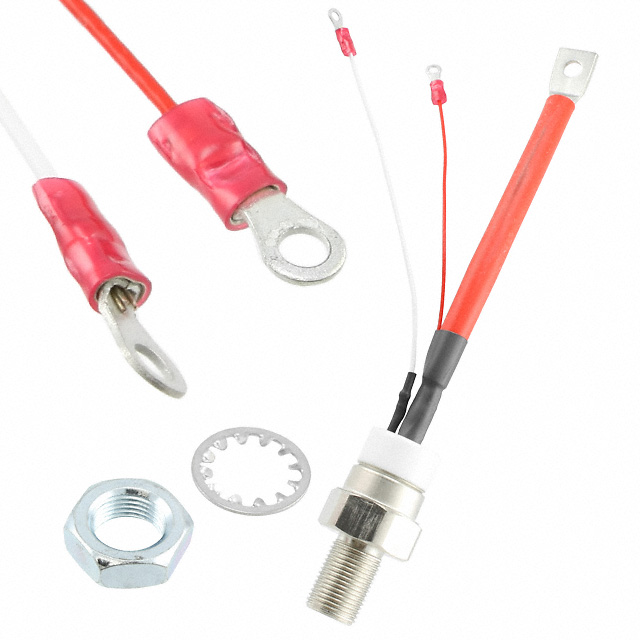

SCR MODULE, 175 A, 1.2 KV
| Part | Package / Case | Mounting Type | Current - Non Rep. Surge 50, 60Hz (Itsm) | Voltage - Off State | SCR Type | Current - Off State (Max) [Max] [custom] | Current - On State (It (RMS)) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - On State (Vtm) (Max) [Max] | Current - On State (It (AV)) (Max) [Max] | Current - Gate Trigger (Igt) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Powerex Inc. | Stud TO-209AB TO-93-4 | Chassis Stud Mount | 5000 A 5500 A | 1.2 kV | Standard Recovery | 25 mA | 275 A | 125 °C | -40 C | 1.55 V | 175 A | 150 mA |
