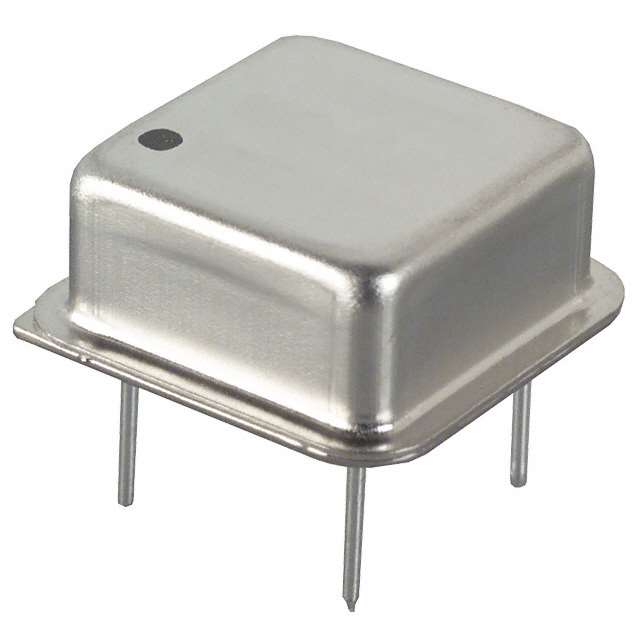

ECS-2100 Series

Manufacturer: ECS Inc.

Catalog

STANDARD CLOCK OSCILLATORS DIP-8 5V 14.74MHZ

Part	Current - Supply (Max) [Max]	Frequency	Operating Temperature [Max]	Frequency Stability	Output	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Base Resonator [custom]
ECS Inc. ECS-2100A-147.4	25 mA	14.7456 MHz	70 °C	100 ppm	HCMOS TTL	Through Hole	5.4 mm	0.213 in	8-DIP 4 Leads (Half Size Metal Can)	XO (Standard)	0.52 in	13.2 mm	0.52 in	13.2 mm	Crystal
ECS Inc. ECS-2100A-320	46 mA	32 MHz	70 °C	100 ppm	HCMOS TTL	Through Hole	5.4 mm	0.213 in	8-DIP 4 Leads (Half Size Metal Can)	XO (Standard)	0.52 in	13.2 mm	0.52 in	13.2 mm	Crystal
ECS Inc. ECS-2100A-251.7	46 mA	25.175 MHz	70 °C	100 ppm	HCMOS TTL	Through Hole	5.4 mm	0.213 in	8-DIP 4 Leads (Half Size Metal Can)	XO (Standard)	0.52 in	13.2 mm	0.52 in	13.2 mm	Crystal
