j Series

Catalog

MICROSWITCH SNAP ACTION; 7A/250VAC; WITH LEVER; SPDT; ON-(ON)

Part	Switch Function	Operating Force	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Overtravel [custom]	Overtravel [custom]	Voltage Rating - AC	Release Force	Ingress Protection	Circuit	Termination Style	Differential Travel	Differential Travel	Mechanical Life	Mounting Type	Operating Position	Operating Position	Electrical Life	Pretravel	Pretravel	Pretravel
Omron Electronics Inc-EMC Div J-7-V3	On-Mom	30 gf	Lever Straight	-10 °C	80 °C	0.5 mm	0.02 "	250 V	5.099 gf	IP40	SPDT	Solder Turret	0.7 mm	0.027 in	10000000 Cycles	Chassis Mount	0.328 "	8.3 mm	50000 Cycles	2.9 mm	0.114 in
Omron Electronics Inc-EMC Div J-7-V2	On-Mom	33 gf	Lever Roller	-10 °C	80 °C	0.45 mm	0.018 "	250 V	3.059 gf	IP40	SPDT	Solder Turret	0.7 mm	0.027 in	10000000 Cycles	Chassis Mount	0.579 in	14.7 mm	50000 Cycles	2.7 mm	0.106 in

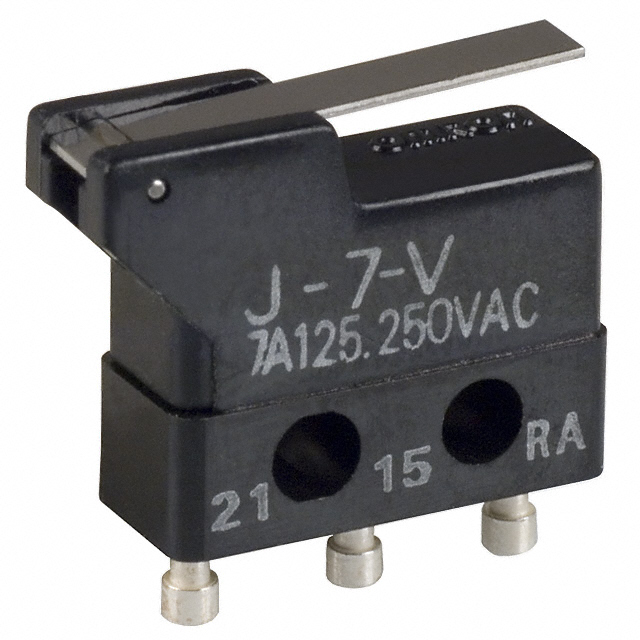

Omron Electronics Inc-EMC Div J-7-V	On-Mom	50 gf	Lever Straight	-10 °C	80 °C	0.35 mm	0.014 in	250 V	9.177 gf	IP40	SPDT	Solder Turret	0.5 mm	0.02 in	10000000 Cycles	Chassis Mount	0.328 "	8.3 mm	50000 Cycles	1.7 mm	0.067 in
Omron Electronics Inc-EMC Div J-7-V4	On-Mom	20 gf	Lever Straight	-10 °C	80 °C	0.76 mm	0.03 "	250 V	3.059 gf	IP40	SPDT	Solder Turret	1.2 mm	0.047 in	10000000 Cycles	Chassis Mount	0.328 "	8.3 mm	50000 Cycles	0.178 in		4.5 mm
