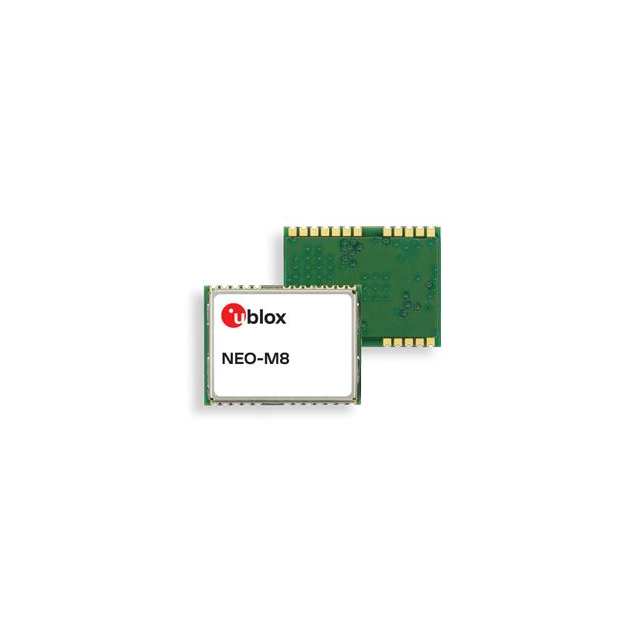

NEO-M8 Series
Manufacturer: u-blox
Beta
⌘K
RF RCVR GNSS/GPS 1.575GHZ 24LCC
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Current - Receiving | Sensitivity | Frequency | Data Interface | Package / Case | Mounting Type | Applications | Modulation or Protocol | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 u-blox | 1.65 V | 3.6 V | 21 mA | -167 dBm | 1.575 GHz | I2C SPI UART USB | 24-SMD Module | Surface Mount | General Purpose | BeiDou Galileo GLONASS GNSS GPS | 85 °C | -40 C |
 u-blox | 2.7 V | 3.6 V | -167 dBm | 1.575 GHz | I2C SPI UART USB | 24-SMD Module | Surface Mount | General Purpose | BeiDou Galileo GLONASS GNSS GPS | 105 °C | -40 °C | |
 u-blox | 2.7 V | 3.6 V | 21 mA | -167 dBm | 1.575 GHz | I2C SPI UART USB | 24-SMD Module | Surface Mount | General Purpose | BeiDou Galileo GLONASS GNSS GPS | 85 °C | -40 C |
 u-blox | 2.7 V | 3.6 V | 29 mA | -160 dBm | 1.575 GHz | I2C SPI UART USB | 24-SMD Module | Surface Mount | General Purpose | BeiDou Galileo GLONASS GNSS GPS | 85 °C | -40 C |
