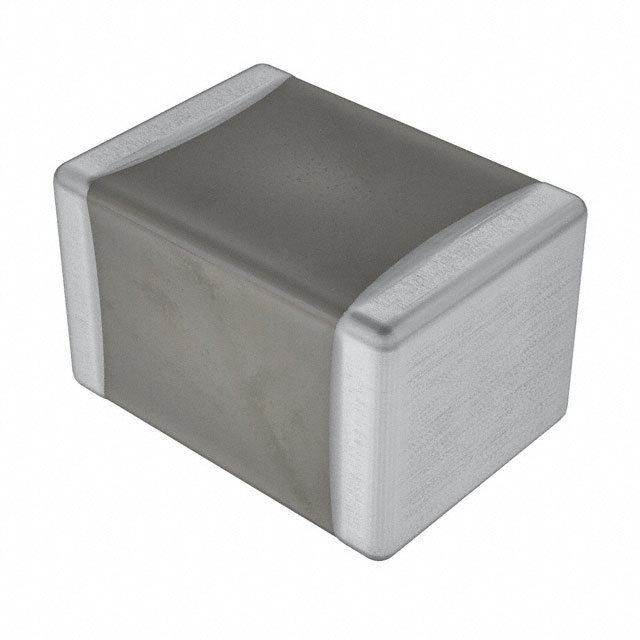

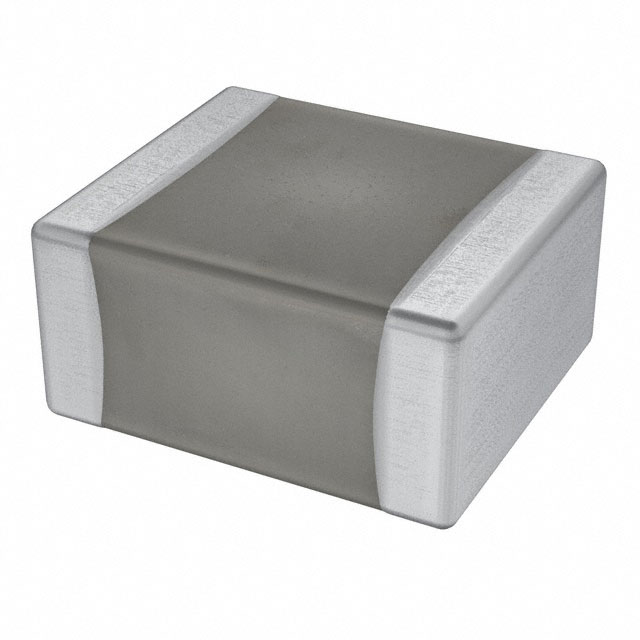

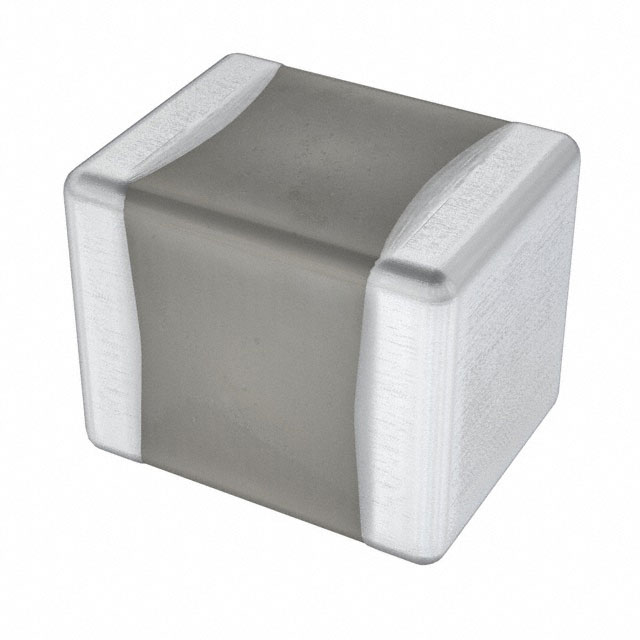

KVF Series

Manufacturer: Chemi-Con

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT

Part	Thickness (Max) [Max]	Thickness (Max) [Max]	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Applications	Capacitance	Voltage - Rated	Tolerance	Package / Case	Features	Size / Dimension [y]

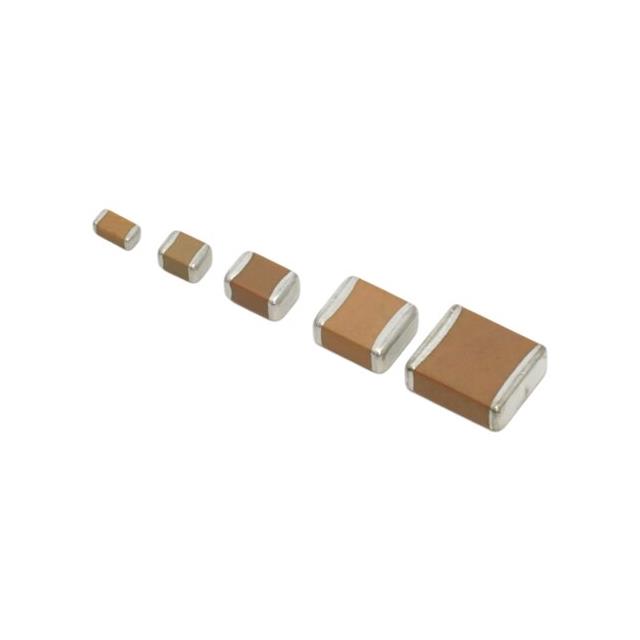

Chemi-Con KVF500L225K43NHT00	0.11 in	2.8 mm	X8L	-55 C	150 °C	AEC-Q200	1812 (4532 Metric)	0.177 in	4.5 mm	3.2 mm	0.126 in	MLCC Surface Mount	Automotive	2.2 µF	50 VDC	10 %
Chemi-Con KVF101L105M55NLT00	0.11 in	2.8 mm	X8L	-55 C	150 °C	AEC-Q200	2220	0.224 "	5.7 mm		0.197 "	MLCC Surface Mount	Automotive	1 µF	100 V	20 %	5750 Metric	High Temperature	5 mm
Chemi-Con KVF250L106M55NHT00	0.11 in	2.8 mm	X8L	-55 C	150 °C	AEC-Q200	2220	0.224 "	5.7 mm		0.197 "	MLCC Surface Mount	Automotive	10 µF	25 VDC	20 %	5750 Metric	High Temperature	5 mm
Chemi-Con KVF101L334M32NLT00	0.102 "	2.6 mm	X8L	-55 C	150 °C	AEC-Q200	1210	0.126 "	3.2 mm	2.5 mm	0.098 in	MLCC Surface Mount	Automotive	0.33 µF	100 V	20 %	3225 Metric	High Temperature
Chemi-Con KVF250L225M32NHT00	0.102 "	2.6 mm	X8L	-55 C	150 °C	AEC-Q200	1210	0.126 "	3.2 mm	2.5 mm	0.098 in	MLCC Surface Mount	Automotive	2.2 µF	25 VDC	20 %	3225 Metric	High Temperature
Chemi-Con KVF250L475M43NHT00	0.11 in	2.8 mm	X8L	-55 C	150 °C	AEC-Q200	1812 (4532 Metric)	0.18 in	4.57 mm	3.2 mm	0.126 in	MLCC Surface Mount	Automotive	4.7 µF	25 VDC	20 %		High Temperature
Chemi-Con KVF500L684M32NLT00	0.102 "	2.6 mm	X8L	-55 C	150 °C	AEC-Q200	1210	0.126 "	3.2 mm	2.5 mm	0.098 in	MLCC Surface Mount	Automotive	0.68 µF	50 VDC	20 %	3225 Metric	High Temperature
