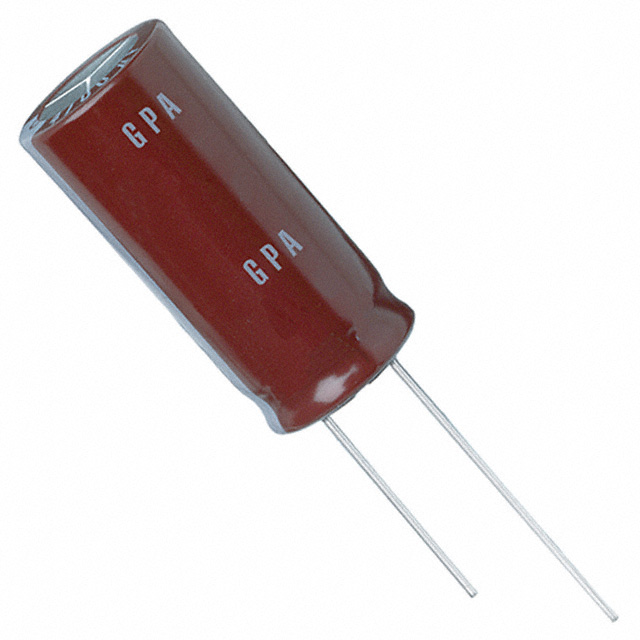

GPA Series
Manufacturer: Chemi-Con
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 360UF 100 VOLT
| Part | Applications | Voltage - Rated | Size / Dimension [diameter] | Size / Dimension [diameter] | ESR (Equivalent Series Resistance) | Package / Case | Ripple Current @ High Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Tolerance | Capacitance | Ripple Current @ Low Frequency | Polarization | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Ratings | Lifetime @ Temp. | Lead Spacing | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Chemi-Con | Automotive | 100 V | 0.63 in | 16 mm | 68 mOhm | Can Radial | 2.25 A | 125 °C | -40 C | Through Hole | 20 % | 360 µF | 1.125 A | Polar | 1.24 in | 31.5 mm | AEC-Q200 | 5000 Hrs | ||
Chemi-Con | Automotive | 35 V | 0.492 in | 12.5 mm | 44 mOhm | Can Radial | 1.82 A | 125 °C | -40 C | Through Hole | 20 % | 680 µF | 1.092 A | Polar | 0.846 " | 21.5 mm | AEC-Q200 | 3000 Hrs | 0.197 " | 5 mm |
 Chemi-Con | Automotive | 35 V | 0.571 in | 14.5 mm | 37 mOhm | Can Radial | 2.1 A | 125 °C | -40 C | Through Hole | 20 % | 1000 µF | Polar | 0.846 " | 21.5 mm | AEC-Q200 | 3000 Hrs | 0.295 in | 7.5 mm |
