0303-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .022-.034 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Termination	Tail Type	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Min] [diameter]	Mounting Hole Diameter	Mounting Hole Diameter	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Square Pin Size	Accepts Square Pin Size	Contact Material	Contact Finish	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 0303-0-19-15-16-27-10-0	-55 C	125 °C	2.16 mm	0.085 "	30 Áin	0.76 Ám	Press-Fit	Crimp	8.94 mm	0.352 in	0.86 mm	0.034 "	0.022 "	0.56 mm	0.067 in	1.7 mm	0.051 in	1.3 mm	0.025 in	0.64 mm	Beryllium Copper	Gold	0.14 in	3.56 mm
Mill-Max Manufacturing Corp. 0303-0-19-80-16-14-10-0	-55 C	125 °C	2.16 mm	0.085 "	10 Áin	0.25 Ám	Press-Fit	Crimp	8.94 mm	0.352 in	0.86 mm	0.034 "	0.022 "	0.56 mm	0.067 in	1.7 mm	0.051 in	1.3 mm	0.025 in	0.64 mm	Beryllium Copper	Gold	0.14 in	3.56 mm
Mill-Max Manufacturing Corp. 0303-0-19-80-16-27-10-0	-55 C	125 °C	2.16 mm	0.085 "	30 Áin	0.76 Ám	Press-Fit	Crimp	8.94 mm	0.352 in	0.86 mm	0.034 "	0.022 "	0.56 mm	0.067 in	1.7 mm	0.051 in	1.3 mm	0.025 in	0.64 mm	Beryllium Copper	Gold	0.14 in	3.56 mm
Mill-Max Manufacturing Corp. 0303-0-19-01-16-14-10-0	-55 C	125 °C	2.16 mm	0.085 "	10 Áin	0.25 Ám	Press-Fit	Crimp	8.94 mm	0.352 in	0.86 mm	0.034 "	0.022 "	0.56 mm	0.067 in	1.7 mm	0.051 in	1.3 mm	0.025 in	0.64 mm	Beryllium Copper	Gold	0.14 in	3.56 mm

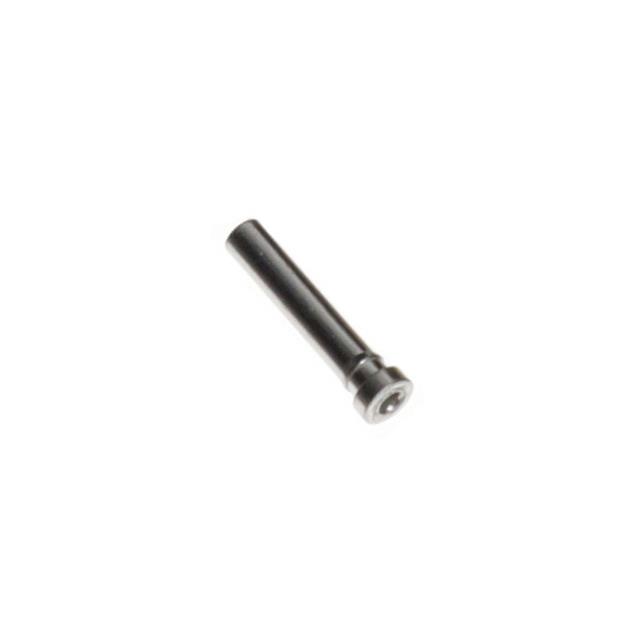

Mill-Max Manufacturing Corp. 0303-0-19-80-16-80-10-0	-55 C	125 °C	2.16 mm	0.085 "	200 Áin	5.08 Ám	Press-Fit	Crimp	8.94 mm	0.352 in	0.86 mm	0.034 "	0.022 "	0.56 mm	0.067 in	1.7 mm	0.051 in	1.3 mm	0.025 in	0.64 mm	Beryllium Copper	Tin	0.14 in	3.56 mm
