1419135 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

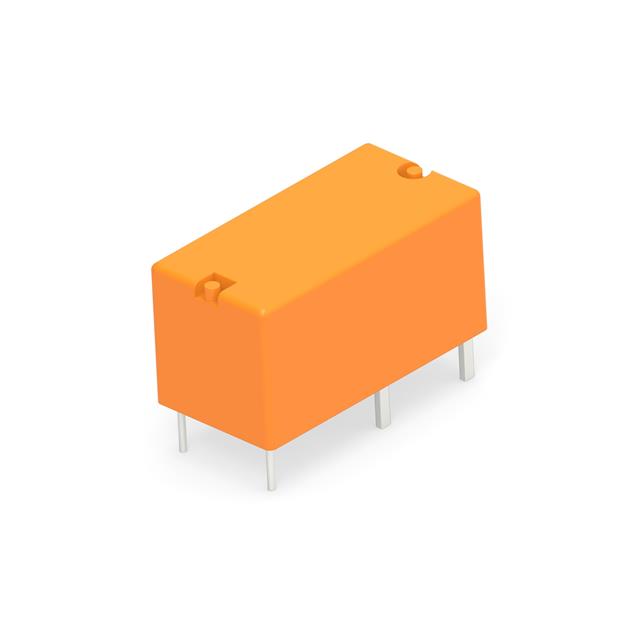

RELAY GEN PURPOSE SPDT 5A 15V
| Part | Coil Resistance | Termination Style | Contact Material | Contact Rating (Current) | Release Time | Approval Agency | Load - Max Switching [Max] | Coil Voltage | Must Release Voltage | Seal Rating | Switching Voltage [Max] | Mounting Type | Coil Type | Must Operate Voltage | Operate Time | Contact Form | Coil Current | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1.07 kOhms | PC Pin | Silver Nickel (AgNi) | 5 A | 8 ms | cURus VDE | 2000 VA | 15 VDC | 1.5 VDC | Sealed - Flux Protection | 400 VAC | Through Hole | Non Latching | 11.25 VDC | 8 ms | SPDT (1 Form C) | 14 mA | General Purpose | 85 °C | -40 C |
