3282-8S Series

Catalog

CONN PLUG FMALE 8P GOLD SLDR CUP

Part	Color	Fastening Type	Features	Mounting Type	Contact Material	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Connector Type	Contact Finish - Mating	Shielding	Orientation	Backshell Material, Plating	Voltage Rating	Ingress Protection	Number of Positions

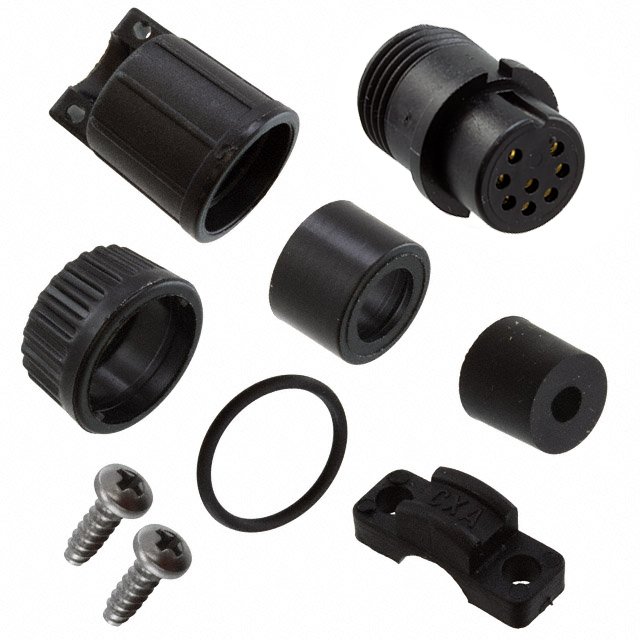

SWITCHCRAFT/CONXALL 3282-8SG-530	Black	Bayonet Lock	Backshell Cable Clamp	Free Hanging (In-Line)	Brass	0.32 in	0.3 in	7.62 mm	8.13 mm	5.6 A	115 °C	-40 C	Plastic	Plug Female Sockets	Gold	Unshielded	Keyed	Nylon Polyamide (PA)	600 V	Weathertight	8
SWITCHCRAFT/CONXALL 3282-8SG-318	Black	Bayonet Lock	Backshell	Free Hanging (In-Line)	Brass	0.2 "	0.18 "	4.57 mm	5.08 mm	5.6 A	115 °C	-40 C	Plastic	Plug Female Sockets	Gold	Unshielded	Keyed	Nylon Polyamide (PA)	600 V	Weathertight	8
SWITCHCRAFT/CONXALL 3282-8SG-518	Black	Bayonet Lock	Backshell Cable Clamp	Free Hanging (In-Line)	Brass	0.2 "	0.18 "	4.57 mm	5.08 mm	5.6 A	115 °C	-40 C	Plastic	Plug Female Sockets	Gold	Unshielded	Keyed	Nylon Polyamide (PA)	600 V	Weathertight	8
SWITCHCRAFT/CONXALL 3282-8SG-315	Black	Bayonet Lock	Backshell	Free Hanging (In-Line)	Brass	0.17 in	0.15 "	3.81 mm	4.32 mm	5.6 A	115 °C	-40 C	Plastic	Plug Female Sockets	Gold	Unshielded	Keyed	Nylon Polyamide (PA)	600 V	Weathertight	8
SWITCHCRAFT/CONXALL 3282-8SG-528	Black	Bayonet Lock	Backshell Cable Clamp	Free Hanging (In-Line)	Brass	0.29 in	0.28 in	7.11 mm	7.37 mm	5.6 A	115 °C	-40 C	Plastic	Plug Female Sockets	Gold	Unshielded	Keyed	Nylon Polyamide (PA)	600 V	Weathertight	8
