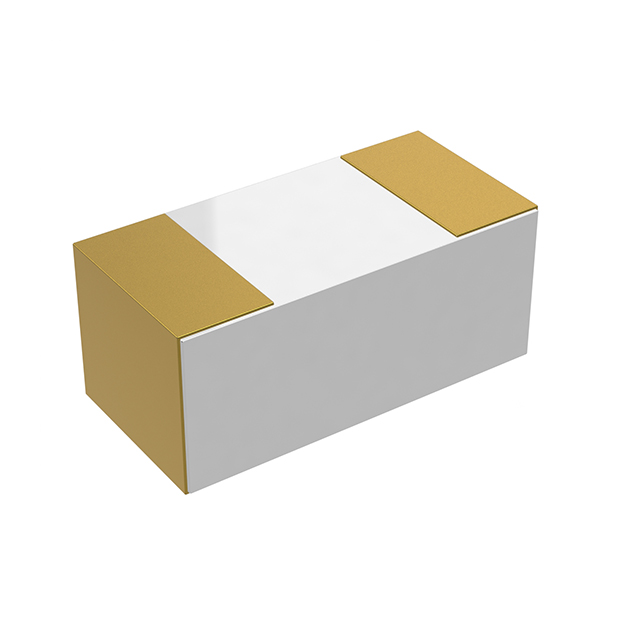

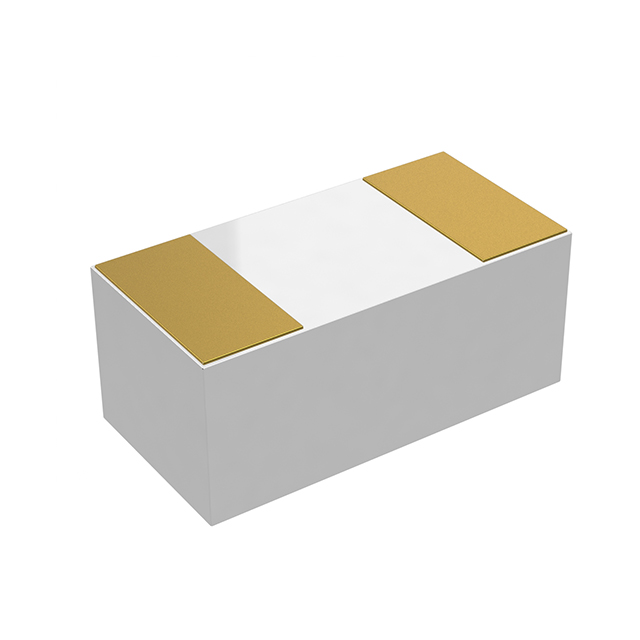

QB0603 Series

Catalog

THERMAL CONDUCTOR Q-BRIDGE

Part	Type	Thermal Conductivity [Max]	Thermal Conductivity [Min]	Thermal Resistivity	Usage	Shape	Outline [y]	Outline [x]	Material	Thickness [custom]	Thickness [custom]
KYOCERA AVX QB0603A25WYC	Thermal Bridge Jumper	76 W/m-K	50 W/m-K	13 °C/W 20 °C/W	Heat Transfer	Rectangular	0.76 mm	1.52 mm	Aluminum Nitride	0.0025 in	0.064 mm
KYOCERA AVX QB0603B25ESS	Thermal Bridge Jumper	76 W/m-K	50 W/m-K	13 °C/W 20 °C/W	Heat Transfer	Rectangular	0.76 mm	1.52 mm	Beryllium Oxide	0.0025 in	0.064 mm
KYOCERA AVX QB0603B25WYC	Thermal Bridge Jumper	76 W/m-K	50 W/m-K	13 °C/W 20 °C/W	Heat Transfer	Rectangular	0.76 mm	1.52 mm	Beryllium Oxide	0.0025 in	0.064 mm
KYOCERA AVX QB0603A25ESC	Thermal Bridge Jumper	76 W/m-K	50 W/m-K	13 °C/W 20 °C/W	Heat Transfer	Rectangular	0.76 mm	1.52 mm	Aluminum Nitride	0.0025 in	0.064 mm
KYOCERA AVX QB0603A25ESS	Thermal Bridge Jumper	76 W/m-K	50 W/m-K	13 °C/W 20 °C/W	Heat Transfer	Rectangular	0.76 mm	1.52 mm	Aluminum Nitride	0.0025 in	0.064 mm
KYOCERA AVX QB0603B25WCAT	Thermal Bridge Jumper	76 W/m-K	50 W/m-K	13 °C/W 20 °C/W	Heat Transfer	Rectangular	0.76 mm	1.52 mm	Beryllium Oxide	0.0025 in	0.064 mm
KYOCERA AVX QB0603B25WYT	Thermal Bridge Jumper	76 W/m-K	50 W/m-K	13 °C/W 20 °C/W	Heat Transfer	Rectangular	0.76 mm	1.52 mm	Beryllium Oxide	0.0025 in	0.064 mm
KYOCERA AVX QB0603B25WYT\500	Thermal Bridge Jumper	76 W/m-K	50 W/m-K	13 °C/W 20 °C/W	Heat Transfer	Rectangular	0.76 mm	1.52 mm	Beryllium Oxide	0.0025 in	0.064 mm
KYOCERA AVX QB0603A25WYS	Thermal Bridge Jumper	76 W/m-K	50 W/m-K	13 °C/W 20 °C/W	Heat Transfer	Rectangular	0.76 mm	1.52 mm	Aluminum Nitride	0.0025 in	0.064 mm
KYOCERA AVX QB0603A25EST\500	Thermal Bridge Jumper	76 W/m-K	50 W/m-K	13 °C/W 20 °C/W	Heat Transfer	Rectangular	0.76 mm	1.52 mm	Aluminum Nitride	0.0025 in	0.064 mm
