EEH-ZF Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

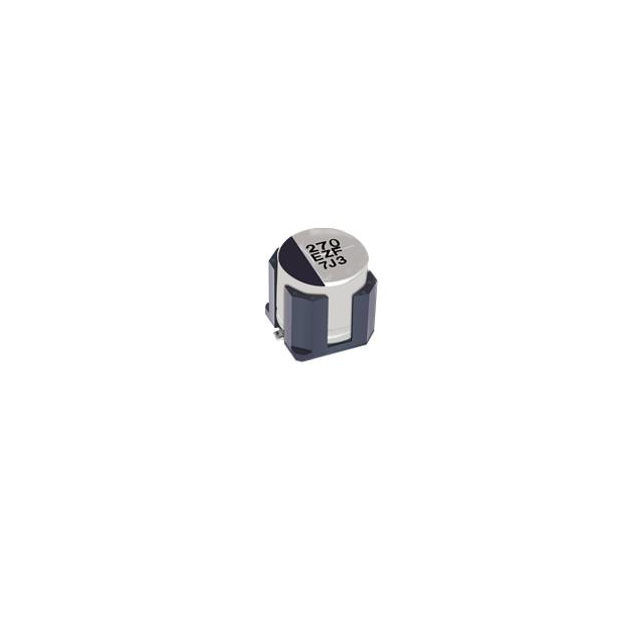

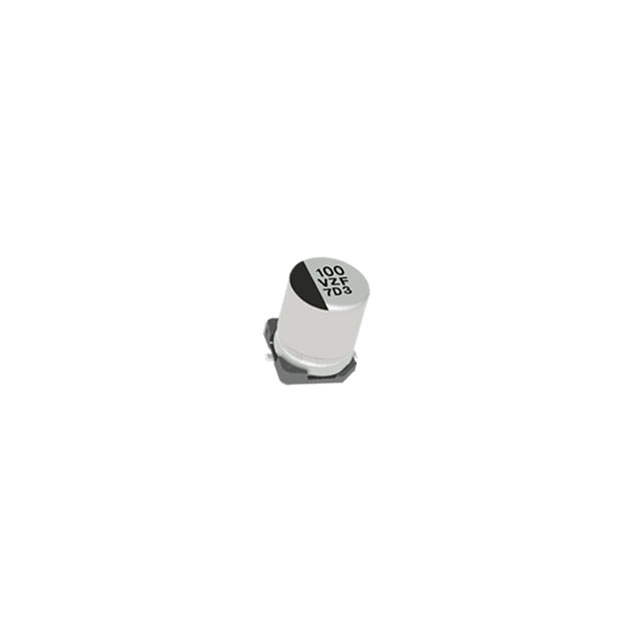

HYBRID ALUMINIUM ELECTROLYTIC CAPACITOR, VIBRATION-PROOF, 56 ΜF, ± 20%, 50 V, RADIAL CAN - SMD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Ripple Current @ Low Frequency	Applications	Voltage - Rated	ESR (Equivalent Series Resistance)	Mounting Type	Capacitance	Package / Case	Tolerance	Ripple Current @ High Frequency	Lifetime @ Temp.	Type	Ratings	Size / Dimension [diameter]	Size / Dimension [diameter]
Panasonic Industrial Automation Sales EEH-ZF1H560V	-55 °C	150 °C	0.425 in	10.8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	105 mA	Automotive	50 VDC	35 mOhms	Surface Mount	56 µF	Radial Can - SMD	20 %	700 mA	1000 Hrs	Hybrid	AEC-Q200	0.315 "	8 mm
Panasonic Industrial Automation Sales EEH-ZF1H101P	-55 °C	150 °C	0.413 in	10.5 mm	0.406 in	10.3 mm	0.406 "	10.3 mm	135 mA	Automotive	50 VDC	28 mOhm	Surface Mount	100 µF	Radial Can - SMD	20 %	900 mA	1000 Hrs	Hybrid	AEC-Q200	0.394 in	10 mm
Panasonic Industrial Automation Sales EEH-ZF1E151P	-55 °C	150 °C	0.413 in	10.5 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	120 mA	Automotive	25 VDC	27 mOhms	Surface Mount	150 µF	Radial Can - SMD	20 %	800 mA	1000 Hrs	Hybrid	AEC-Q200	0.315 "	8 mm
Panasonic Industrial Automation Sales EEH-ZF1J560P	-55 °C	150 °C	0.413 in	10.5 mm	0.406 in	10.3 mm	0.406 "	10.3 mm	126 mA	Automotive	63 V	30 mOhms	Surface Mount	56 µF	Radial Can - SMD	20 %	840 mA	1000 Hrs	Hybrid	AEC-Q200	0.394 in	10 mm
Panasonic Industrial Automation Sales EEH-ZF1V101P	-55 °C	150 °C	0.413 in	10.5 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	115.5 mA	Automotive	35 V	30 mOhms	Surface Mount	100 µF	Radial Can - SMD	20 %	770 mA	1000 Hrs	Hybrid	AEC-Q200	0.315 "	8 mm
Panasonic Industrial Automation Sales EEH-ZF1V151V	-55 °C	150 °C	0.425 in	10.8 mm	0.406 in	10.3 mm	0.406 "	10.3 mm	142.5 mA	Automotive	35 V	23 mOhm	Surface Mount	150 µF	Radial Can - SMD	20 %	950 mA	1000 Hrs	Hybrid	AEC-Q200	0.394 in	10 mm
Panasonic Industrial Automation Sales EEH-ZF1E271V	-55 °C	150 °C	0.425 in	10.8 mm	0.406 in	10.3 mm	0.406 "	10.3 mm	150 mA	Automotive	25 VDC	20 mOhms	Surface Mount	270 µF	Radial Can - SMD	20 %	1 A	1000 Hrs	Hybrid	AEC-Q200	0.394 in	10 mm
Panasonic Industrial Automation Sales EEH-ZF1H101V	-55 °C	150 °C	0.425 in	10.8 mm	0.406 in	10.3 mm	0.406 "	10.3 mm	135 mA	Automotive	50 VDC	28 mOhm	Surface Mount	100 µF	Radial Can - SMD	20 %	900 mA	1000 Hrs	Hybrid	AEC-Q200	0.394 in	10 mm
