SSM-136 Series

Catalog

CONN RCPT 72POS 0.1 GOLD SMD

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Insulation Material	Number of Rows	Mounting Type	Voltage Rating	Fastening Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Style	Number of Positions	Contact Shape	Termination	Contact Finish - Mating	Connector Type	Current Rating (Amps)	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Features
Samtec Inc. SSM-136-L-DV	2.54 mm	0.1 in	7.37 mm	0.29 in	Liquid Crystal Polymer (LCP)	2	Surface Mount	405 VAC 572 VDC	Push-Pull	All	10 çin	0.25 çm	Phosphor Bronze	Board to Board Cable	72	Square	Solder	Gold	Pass Through Receptacle	5.2 A	Tin	0.1 in	2.54 mm	Black	Female Socket	-55 °C	125 °C
Samtec Inc. SSM-136-S-SH			3.18 mm	0.125 in	Liquid Crystal Polymer (LCP)	1	Surface Mount Right Angle	405 VAC 572 VDC	Push-Pull	All	30 Áin	0.76 Ám	Phosphor Bronze	Board to Board Cable	36	Square	Solder	Gold	Receptacle	5.2 A	Tin	0.1 in	2.54 mm	Black	Female Socket	-55 °C	125 °C

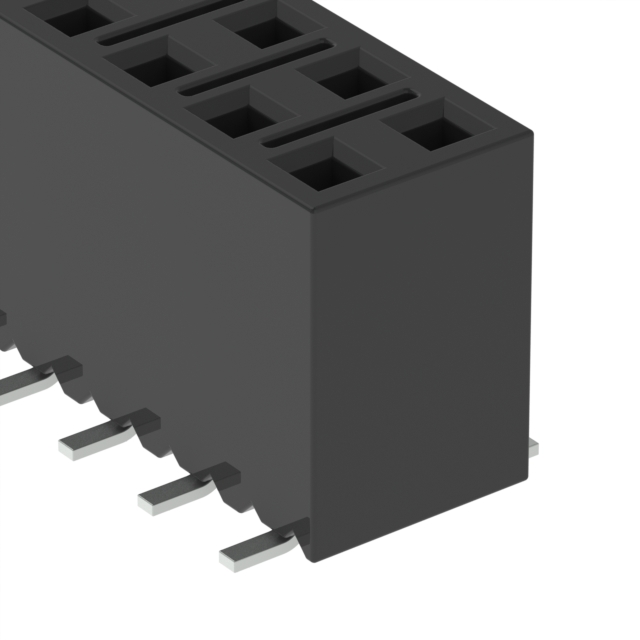

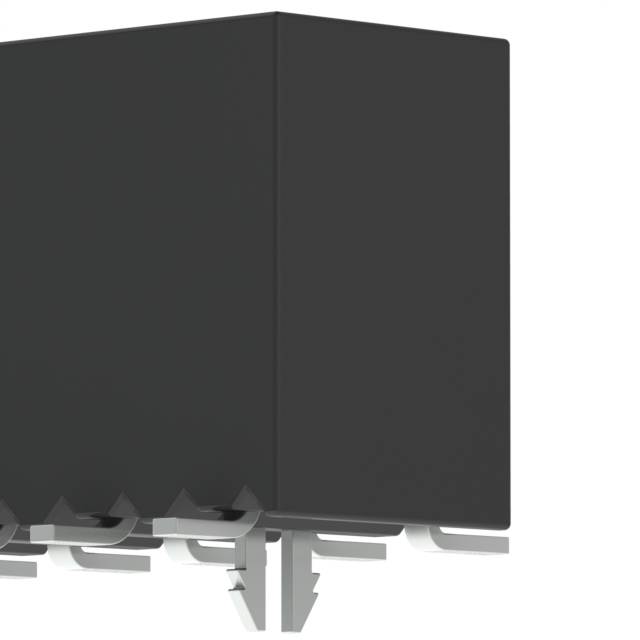

Samtec Inc. SSM-136-F-DV-LC	2.54 mm	0.1 in	7.37 mm	0.29 in	Liquid Crystal Polymer (LCP)	2	Surface Mount	405 VAC 572 VDC	Push-Pull	All	3 µin	0.076 µm	Phosphor Bronze	Board to Board Cable	72	Square	Solder	Gold	Pass Through Receptacle	5.2 A	Tin	0.1 in	2.54 mm	Black	Female Socket	-55 °C	125 °C
Samtec Inc. SSM-136-S-DV-LC	2.54 mm	0.1 in	7.37 mm	0.29 in	Liquid Crystal Polymer (LCP)	2	Surface Mount	405 VAC 572 VDC	Push-Pull	All	30 Áin	0.76 Ám	Phosphor Bronze	Board to Board Cable	72	Square	Solder	Gold	Pass Through Receptacle	5.2 A	Tin	0.1 in	2.54 mm	Black	Female Socket	-55 °C	125 °C
Samtec Inc. SSM-136-L-DV-BE-P	2.54 mm	0.1 in	7.37 mm	0.29 in	Liquid Crystal Polymer (LCP)	2	Surface Mount	405 VAC 572 VDC	Push-Pull	All	10 çin	0.25 çm	Phosphor Bronze	Board to Board Cable	72	Square	Solder	Gold	Receptacle Bottom Entry	5.2 A	Tin	0.1 in	2.54 mm	Black	Female Socket	-55 °C	125 °C	Pick and Place
Samtec Inc. SSM-136-L-SH			3.18 mm	0.125 in	Liquid Crystal Polymer (LCP)	1	Surface Mount Right Angle	405 VAC 572 VDC	Push-Pull	All	10 çin	0.25 çm	Phosphor Bronze	Board to Board Cable	36	Square	Solder	Gold	Receptacle	5.2 A	Tin	0.1 in	2.54 mm	Black	Female Socket	-55 °C	125 °C
Samtec Inc. SSM-136-L-DV-LC	2.54 mm	0.1 in	7.37 mm	0.29 in	Liquid Crystal Polymer (LCP)	2	Surface Mount	405 VAC 572 VDC	Push-Pull	All	10 çin	0.25 çm	Phosphor Bronze	Board to Board Cable	72	Square	Solder	Gold	Pass Through Receptacle	5.2 A	Tin	0.1 in	2.54 mm	Black	Female Socket	-55 °C	125 °C
Samtec Inc. SSM-136-S-DV-LC-P	2.54 mm	0.1 in	7.37 mm	0.29 in	Liquid Crystal Polymer (LCP)	2	Surface Mount	405 VAC 572 VDC	Push-Pull	All	30 Áin	0.76 Ám	Phosphor Bronze	Board to Board Cable	72	Square	Solder	Gold	Pass Through Receptacle	5.2 A	Tin	0.1 in	2.54 mm	Black	Female Socket	-55 °C	125 °C	Board Lock Pick and Place
Samtec Inc. SSM-136-L-DV-K	2.54 mm	0.1 in	7.37 mm	0.29 in	Liquid Crystal Polymer (LCP)	2	Surface Mount	405 VAC 572 VDC	Push-Pull	All	10 çin	0.25 çm	Phosphor Bronze	Board to Board Cable	72	Square	Solder	Gold	Pass Through Receptacle	5.2 A	Tin	0.1 in	2.54 mm	Black	Female Socket	-55 °C	125 °C	Pick and Place
Samtec Inc. SSM-136-L-SV-LC			7.37 mm	0.29 in	Liquid Crystal Polymer (LCP)	1	Surface Mount	405 VAC 572 VDC	Push-Pull	All	10 çin	0.25 çm	Phosphor Bronze	Board to Board Cable	36	Square	Solder	Gold	Pass Through Receptacle	5.2 A	Tin	0.1 in	2.54 mm	Black	Female Socket	-55 °C	125 °C
