PEN.2M Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 8POS GOLD CRIMP

Part	Mounting Feature	Insert Material	Ingress Protection	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Shell Material	Number of Positions	Termination	Shielding	Color	Primary Material	Current Rating (Amps)	Shell Finish	Connector Type	Shell Size - Insert	Applications	Mounting Type	Orientation	Fastening Type	Cable Opening	Cable Opening
LEMO PEN.2M.308.XLMT	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Bronze	1.5 Ám	59 Áin	200 °C	-55 C	Gold	Aluminum Alloy	8	Crimp	Shielded	Gray	Metal	10 A	Nickel	Receptacle Female Sockets	308	Aerospace Automotive Aviation Military	Panel Mount	N (Normal)	Threaded	13 mm	0.512 in
LEMO PEN.2M.306.XRMT3	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Bronze	1.5 Ám	59 Áin	200 °C	-55 C	Gold	Aluminum Alloy	6	Crimp	Shielded	Gray	Metal	10.5 A 18 A	Nickel	Receptacle Female Sockets	306	Aerospace Automotive Aviation Military	Panel Mount	N (Normal)	Threaded	13 mm	0.512 in
LEMO PEN.2M.319.CLMT	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Bronze	1.5 Ám	59 Áin	200 °C	-55 C	Gold	Brass	19	Crimp	Shielded	Silver	Metal	4 A	Chrome	Receptacle Female Sockets	319	Aerospace Automotive Aviation Military	Panel Mount	N (Normal)	Threaded	13 mm	0.512 in
LEMO PEN.2M.308.XRMT6	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Bronze	1.5 Ám	59 Áin	200 °C	-55 C	Gold	Aluminum Alloy	8	Crimp	Shielded	Gray	Metal	7 A 23 A	Nickel	Receptacle Female Sockets	308	Aerospace Automotive Aviation Military	Panel Mount	N (Normal)	Threaded	13 mm	0.512 in

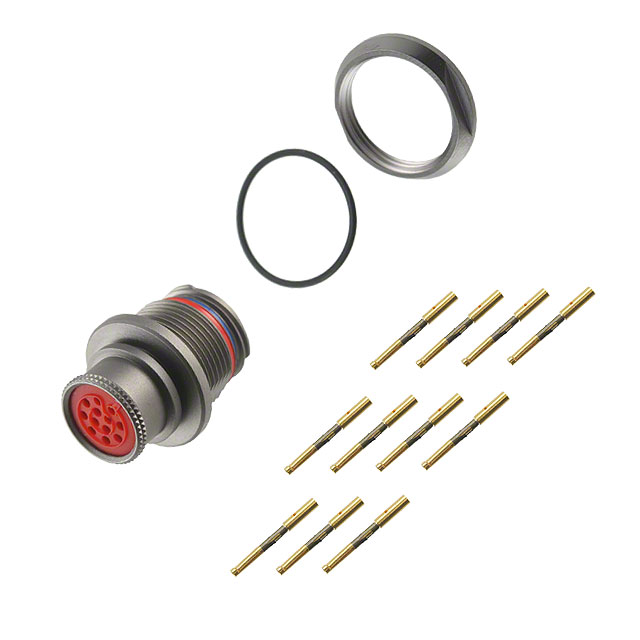

LEMO PEN.2M.312.XLMT	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Bronze	1.5 Ám	59 Áin	200 °C	-55 C	Gold	Aluminum Alloy	12	Crimp	Shielded	Gray	Metal	7 A	Nickel	Receptacle Female Sockets	312	Aerospace Automotive Aviation Military	Panel Mount	N (Normal)	Threaded	13 mm	0.512 in
