B07D91 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

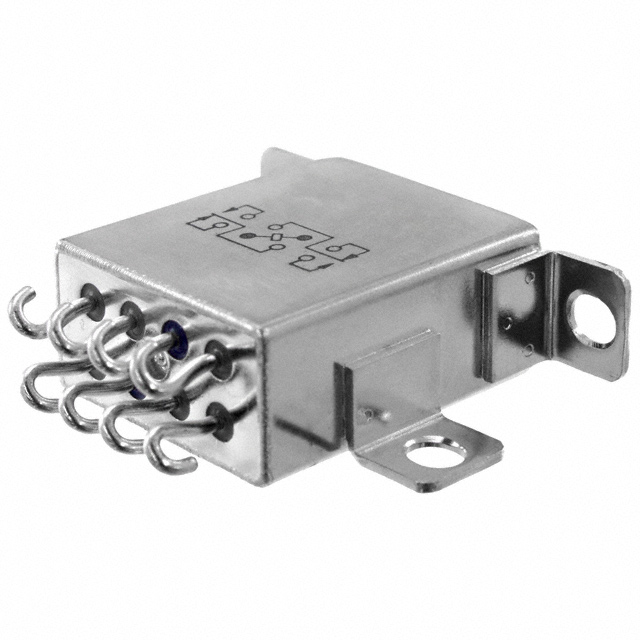

RELAY GEN PURPOSE DPDT 10A 26.5V
| Part | Contact Form | Coil Type | Seal Rating | Contact Rating (Current) | Coil Voltage | Relay Type | Operate Time | Mounting Type | Coil Resistance | Switching Voltage | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Release Time | Contact Material | Load - Max Switching [Max] | Coil Current | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | DPDT (2 Form C) | Non Latching | Sealed - Hermetically | 10 A | 26.5 VDC | General Purpose | 10 ms | Chassis Mount | 300 Ohms | 28 VDC | 13 VDC | 125 °C | -65 ░C | Solder Hook | 10 ms | Silver Cadmium Oxide (AgCdO) | 742 W | 88.3 mA | 1.8 VDC |
