Universal Power Module (UPM) Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RECTANGULAR POWER CONTACT, UNIVERSAL POWER SERIES, TIN PLATED CONTACTS, BRASS, SOCKET, CRIMP
| Part | Contact Termination | Pin or Socket | Type | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Number of Positions Loaded | Number of Positions | Contact Layout, Typical | Connector Type | Number of Rows | Connector Style | Color | Connector Usage | Features | Termination | Mounting Type | Material Flammability Rating | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Crimp | Socket | Power | 20 AWG | 16 AWG | Tin | |||||||||||||||

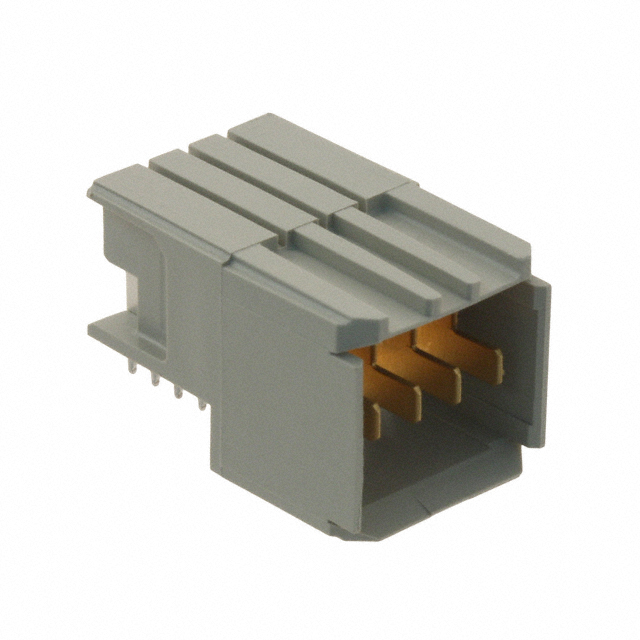

 TE Connectivity AMP Connectors | Gold Gold-Palladium | All | 7 | 7 Power | Header Male Blades | 1 | Blade Power | Gray | Backplane | Board Guide | Press-Fit | Board Edge Right Angle Through Hole | |||||||||
 TE Connectivity AMP Connectors | Gold Gold-Palladium | All | 4 | 4 Power | Header Male Blades | 1 | Blade Power | Gray | Backplane | Board Guide | Press-Fit | Board Edge Right Angle Through Hole | |||||||||
 TE Connectivity AMP Connectors | Gold Gold-Palladium | All | 4 | 4 Power | Header Male Blades | 1 | Blade Power | Gray | Backplane | Board Guide | Press-Fit | Board Edge Right Angle Through Hole | UL94 V-0 | 250 V | -55 C | 125 °C | |||||

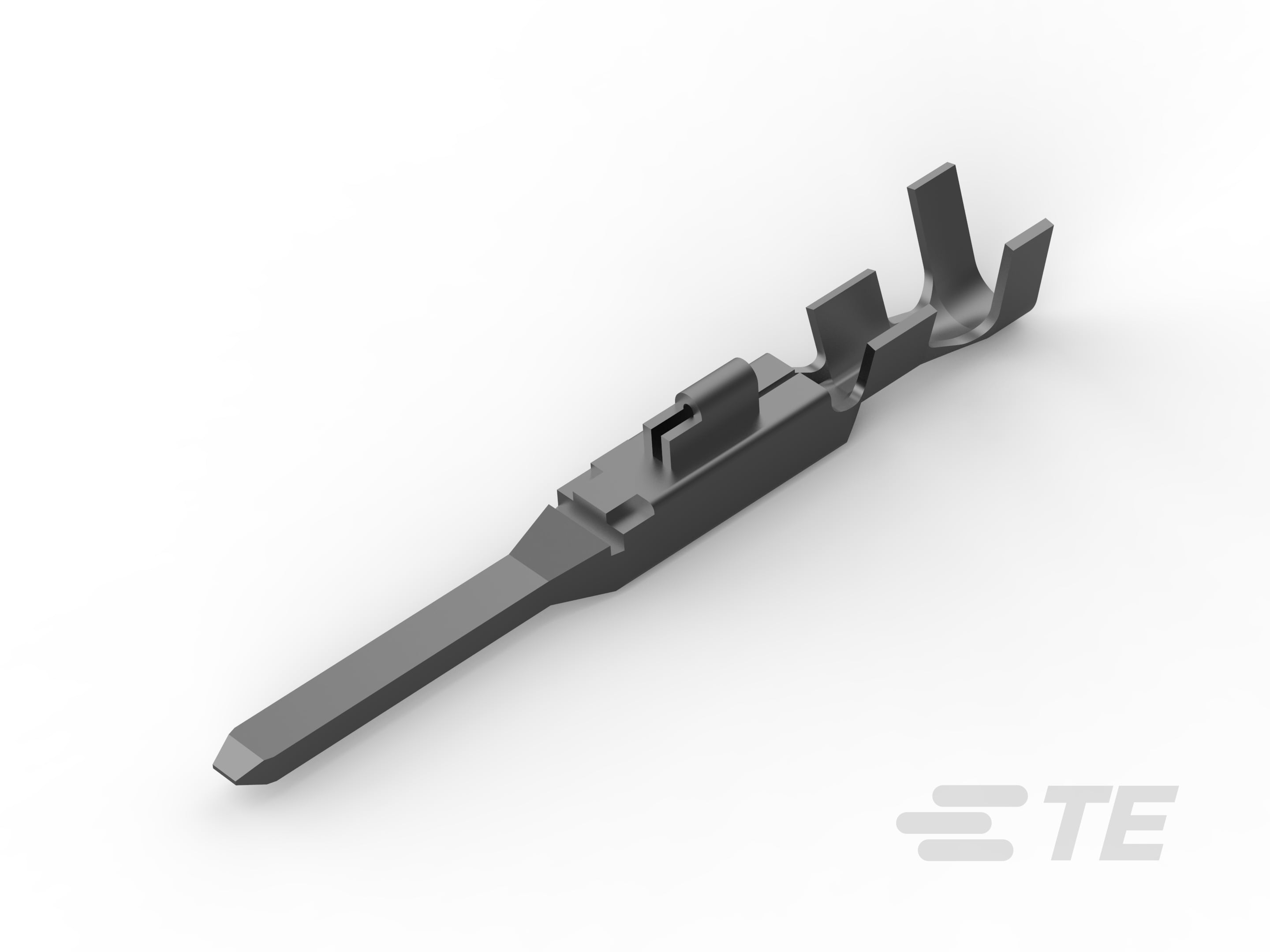

 TE Connectivity AMP Connectors | Crimp | Tab | Power | 26 AWG | 22 AWG | Tin |
