337-082 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 82POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Termination	Card Thickness [Max]	Card Thickness [Min]	Flange Feature	Number of Positions	Gender	Number of Positions/Bay/Row	Card Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch	Pitch	Number of Rows [custom]	Contact Finish	Read Out	Contact Material	Features	Flange Feature [diameter]	Flange Feature [diameter]

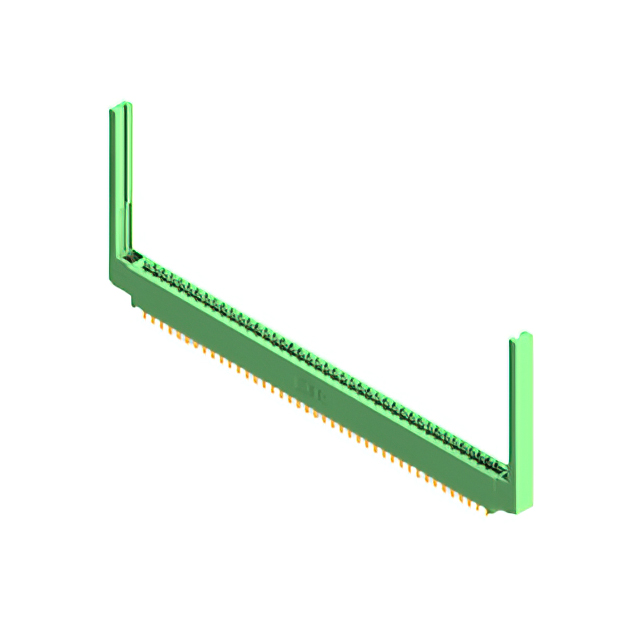

EDAC Inc. 337-082-500-868	2	Polyester Thermoplastic	Cantilever	-40 C	105 ░C	Green	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Threaded Insert Top Mount Opening	82	Female	41	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	3.96 mm	0.156 in	2	Gold	Dual	Copper Alloy	Card Guides
EDAC Inc. 337-082-521-812	2	Polyester Thermoplastic	Cantilever	-40 C	105 ░C	Green	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Side Mount Opening Unthreaded	82	Female	41	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	3.96 mm	0.156 in	2	Gold	Dual	Copper Alloy		0.128 "	3.25 mm
EDAC Inc. 337-082-520-804	2	Polyester Thermoplastic	Cantilever	-40 C	105 ░C	Green	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm		82	Female	41	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	3.96 mm	0.156 in	2	Gold	Dual	Copper Alloy		0.156 "	3.96 mm

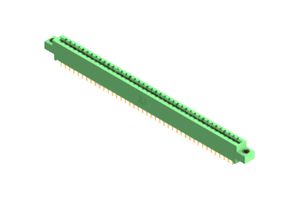

EDAC Inc. 337-082-523-807	2	Polyester Thermoplastic	Cantilever	-40 C	105 ░C	Green	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	M3 Threaded Insert Top Mount Opening	82	Female	41	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	3.96 mm	0.156 in	2	Gold	Dual	Copper Alloy
EDAC Inc. 337-082-544-268	2	Polyester Thermoplastic	Cantilever	-40 C	105 ░C	Green	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	82	Female	41	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	3.96 mm	0.156 in	2	Gold	Dual	Copper Alloy

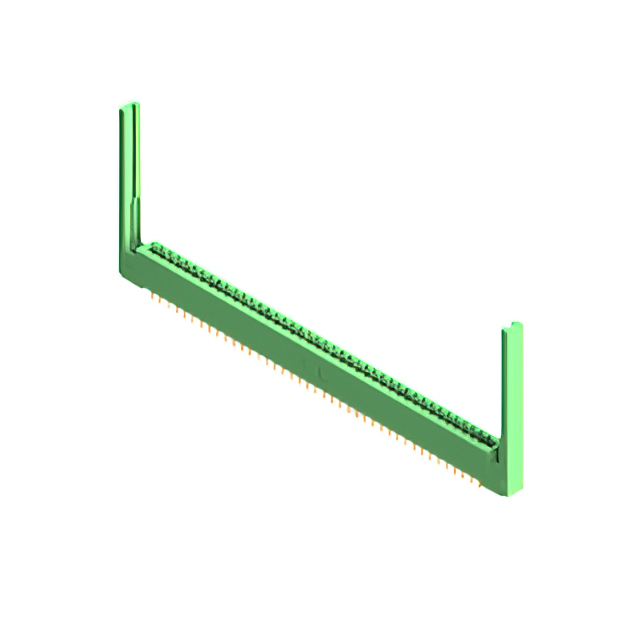

EDAC Inc. 337-082-541-268	2	Polyester Thermoplastic	Cantilever	-40 C	105 ░C	Green	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	82	Female	41	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	3.96 mm	0.156 in	2	Gold	Dual	Copper Alloy	Card Guides
EDAC Inc. 337-082-542-204	2	Polyester Thermoplastic	Cantilever	-40 C	105 ░C	Green	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	82	Female	41	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	3.96 mm	0.156 in	2	Gold	Dual	Copper Alloy		0.156 "	3.96 mm
EDAC Inc. 337-082-544-802	2	Polyester Thermoplastic	Cantilever	-40 C	105 ░C	Green	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm		82	Female	41	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	3.96 mm	0.156 in	2	Gold	Dual	Copper Alloy		0.128 "	3.25 mm

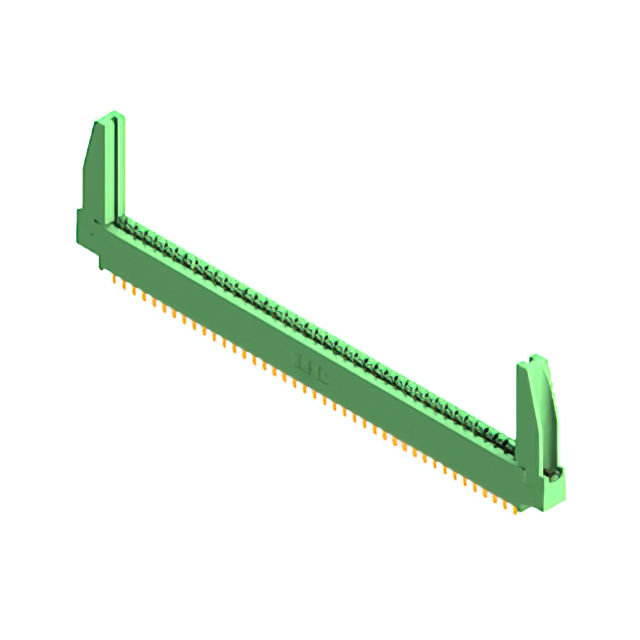

EDAC Inc. 337-082-500-878	2	Polyester Thermoplastic	Cantilever	-40 C	105 ░C	Green	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Threaded Insert Top Mount Opening	82	Female	41	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	3.96 mm	0.156 in	2	Gold	Dual	Copper Alloy
EDAC Inc. 337-082-500-858	2	Polyester Thermoplastic	Cantilever	-40 C	105 ░C	Green	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Threaded Insert Top Mount Opening	82	Female	41	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	3.96 mm	0.156 in	2	Gold	Dual	Copper Alloy	Card Guides
