PC410 Series
Manufacturer: Sharp Microelectronics
Beta
⌘K

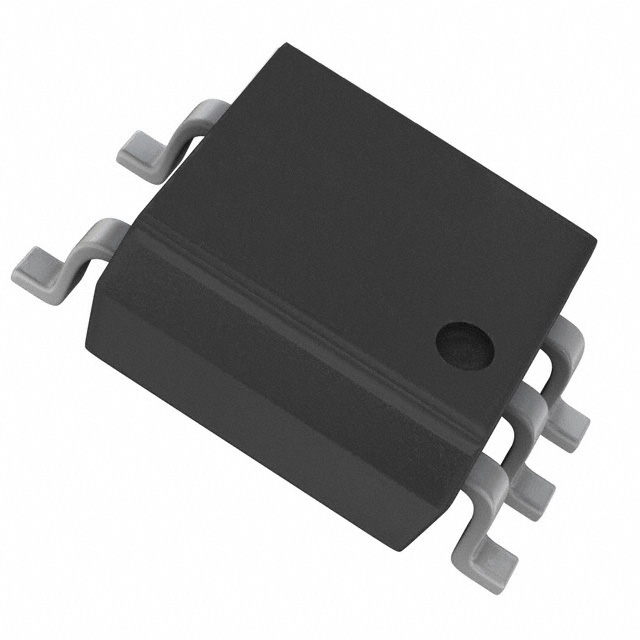

OPTOISO 3.75KV OPEN COLL 5MFP
| Part | Rise / Fall Time (Typ) | Output Type | Input Type | Operating Temperature [Max] | Operating Temperature [Min] | Data Rate | Mounting Type | Propagation Delay tpLH / tpHL (Max) [custom] | Propagation Delay tpLH / tpHL (Max) [custom] | Current - Output / Channel | Current - DC Forward (If) (Max) [Max] | Number of Channels [custom] | Package / Case | Package / Case | Inputs - Side 1/Side 2 [custom] | Inputs - Side 1/Side 2 [custom] | Common Mode Transient Immunity (Min) [Min] | Voltage - Isolation | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplier Device Package | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sharp Microelectronics | 10 ns 20 ns | Open Collector | DC | 85 °C | -40 C | 10 Mbps | Surface Mount | 75 ns | 75 ns | 50 mA | 20 mA | 1 | 6-SOIC | 0.173 " 4.4 mm Width 5 Leads | 1 | 0 | 10 kV/µs | 3750 Vrms | 5.5 V | 4.5 V | 5-MFP | 1.6 V |
