391-039 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 39POS 0.100

Part	Material - Insulation	Termination Rows	Gender	Termination	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Material	Color	Card Thickness [Max]	Card Thickness [Min]	Card Type	Mounting Type	Pitch	Pitch	Read Out	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Type	Number of Positions/Bay/Row

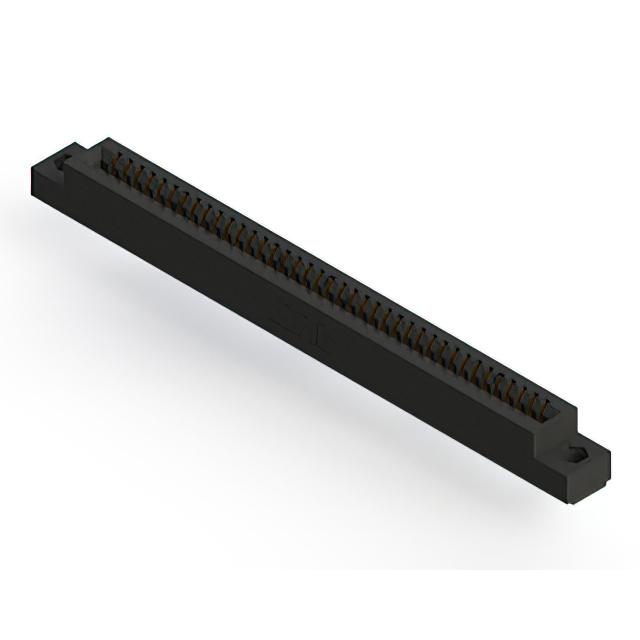

EDAC Inc. 391-039-520-104	Polyester Thermoplastic	1	Female	Solder	1	-40 C	105 ░C	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	0.1 "	2.54 mm	Single	39	0.25 Ám	10 Áin	Gold	Semi Bellows	39
EDAC Inc. 391-039-522-107	Polyester Thermoplastic	1	Female	Solder	1	-40 C	105 ░C	Flush Mount M3 Threaded Insert Top Opening			Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	0.1 "	2.54 mm	Single	39	0.25 Ám	10 Áin	Gold	Semi Bellows	39
EDAC Inc. 391-039-524-103	Polyester Thermoplastic	1	Female	Solder	1	-40 C	105 ░C	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	0.1 "	2.54 mm	Single	39	0.25 Ám	10 Áin	Gold	Semi Bellows	39
EDAC Inc. 391-039-522-108	Polyester Thermoplastic	1	Female	Solder	1	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	0.1 "	2.54 mm	Single	39	0.25 Ám	10 Áin	Gold	Semi Bellows	39
EDAC Inc. 391-039-524-107	Polyester Thermoplastic	1	Female	Solder	1	-40 C	105 ░C	Flush Mount M3 Threaded Insert Top Opening			Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	0.1 "	2.54 mm	Single	39	0.25 Ám	10 Áin	Gold	Semi Bellows	39
EDAC Inc. 391-039-524-102	Polyester Thermoplastic	1	Female	Solder	1	-40 C	105 ░C	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	0.1 "	2.54 mm	Single	39	0.25 Ám	10 Áin	Gold	Semi Bellows	39
EDAC Inc. 391-039-521-102	Polyester Thermoplastic	1	Female	Solder	1	-40 C	105 ░C	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	0.1 "	2.54 mm	Single	39	0.25 Ám	10 Áin	Gold	Semi Bellows	39
EDAC Inc. 391-039-521-103	Polyester Thermoplastic	1	Female	Solder	1	-40 C	105 ░C	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	0.1 "	2.54 mm	Single	39	0.25 Ám	10 Áin	Gold	Semi Bellows	39
EDAC Inc. 391-039-521-107	Polyester Thermoplastic	1	Female	Solder	1	-40 C	105 ░C	Flush Mount M3 Threaded Insert Top Opening			Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	0.1 "	2.54 mm	Single	39	0.25 Ám	10 Áin	Gold	Semi Bellows	39
EDAC Inc. 391-039-522-104	Polyester Thermoplastic	1	Female	Solder	1	-40 C	105 ░C	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Through Hole	0.1 "	2.54 mm	Single	39	0.25 Ám	10 Áin	Gold	Semi Bellows	39
