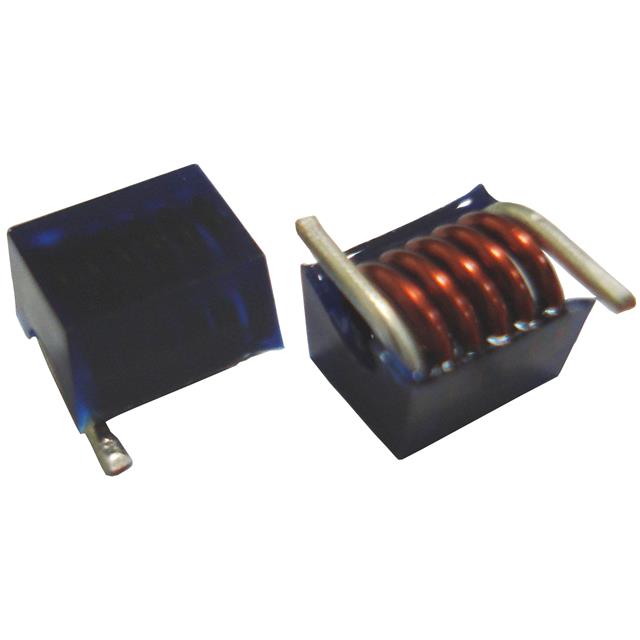

BWSM Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD CHILISIN RF INDUCTOR AIR CORE INDUCTORS - ULTRA HIGH CURRENT
| Part | Package / Case | Type | Material - Core | Frequency - Self Resonant | DC Resistance (DCR) [Max] | Inductance Frequency - Test | Mounting Type | Current Rating (Amps) | Inductance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Shielding | Tolerance | Q @ Freq | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Nonstandard | Wirewound | Air | 850 MHz | 8.5 mOhm | 150 MHz | Surface Mount | 2.5 A | 68 nH | 4.18 mm | 0.165 " | Unshielded | 5 % | 100 150 MHz | 125 °C | -40 C | 6.34 mm | 0.25 in | 0.194 " | 4.94 mm |
