MEAS 82 Series

Catalog

NISO,LP,CV,GA,CBL/TU

Part	Output Type	Applications	Maximum Pressure	Maximum Pressure	Output [Min]	Output [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Termination Style	Pressure Type	Accuracy	Operating Pressure	Operating Pressure	Package / Case	Mounting Type	Maximum Pressure [Max]
TE Connectivity AMP Connectors 82CV-050G-RT
TE Connectivity AMP Connectors 82-005G-RT	Wheatstone Bridge	Board Mount	15 PSI	103.42 kPa	0 mV	100 mV	Temperature Compensated	125 °C	-40 C	No Port	Flex Cable	Vented Gauge	0.2 %	5 PSI	34.47 kPa

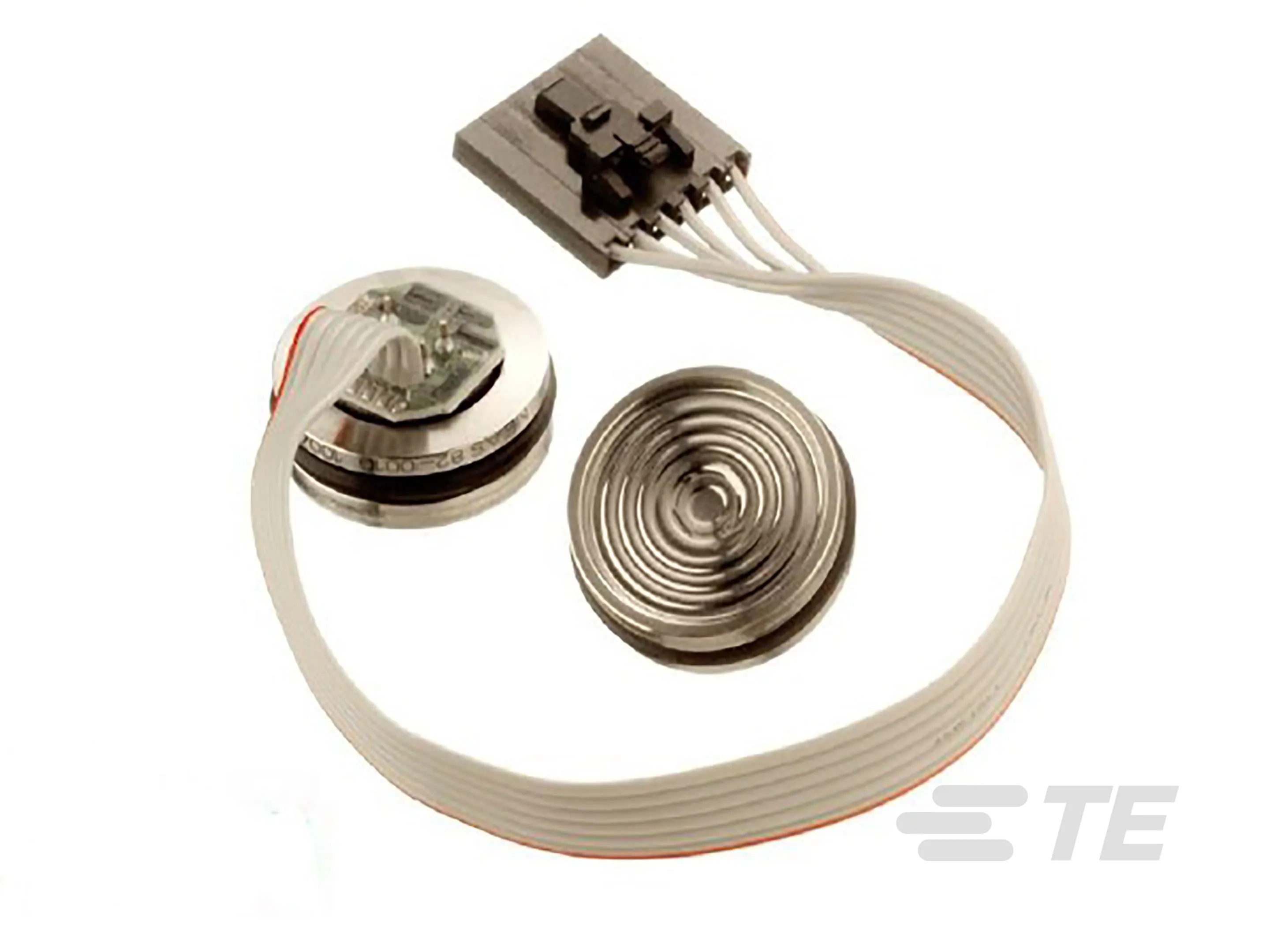

TE Connectivity AMP Connectors 82-500G-1R
TE Connectivity AMP Connectors 82-300A-R
TE Connectivity AMP Connectors 82-050A-C
TE Connectivity AMP Connectors 82-030G-C	Wheatstone Bridge			620.53 kPa	0 mV	100 mV	Temperature Compensated	125 °C	-40 C	No Port	PCB	Vented Gauge	0.1 %	30 PSI	206.84 kPa	4-DIP Module	Through Hole	90 PSI
TE Connectivity AMP Connectors 82-005G-C
TE Connectivity AMP Connectors 82-030A-C	Wheatstone Bridge	Board Mount		620.53 kPa	0 mV	100 mV	Temperature Compensated	125 °C	-40 C	No Port	Cable with Connector		0.1 %	30 PSI	206.84 kPa			90 PSI
TE Connectivity AMP Connectors 82-015A-1R
TE Connectivity AMP Connectors 82-300G-C	Wheatstone Bridge		900 PSI	6205.28 kPa	0 mV	100 mV	Temperature Compensated	125 °C	-40 C	No Port	PCB	Vented Gauge	0.1 %	300 PSI	2068.43 kPa	4-DIP Module	Through Hole
