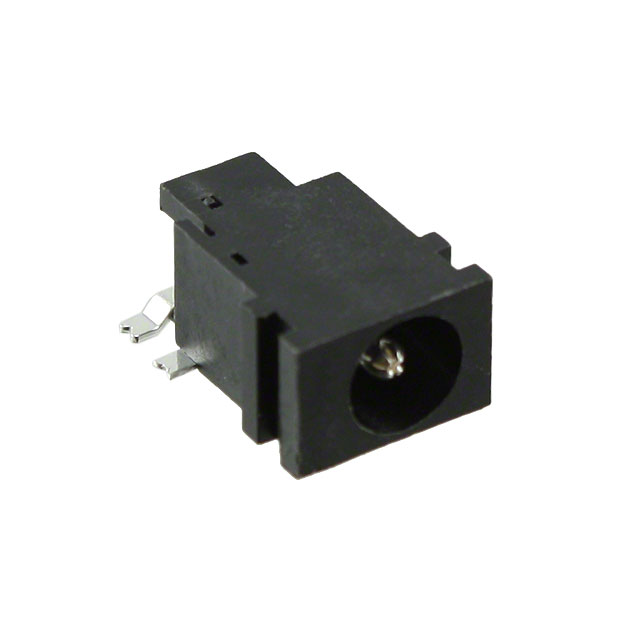

PJ1-021 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
CONN PWR JACK 1.70X4.75MM SOLDER
| Part | Mounting Type | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter | Mating Length/Depth | Mating Length/Depth [x] | Shielding | Current Rating (Amps) | Internal Switch(s) | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Material Flammability Rating | Features | Voltage - Rated | Connector Type | Gender | Termination | Actual Diameter [diameter] | Actual Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material [custom] | Housing Material | Body Color | Contact Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | Right Angle Surface Mount | 0.067 " 0.187 " 1.7 mm 4.75 mm | EIAJ-3 | 8.1 mm | 0.319 in | Unshielded | 5 A | Single Switch Normally Closed | 2 | 3 | UL94 V-0 | Board Guide | 24 VDC | Jack | Male | Solder | 1.65 mm 5.15 mm | 0.065 in 0.203 in | 85 °C | -25 °C | ||||
Same Sky (Formerly CUI Devices) | Right Angle Surface Mount | 0.067 " 0.187 " 1.7 mm 4.75 mm | EIAJ-3 | 8.1 mm | 0.319 in | Unshielded | 5 A | Single Switch Normally Closed | 2 | 3 | UL94 V-0 | Board Guide | 24 VDC | Jack | Male | Solder | 1.65 mm 5.15 mm | 0.065 in 0.203 in | 85 °C | -25 °C | Brass Copper Alloy | Nylon 6T Polyamide (PA6T) | Black | Silver |
