TCJT Series

Catalog

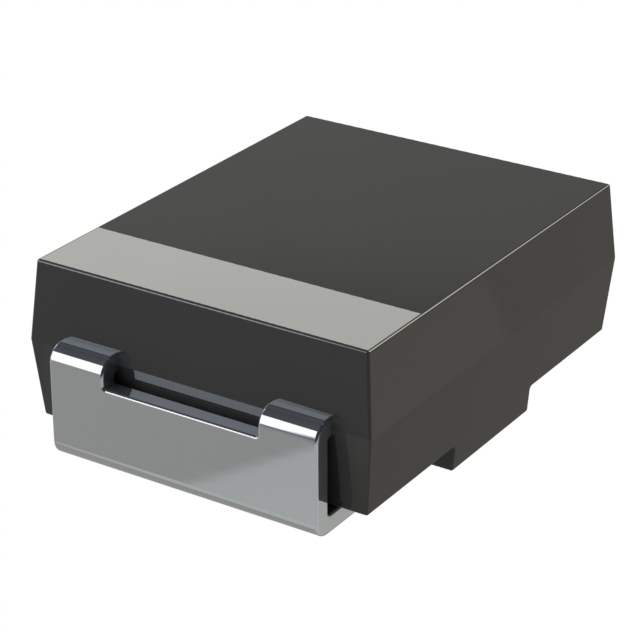

CAP TANT POLY 22UF 10V 1210

Part	Package / Case	Tolerance	Type	Mounting Type	Lifetime @ Temp.	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Manufacturer Size Code	Features	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance
KYOCERA AVX TCJT226M010R0150	1210 1210 (3528 Metric) 1411 (3528 Metric)	20 %	Molded	Surface Mount	2000 Hrs	10 V	1.2 mm	0.047 "	150 mOhm	3.5 mm	0.11 "	2.8 mm	0.138 in	T	General Purpose	-55 C	105 ░C	22 µF
KYOCERA AVX TCJT476M004R0080	1210 1210 (3528 Metric) 1411 (3528 Metric)	20 %	Molded	Surface Mount	2000 Hrs	4 V	1.2 mm	0.047 "	80 mOhm	3.5 mm	0.11 "	2.8 mm	0.138 in	T	General Purpose	-55 C	105 ░C	47 µF
KYOCERA AVX TCJT107M006R0200	1210 1210 (3528 Metric) 1411 (3528 Metric)	20 %	Molded	Surface Mount	2000 Hrs	6.3 VDC	1.2 mm	0.047 "	200 mOhm	3.5 mm	0.11 "	2.8 mm	0.138 in	T	General Purpose	-55 C	105 ░C	100 µF
KYOCERA AVX TCJT686M006S0200	1210 1210 (3528 Metric) 1411 (3528 Metric)	20 %	Molded	Surface Mount	2000 Hrs	6.3 VDC	1.2 mm	0.047 "	200 mOhm	3.5 mm	0.11 "	2.8 mm	0.138 in	T	General Purpose	-55 C	105 ░C	68 µF
KYOCERA AVX TCJT106M016R0150E	1210 1210 (3528 Metric) 1411 (3528 Metric)	20 %	Molded	Surface Mount	2000 Hrs	16 V	1.2 mm	0.047 "	150 mOhm	3.5 mm	0.11 "	2.8 mm	0.138 in	T	General Purpose	-55 C	125 °C	10 µF
KYOCERA AVX TCJT476M004R0080E	1210 1210 (3528 Metric) 1411 (3528 Metric)	20 %	Molded	Surface Mount	2000 Hrs	4 V	1.2 mm	0.047 "	80 mOhm	3.5 mm	0.11 "	2.8 mm	0.138 in	T	General Purpose	-55 C	105 ░C	47 µF
KYOCERA AVX TCJT107M004R0070	1210 1210 (3528 Metric) 1411 (3528 Metric)	20 %	Molded	Surface Mount	2000 Hrs	4 V	1.2 mm	0.047 "	70 mOhm	3.5 mm	0.11 "	2.8 mm	0.138 in	T	General Purpose	-55 C	105 ░C	100 µF
KYOCERA AVX TCJT685M025R0150E	1210 1210 (3528 Metric) 1411 (3528 Metric)	20 %	Molded	Surface Mount	2000 Hrs	25 VDC	1.2 mm	0.047 "	150 mOhm	3.5 mm	0.11 "	2.8 mm	0.138 in	T	General Purpose	-55 C	105 ░C	6.8 µF
KYOCERA AVX TCJT107M006S0200	1210 1210 (3528 Metric) 1411 (3528 Metric)	20 %	Molded	Surface Mount	2000 Hrs	6.3 VDC	1.2 mm	0.047 "	200 mOhm	3.5 mm	0.11 "	2.8 mm	0.138 in	T	General Purpose	-55 C	105 ░C	100 µF
KYOCERA AVX TCJT476M006R0080	1210 1210 (3528 Metric) 1411 (3528 Metric)	20 %	Molded	Surface Mount	2000 Hrs	6.3 VDC	1.2 mm	0.047 "	80 mOhm	3.5 mm	0.11 "	2.8 mm	0.138 in	T	General Purpose	-55 C	105 ░C	47 µF
