ALCOSWITCH MHS Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SWITCH SLIDE DP3T 300MA 125V

Part	Operating Force	Actuator Material	Switch Travel	Electrical Life	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Current Rating (Amps)	Contact Finish	Voltage Rating - AC	Contact Timing	Termination Style	Circuit	Switch Function	Actuator Type	Actuator Length [x]	Mounting Type	Features	Voltage Rating - DC
TE Connectivity AMP Connectors 1-1825289-0	600 gf	Aluminum	2 mm	15000 Cycles	15000 Cycles	85 °C	-20 ░C	Copper Alloy	300 mA	Silver	125 V	Shorting (MBB)	PC Pin	DP3T	On-On-On	Baton	10 mm	Through Hole	Epoxy Sealed Terminals

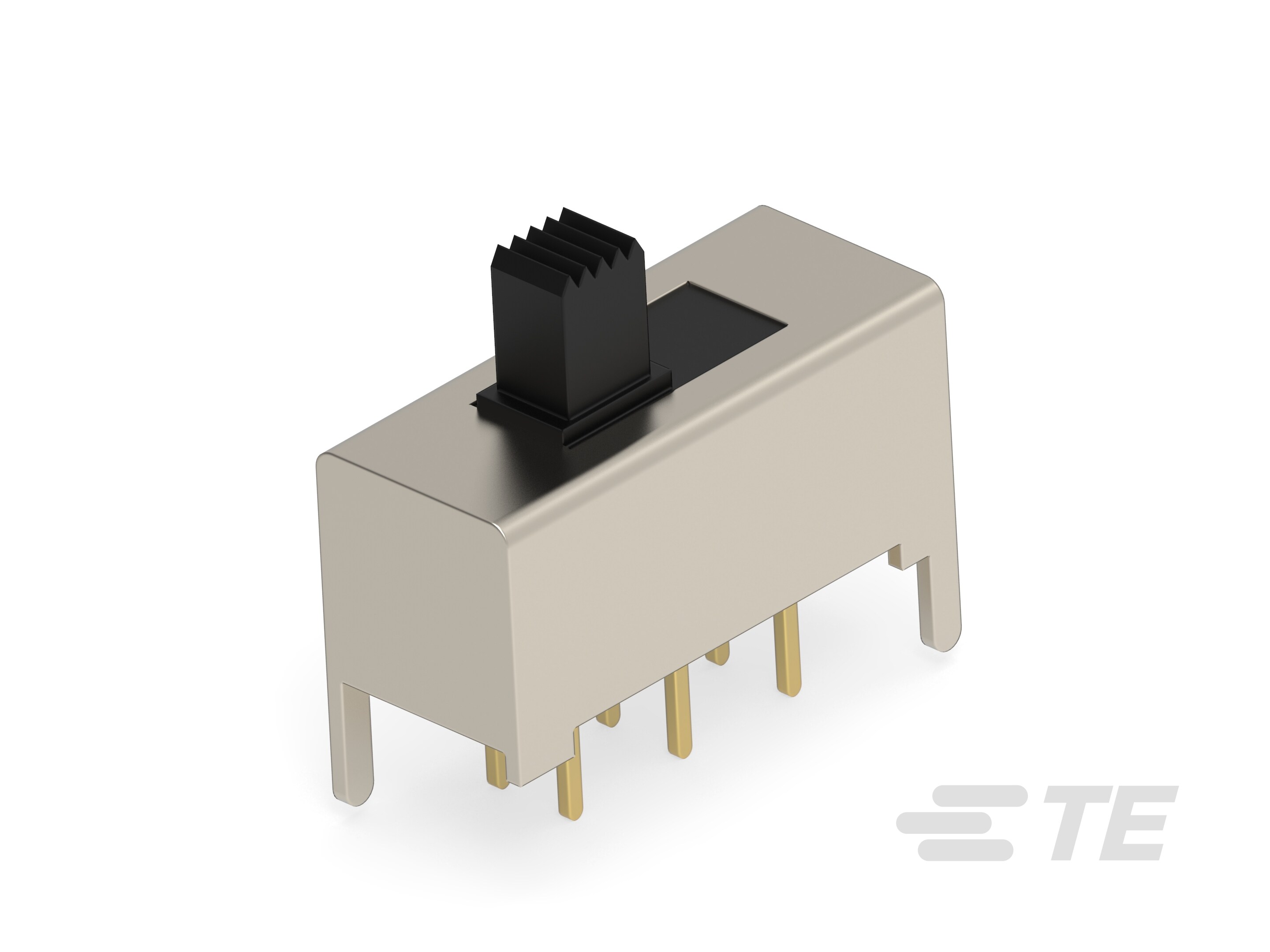

TE Connectivity AMP Connectors 1825289-5						85 °C	-20 ░C	Copper Alloy	300 mA	Silver	125 V	Shorting (MBB)	PC Pin	DPDT	On-Off-On	Standard	4.5 mm	Through Hole	Epoxy Sealed Terminals
TE Connectivity AMP Connectors 1825255-5	600 gf	Polyoxymethylene (Acetal) (POM)	2 mm	15000 Cycles	15000 Cycles	85 °C	-20 ░C	Copper Alloy	300 mA	Silver	125 V	Shorting (MBB)	PC Pin	SPDT	On-Off-On	Standard	4.5 mm	Through Hole	Epoxy Sealed Terminals

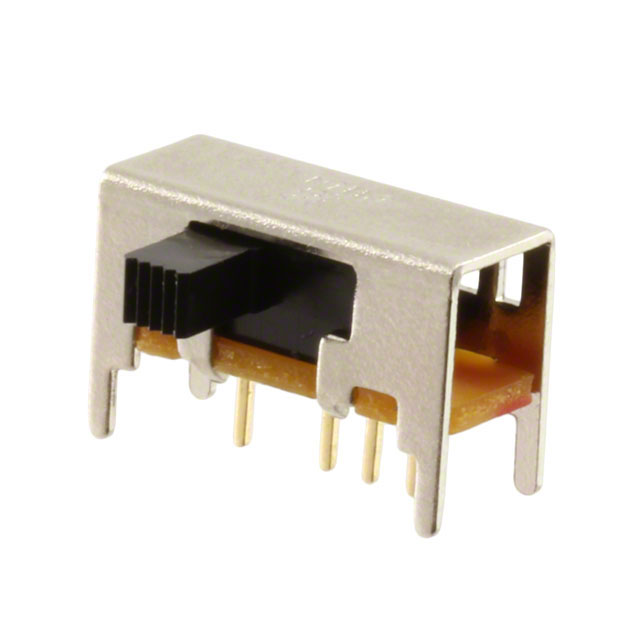

TE Connectivity AMP Connectors 1825256-6	600 gf	Polyoxymethylene (Acetal) (POM)	2 mm	15000 Cycles	15000 Cycles	85 °C	-20 ░C	Copper Alloy	0.4 VA	Gold	20 V	Shorting (MBB)	PC Pin	SP3T	On-On-On	Standard	4.5 mm	Right Angle Through Hole	Epoxy Sealed Terminals	20 V
TE Connectivity AMP Connectors 1825290-3						85 °C	-20 ░C	Copper Alloy	300 mA	Silver	125 V	Shorting (MBB)	PC Pin	DP3T	On-On-On	Standard	4.5 mm	Right Angle Through Hole	Epoxy Sealed Terminals

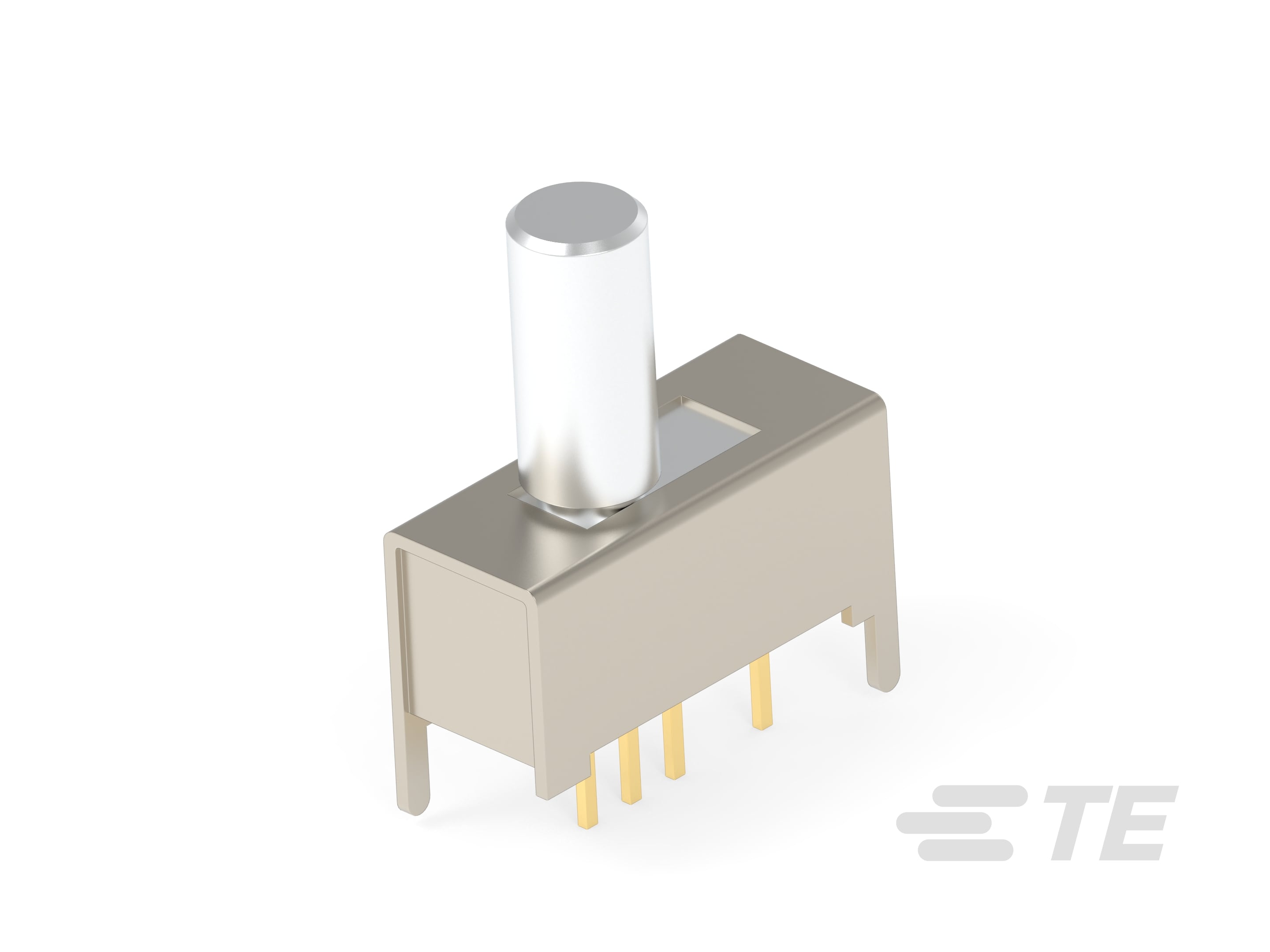

TE Connectivity AMP Connectors 1825255-7						85 °C	-20 ░C	Copper Alloy	300 mA	Silver	125 V	Shorting (MBB)	PC Pin	SP3T	On-On-On	Standard	4.5 mm	Through Hole	Epoxy Sealed Terminals

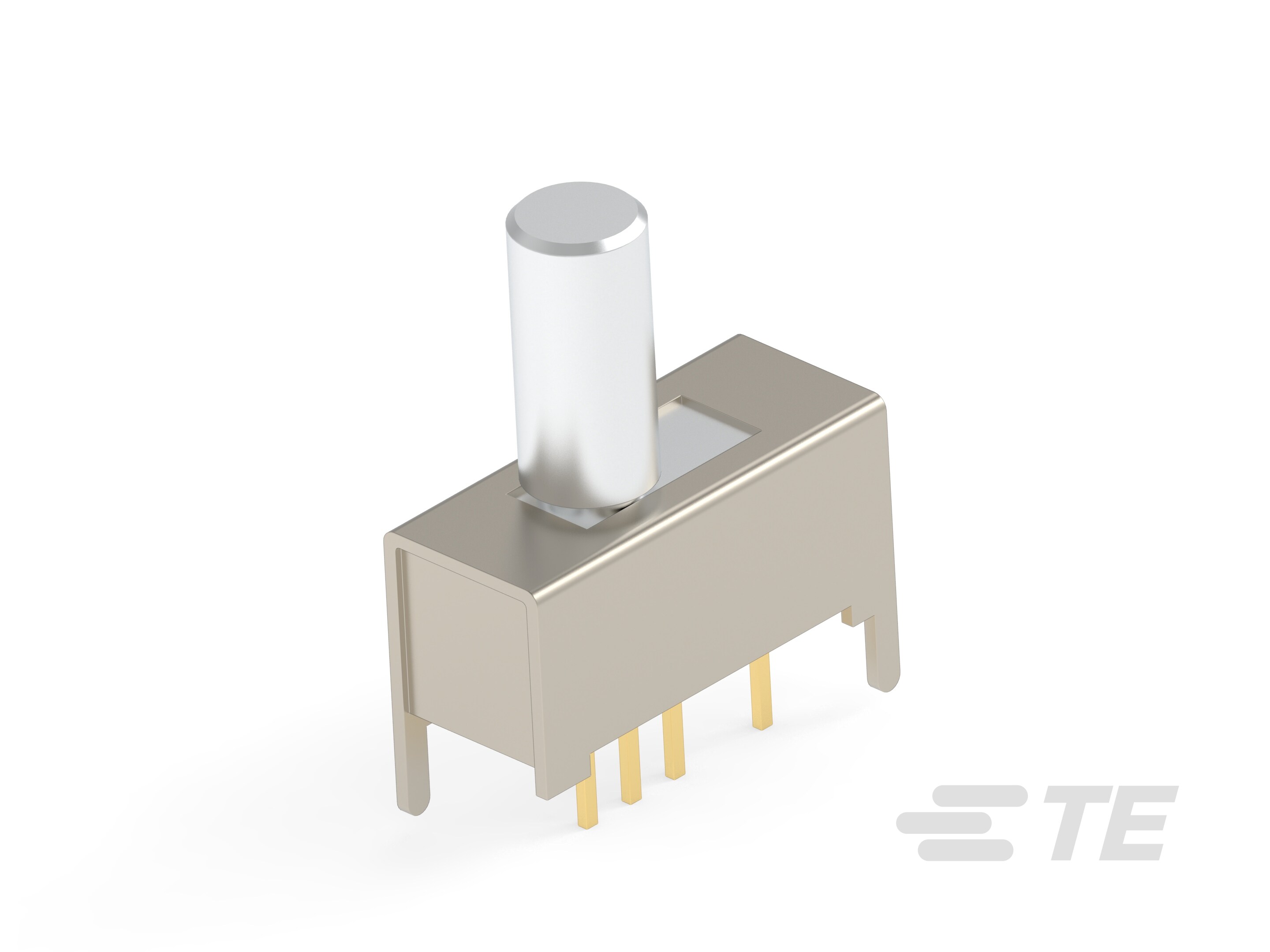

TE Connectivity AMP Connectors 1825255-8	600 gf	Polyoxymethylene (Acetal) (POM)	2 mm	15000 Cycles	15000 Cycles	85 °C	-20 ░C	Copper Alloy	0.4 VA	Gold	20 V	Shorting (MBB)	PC Pin	SP3T	On-On-On	Standard	4.5 mm	Through Hole	Epoxy Sealed Terminals	20 V
TE Connectivity AMP Connectors 1825255-1	600 gf	Polyoxymethylene (Acetal) (POM)	4 mm	15000 Cycles	15000 Cycles	85 °C	-20 ░C	Copper Alloy	300 mA	Silver	125 V	Non-Shorting (BBM)	PC Pin	SPDT	On-On	Standard	4.5 mm	Through Hole	Epoxy Sealed Terminals

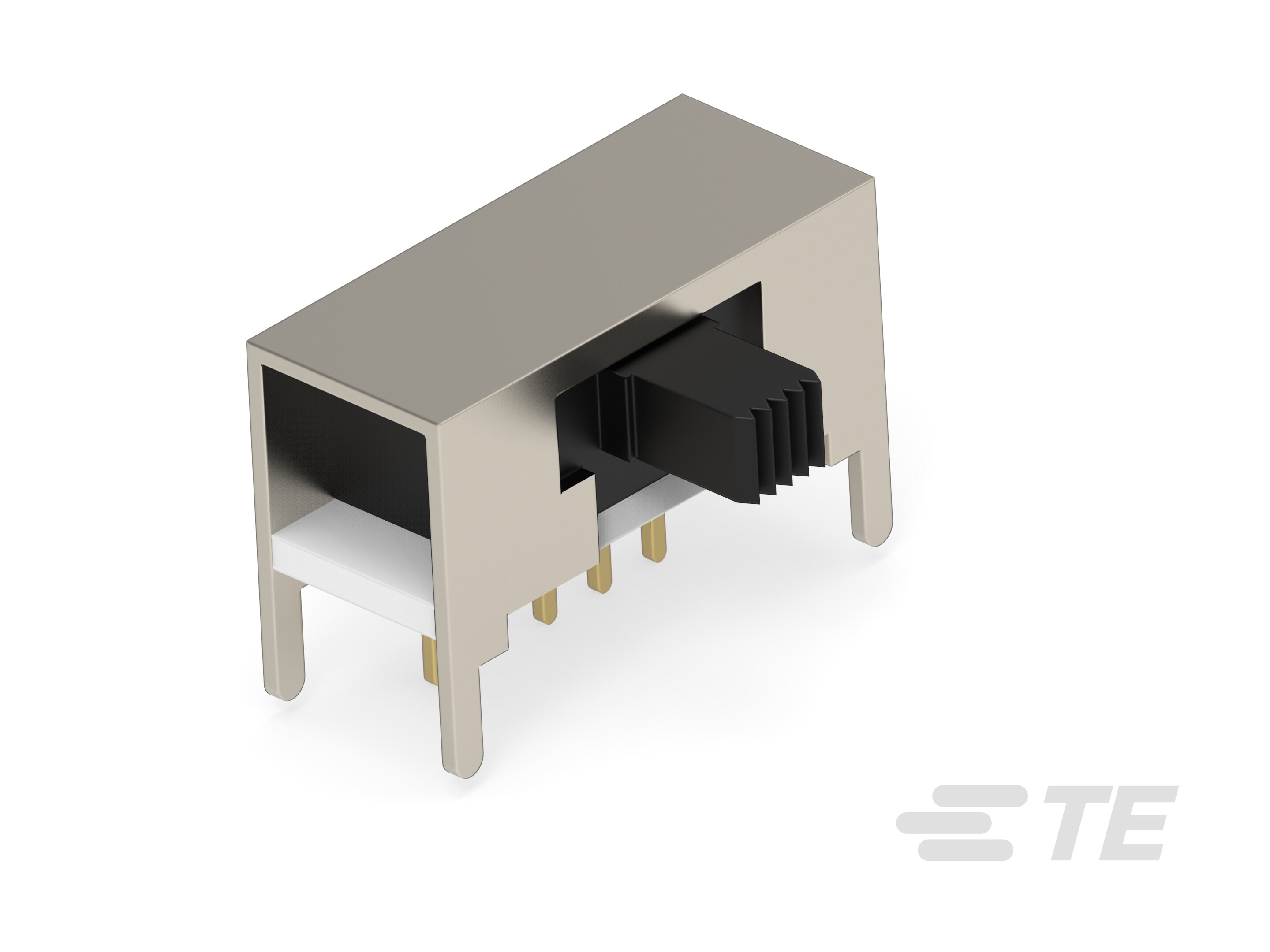

TE Connectivity AMP Connectors 1825256-3	600 gf	Polyoxymethylene (Acetal) (POM)	2 mm	15000 Cycles	15000 Cycles	85 °C	-20 ░C	Copper Alloy	300 mA	Silver	125 V	Shorting (MBB)	PC Pin	SP3T	On-On-On	Standard	4.5 mm	Right Angle Through Hole	Epoxy Sealed Terminals
TE Connectivity AMP Connectors 1825289-1						85 °C	-20 ░C	Copper Alloy	300 mA	Silver	125 V	Shorting (MBB)	PC Pin	DPDT	On-On	Standard	4.5 mm	Through Hole	Epoxy Sealed Terminals
