PM25S Series
Manufacturer: Lin Engineering
Beta
⌘K

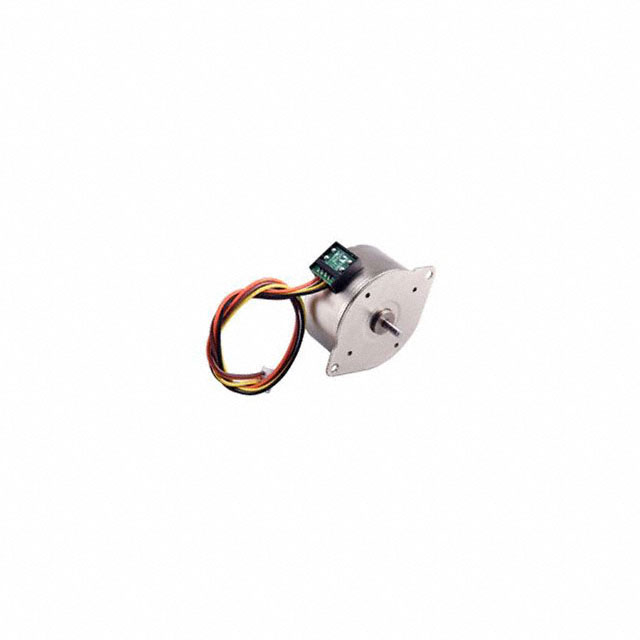

PERMANENT MAGNET STEPPER MOTOR
| Part | Rotor Inertia | Coil Resistance | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [diameter] | Voltage - Rated | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Step Angle | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lin Engineering | 0.54 gcm² | 16 Ohms | 25 mm | Round | 0.984 " | 12 VDC | 10 mm | 0.394 " | 320 mA | -20 ░C | 50 °C | Bipolar | 0.079 in | 2 mm | 7.5 ° | 1.26 in | 32 mm | 2.2 oz-in | 15.7 mNm |
