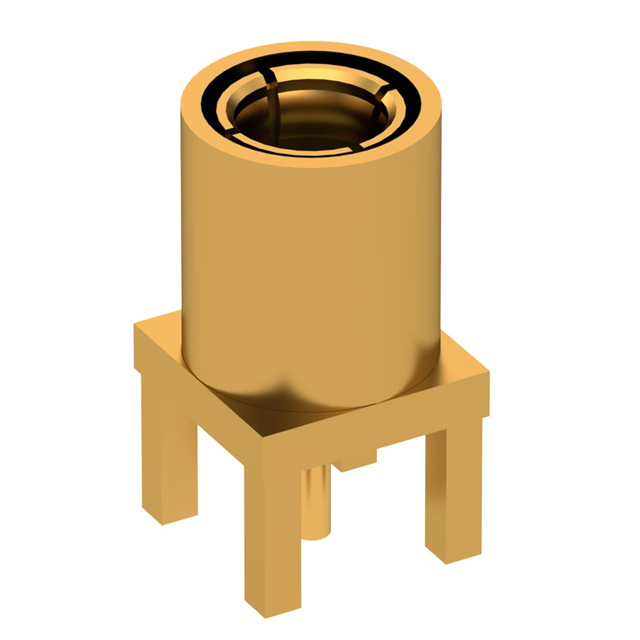

2025-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMB F STR BHD
| Part | Body Finish | Center Contact Plating | Mating Cycles | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Shield Termination | Connector Type | Mounting Type | Center Contact Material | Number of Ports | Impedance | Fastening Type | Housing Color | Contact Termination | Frequency - Max [Max] | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Gold | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | Solder | Female Socket Plug | Through Hole | Beryllium Copper | 1 | 50 Ohms | Snap-On | Gold | Solder | 4 GHz | SMB |
