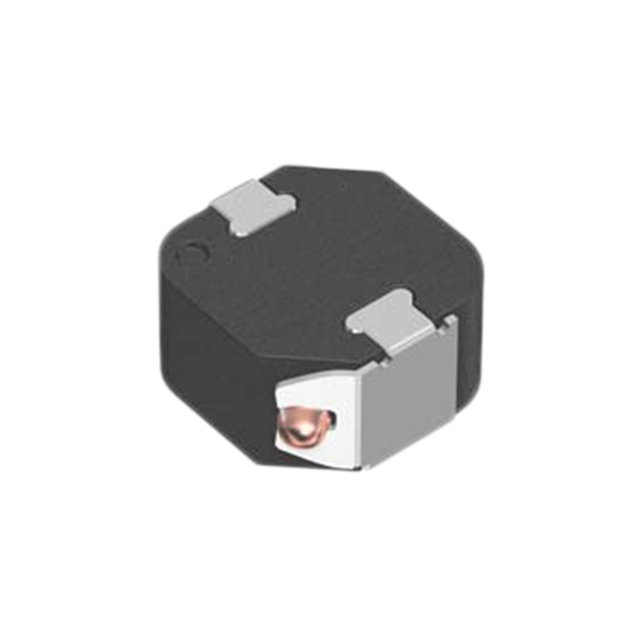

SPM-HZ Series

Catalog

POWER INDUCTORS - SMD 10UH 20% 24.31MOHMS AEC-Q200

Part	Package / Case	Inductance Frequency - Test	Type	Inductance	DC Resistance (DCR) [Max]	Shielding	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Tolerance	Material - Core	Current Rating (Amps)	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max)
TDK Corporation SPM10054T-100M-HZ	Nonstandard	100 kHz	Drum Core Wirewound	10 µH	24.31 mOhm	Shielded	4.6 A	125 °C	-40 C	AEC-Q200	20 %	Metal	10.6 A	Surface Mount	5.4 mm	0.213 in	10.7 mm	10 mm	0.394 in	0.421 in
TDK Corporation SPM10054T-1R5M-HZ	Nonstandard	100 kHz	Drum Core Wirewound	1.5 µH	5.39 mOhm	Shielded		125 °C	-40 C	AEC-Q200	20 %	Metal	20 A	Surface Mount	5.4 mm	0.213 in	10.7 mm	10 mm	0.394 in	0.421 in
TDK Corporation SPM6550T-R47M-HZ	Nonstandard	100 kHz	Drum Core Wirewound	470 nH	2.97 mOhm	Shielded	15.3 A	125 °C	-40 C	AEC-Q200	20 %	Metal	26.1 A	Surface Mount	5 mm	0.197 in	7.1 mm	6.5 mm	0.256 "	0.28 in
TDK Corporation SPM10040T-2R2M-HZ	Nonstandard	100 kHz	Drum Core Wirewound	2.2 µH	7.46 mOhm	Shielded	9.7 A	125 °C	-40 C	AEC-Q200	20 %	Metal	16.7 A	Surface Mount		0.157 in	10.7 mm	10 mm	0.394 in	0.421 in	4 mm
TDK Corporation SPM10040T-100M-HZ	Nonstandard	100 kHz	Drum Core Wirewound	10 µH	29.34 mOhm	Shielded	4.8 A	125 °C	-40 C	AEC-Q200	20 %	Metal	8 A	Surface Mount		0.157 in	10.7 mm	10 mm	0.394 in	0.421 in	4 mm
TDK Corporation SPM10040T-R68M-HZ	Nonstandard	100 kHz	Drum Core Wirewound	0.68 µH	2.67 mOhm	Shielded	19.5 A	125 °C	-40 C	AEC-Q200	20 %	Metal	30 A	Surface Mount		0.157 in	10.7 mm	10 mm	0.394 in	0.421 in	4 mm
