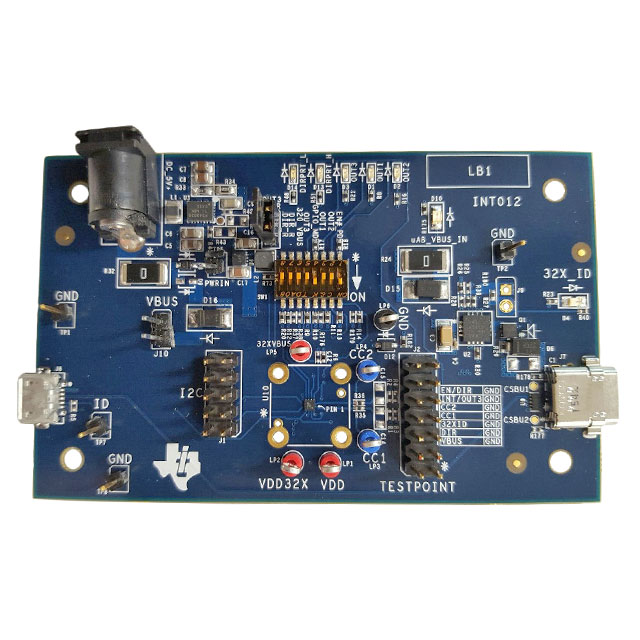

TUSB322I Series
USB Type-C Configuration Channel Logic and Port Control With VCONN
Manufacturer: Texas Instruments
Catalog
USB Type-C Configuration Channel Logic and Port Control With VCONN
Key Features
• USB Type-C™ Specification 1.1Backward Compatible with USB Type-C Specification 1.0Supports Up to 3 A of Current Advertisement and DetectionMode ConfigurationHost Only – DFP/Source (I2C Mode only)Device Only – UFP/Sink (I2C Mode only)Dual Role Port – DRPChannel Configuration (CC)Attach of USB Port DetectionCable Orientation DetectionRole DetectionType-C Current Mode (Default, Medium, High)+uVBUSDetectionI2C or GPIO ControlVCONN Support for Active CablesCable Detection and Direction Controlfor External SwitchesRole Configuration Control through I2CSupply Voltage: 4.5 V to 5.5 VLow Current ConsumptionIndustrial Temperature Range of –40 to 85°CUSB Type-C™ Specification 1.1Backward Compatible with USB Type-C Specification 1.0Supports Up to 3 A of Current Advertisement and DetectionMode ConfigurationHost Only – DFP/Source (I2C Mode only)Device Only – UFP/Sink (I2C Mode only)Dual Role Port – DRPChannel Configuration (CC)Attach of USB Port DetectionCable Orientation DetectionRole DetectionType-C Current Mode (Default, Medium, High)+uVBUSDetectionI2C or GPIO ControlVCONN Support for Active CablesCable Detection and Direction Controlfor External SwitchesRole Configuration Control through I2CSupply Voltage: 4.5 V to 5.5 VLow Current ConsumptionIndustrial Temperature Range of –40 to 85°C
Description
AI
The TUSB322I device enables USB Type-C ports with the configuration channel (CC) logic required for Type-C ecosystems. The TUSB322I device uses the CC pins to determine port attach and detach, cable orientation, role detection, and port control for Type-C current mode. The TUSB322I device can be configured as a downstream facing port (DFP), upstream facing port (UFP), or a dual role port (DRP), making the TUSB322I device ideal for any application.
The TUSB322I device alternates configuration as a DFP or UFP according to the Type-C Specifications. The CC logic block monitors the CC1 and CC2 pins for pullup or pulldown resistances to determine when a USB port has been attached, the orientation of the cable, and the role detected. The CC logic detects the Type-C current mode as default, medium, or high depending on the role detected. VBUSdetection is implemented to determine a successful attach in UFP and DRP modes. The TUSB322I will supply VCONN when an active cable is detected.
The device operates over a wide supply range and has low-power consumption. The TUSB322I device is available in industrial temperature ranges.
The TUSB322I device enables USB Type-C ports with the configuration channel (CC) logic required for Type-C ecosystems. The TUSB322I device uses the CC pins to determine port attach and detach, cable orientation, role detection, and port control for Type-C current mode. The TUSB322I device can be configured as a downstream facing port (DFP), upstream facing port (UFP), or a dual role port (DRP), making the TUSB322I device ideal for any application.
The TUSB322I device alternates configuration as a DFP or UFP according to the Type-C Specifications. The CC logic block monitors the CC1 and CC2 pins for pullup or pulldown resistances to determine when a USB port has been attached, the orientation of the cable, and the role detected. The CC logic detects the Type-C current mode as default, medium, or high depending on the role detected. VBUSdetection is implemented to determine a successful attach in UFP and DRP modes. The TUSB322I will supply VCONN when an active cable is detected.
The device operates over a wide supply range and has low-power consumption. The TUSB322I device is available in industrial temperature ranges.
