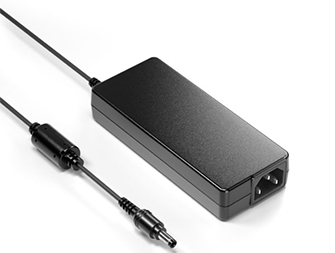

PUP90N3 Series
Desktop AC Adapters 90W/48V/1.88A ITE AC/DC DT C6 2.5x5.5x12
Manufacturer: TT Electronics/BI
Catalog
Desktop AC Adapters 90W/48V/1.88A ITE AC/DC DT C6 2.5x5.5x12
Beta
⌘K
Desktop AC Adapters 90W/48V/1.88A ITE AC/DC DT C6 2.5x5.5x12
Desktop AC Adapters 90W/48V/1.88A ITE AC/DC DT C6 2.5x5.5x12
Desktop AC Adapters 90W/48V/1.88A ITE AC/DC DT C6 2.5x5.5x12
| Part | Polarization | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Standard Number | Region Utilized | Voltage - Output | Input Type | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] | No Load Power Consumption | Power (Watts) | Form | Input Connector | Applications | Output Connector [x] | Output Connector | Output Connector [custom] | Output Connector [custom] | Cord Length | Cord Length | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | Positive Center | 40 °C | 0 °C | CE cULus GS TUV | 62368-1 | International | 24 V | Cord (Sold Separately) | CoC Tier 2 Level VI | 264 VAC | 90 VAC | 150 mW | 90 W | Desktop (Class I) | IEC 320-C14 | ITE (Commercial) | 12 mm | Barrel Plug | 5.5 mm | 2.5 mm | 1.5 m | 59 in | 65.1 mm | 5.52 " | 140.1 mm | 2.56 in | 25.4 mm | 1 in | 3.75 A |
 TT Electronics/BI | Positive Center | 40 °C | 0 °C | CE cULus GS TUV | 62368-1 | International | 48 V | Cord (Sold Separately) | CoC Tier 2 Level VI | 264 VAC | 90 VAC | 150 mW | 90 W | Desktop (Class I) | IEC 320-C14 | ITE (Commercial) | 12 mm | Barrel Plug | 5.5 mm | 2.5 mm | 1.5 m | 59 in | 65.1 mm | 5.52 " | 140.1 mm | 2.56 in | 25.4 mm | 1 in | 1.88 A |
