CP2 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

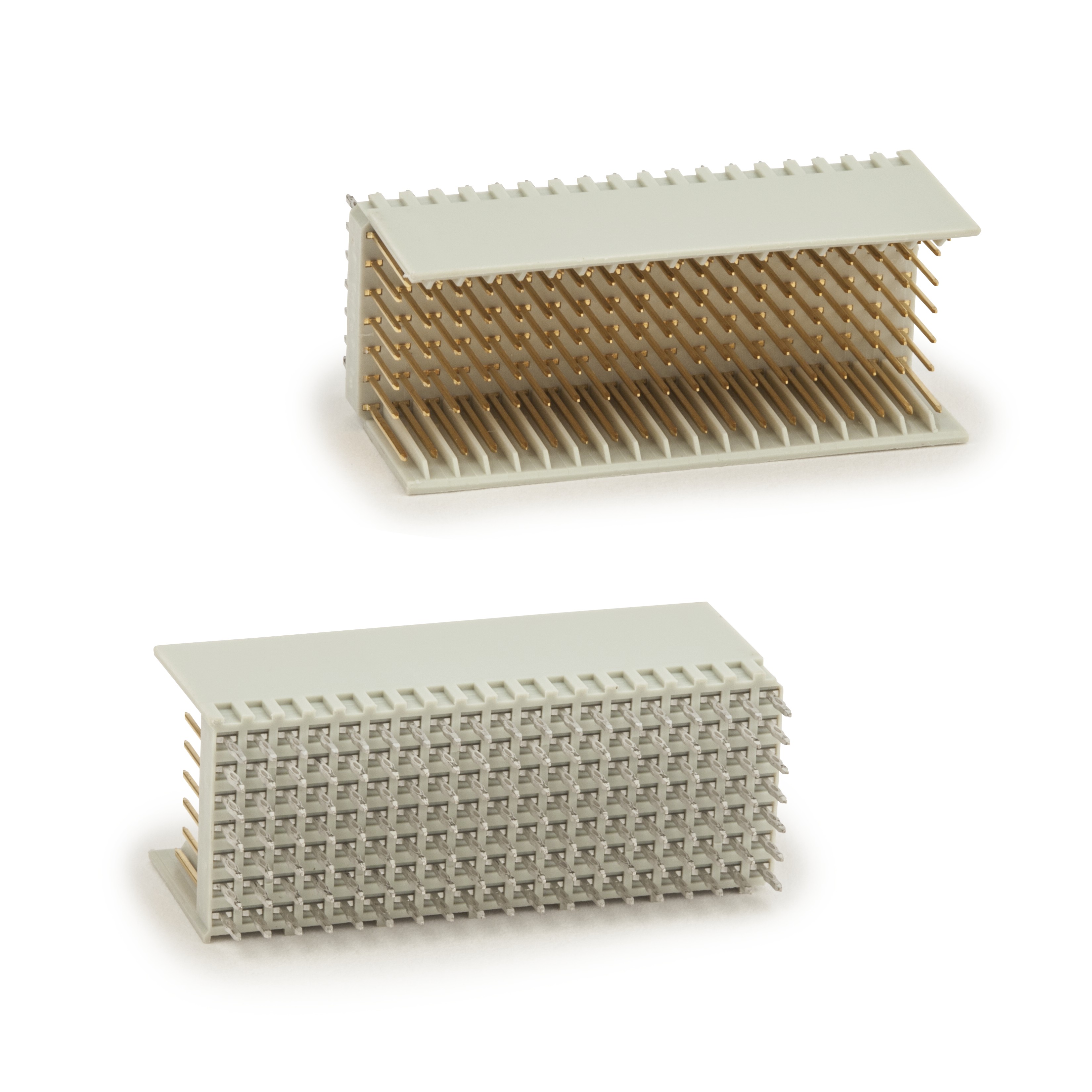

HARD METRIC CONNECTORS 125P PRESS-FIT HEADR
| Part | Pitch [x] | Pitch [x] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions Loaded | Number of Rows | Contact Finish | Connector Type | Connector Style | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Connector Usage | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Features | Number of Positions | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | 0.079 in | 2 mm | Through Hole | 30 Áin | 0.76 Ám | All | 5 + 2 | Gold | Header Male Pins | B 25 | 125 | 50 | 175 | CompactPCI Hot Swap | Press-Fit | |||||
 3M Electronic Specialty | 0.079 in | 2 mm | Through Hole | 10 Áin | 0.25 Ám | All | 5 + 2 | Gold | Header Male Pins | AB 22 | 110 | 44 | CompactPCI Hot Swap | Press-Fit | -55 C | 125 °C | ||||
 3M Electronic Specialty | 0.079 in | 2 mm | Right Angle Through Hole | 10 Áin | 0.25 Ám | All | Gold | Receptacle Female Sockets | A 22 | CompactPCI | Press-Fit | -55 C | 125 °C | Upper Shield | 110 | 5 |
