APFA3011 Series

Catalog

LED RGB CLEAR 6SMD R/A

Part	Package / Case	Color	Viewing Angle	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Configuration	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Lens Size [y]	Lens Size [x]	Height (Max) [Max] [z]	Supplier Device Package	Current - Test	Lens Color	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Lens Style	Lens Transparency

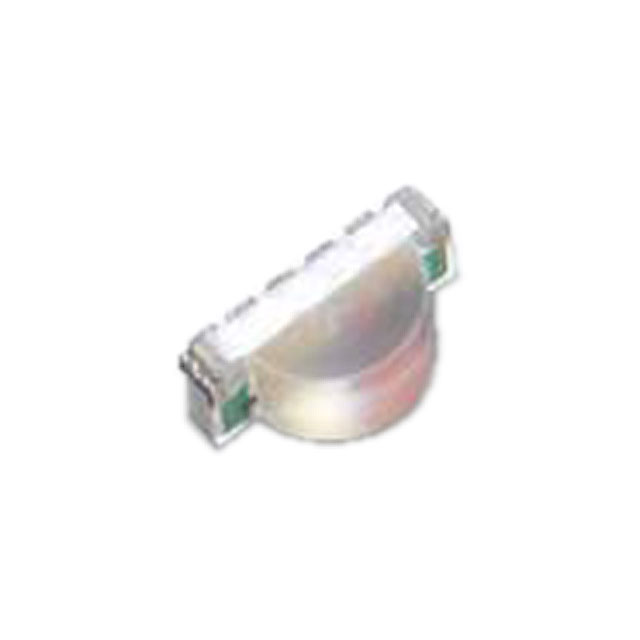

Kingbright APFA3011-AK13/F	6-SMD No Lead	Blue Green Red	150 °	Right Angle Surface Mount	3 mm	1.5 mm	Independent	110 mcd	780 mcd	410 mcd	520 nm	640 nm	465 nm	1 mm	2 mm	1.2 mm	6-SMD	20mA Blue 20mA Green 20mA Red	Colorless	2.2 V 3.2 V 3.3 V	470nm Blue 525nm Green 625nm Red	Rectangle with Domed Top	Clear
