enetSEAL+ Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CABLE ASSEMBLY, WIRE TO BOARD RECEPTACLE TO WIRE TO BOARD RECEPTACLE, 2 POSITIONS, 1 ROW, 1.5 M
| Part | Color | Cable Termination | Shielding | Number of Rows | Number of Positions | Connector Type | Length | Length | Length [x] | Length [x] | Fastening Type | Shrouding | Contact Shape | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Contact Material | Insulation Material | Number of Positions Loaded | Features | Insulation Color | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height | Insulation Height | Mounting Type | Termination | Contact Type | Style | Contact Finish - Mating | Pitch | Pitch | Convert From (Adapter End) | Convert To (Adapter End) | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

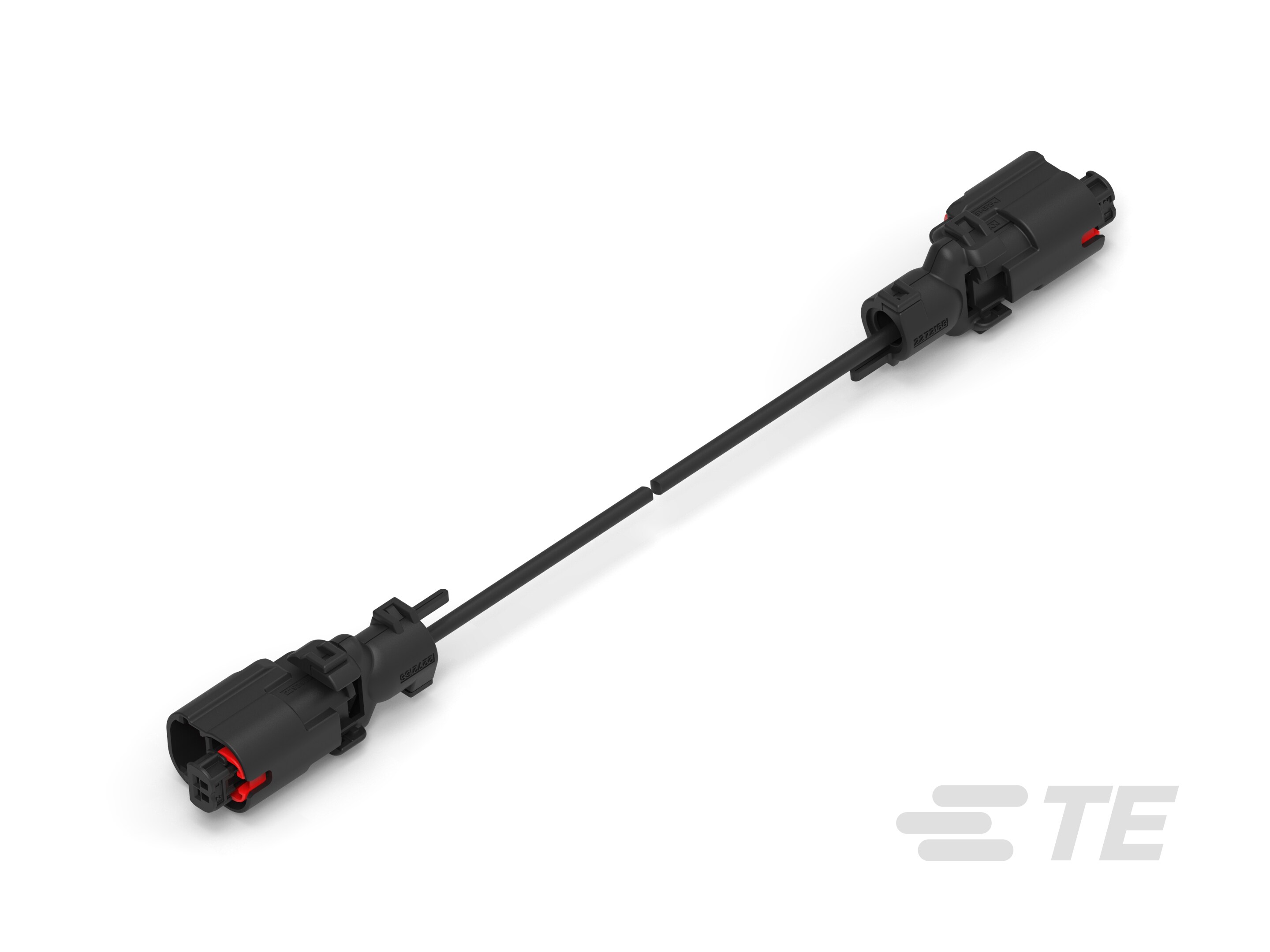

 TE Connectivity AMP Connectors | Black | Crimp | Unshielded | 1 | 2 | Socket to Socket | 4.92 ft | 1.5 m | |||||||||||||||||||||||||||||

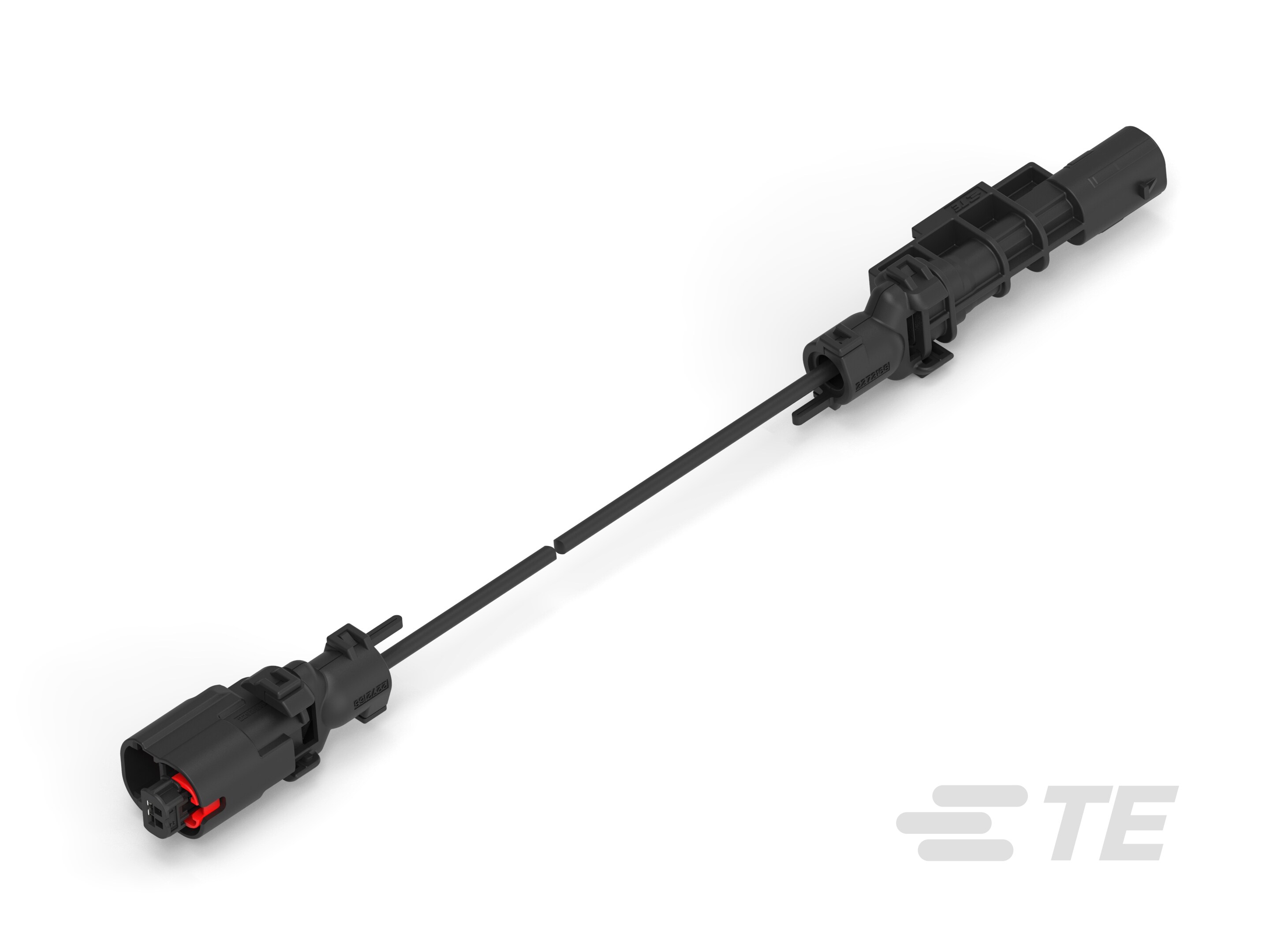

 TE Connectivity AMP Connectors | Black | Crimp | Unshielded | 1 | 2 | Socket to Plug | 9.8 ft | 3 m | |||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | 1 | 2 | Header | Locking Ramp | Shrouded - 4 Wall | Rectangular | Tin | 0.1 " | 2.54 mm | 10 A | Copper Alloy | Glass Filled Nylon Polyamide (PA) | All | Board Guide Mounting Flange | Black | 33 VAC/DC | 125 °C | -40 C | 1.018 " | 25.85 mm | Through Hole | Solder | Tab | Board to Cable/Wire | Gold | ||||||||||||
 TE Connectivity AMP Connectors | 1 | 2 | Flange Panel Mount | 0.1 " | 2.54 mm | Male Pins Plug | Plug Male Pins | ||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Black | Crimp | Unshielded | 1 | 2 | Socket to Plug | 4.92 ft | 1.5 m | |||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Mounting Clip | ||||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | 1 | 2 | Header | Locking Ramp | Shrouded - 4 Wall | Rectangular | Tin | 0.1 " | 2.54 mm | 10 A | Copper Alloy | Glass Filled Nylon Polyamide (PA) | All | Board Guide Mounting Flange | Black | 33 VAC/DC | 125 °C | -40 C | 1.018 " | 25.85 mm | Through Hole | Solder | Tab | Board to Cable/Wire | Gold | ||||||||||||
 TE Connectivity AMP Connectors | 1 | 2 | Header | Locking Ramp | Shrouded - 4 Wall | Rectangular | Tin | 0.1 " | 2.54 mm | 10 A | Copper Alloy | Glass Filled Nylon Polyamide (PA) | All | Board Guide Mounting Flange | Black | 33 VAC/DC | 125 °C | -40 C | 1.018 " | 25.85 mm | Through Hole | Solder | Tab | Board to Cable/Wire | Gold | ||||||||||||
 TE Connectivity AMP Connectors | Black | Crimp | Unshielded | 1 | 2 | Socket to Socket | 16.4 ft | 5 m | |||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Mounting Clip |
