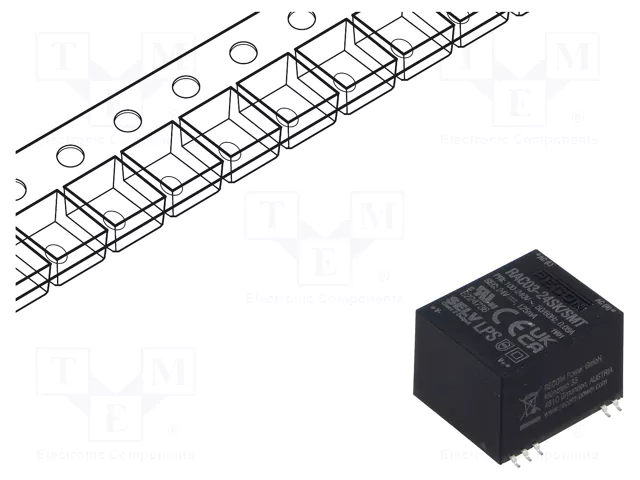

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE, INDUSTRIAL & HOUSEHOLD, 1 OUTPUT, 3 W, 24 VDC, 125 MA
| Part | Line Regulation | Load Regulation | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Features | Current - Output (Max) [Max] | Approval Agency | Voltage - Input [Min] | Voltage - Input [Max] | Applications | Standard Number | Package / Case | Mounting Type | Number of Outputs | Efficiency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 2.5 % | 2.5 % | 24 V | 80 ¯C | -40 °C | 3 W | PFC Universal Input | 125 mA | CE cURus FCC | 85 VAC 120 VDC | 265 VAC 370 VDC | Household Appliances ITE (Commercial) | 60335-1 62368-1 | 20-SMD Module 10 Leads | Surface Mount | 1 | 77 % | 27.7 mm | 20.6 mm | 1.09 in | 0.93 in | 23.7 mm | 0.81 in | Enclosed |
