AIF120 Series

Catalog

DC DC CONVERTER 3.3V 600W

Part	Number of Outputs	Mounting Type	Efficiency	Current - Output (Max) [Max]	Voltage - Isolation	Type	Power (Watts)	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Features	Voltage - Input (Max) [Max]
ARTESYN / Advanced Energy AIF120F300-L	1	Through Hole	87 %	120 A	3000 V	Isolated Module Digital	600 W	250 V	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	3.3 V	ITE (Commercial)	-20 ░C	100 °C	10-DIP Module Full Brick	OCP OTP OVP Remote On/Off	420 V
ARTESYN / Advanced Energy AIF120F300N-NTL	1	Through Hole	87 %	120 A		Non-Isolated PoL Module	600 W	250 V	2.4 in	4.6 "	14 mm	0.55 in	61 mm	116.8 mm	3.3 V	ITE (Commercial)	-20 ░C	100 °C	Module	OCP OVP Remote On/Off	420 V

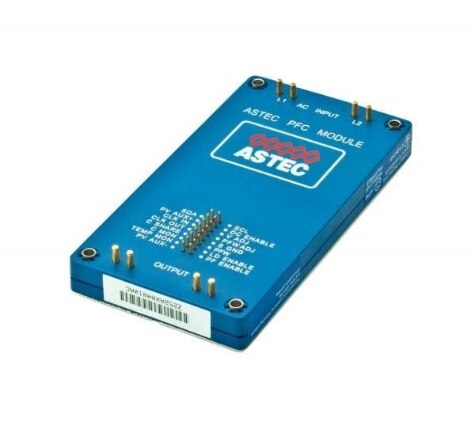

ARTESYN / Advanced Energy AIF120Y300N-NTL	1	Through Hole	80 %	120 A		Non-Isolated PoL Module	600 W	250 V	2.4 in	4.6 "	14 mm	0.55 in	61 mm	116.8 mm	1.8 V	ITE (Commercial)	-20 ░C	100 °C	Module	OCP OVP Remote On/Off	420 V
ARTESYN / Advanced Energy AIF120F300N-L	1	Through Hole	87 %	120 A		Isolated Module	600 W	250 V	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	3.3 V	ITE (Commercial)	-20 ░C	100 °C	Module	OCP OVP Remote On/Off	420 V
ARTESYN / Advanced Energy AIF120Y300N-L	1	Through Hole	80 %	120 A		Isolated Module	600 W	250 V	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	1.8 V	ITE (Commercial)	-20 ░C	100 °C	Module	OCP OVP Remote On/Off	420 V
